Material: 1XXX, 2XXX, 3XXX, 4XXX, 5XXX, 6XXX, 7XXX, 8XXX series

Ingot width: 900-1900

Ingot thickness: 300-650mm

Ingot length: 3800-6000mm

Ingot weight: max. 19000kg

Output product

Coil width: 900-1900mm(edge without trimming) 800-1800mm (edge trimmed)

Coil thickness: 3-18mm

Coil OD: max. 2400mm

Coil ID: 610mm

Coil weight: max. 19000kg

Coil temperature: 280-360 ℃

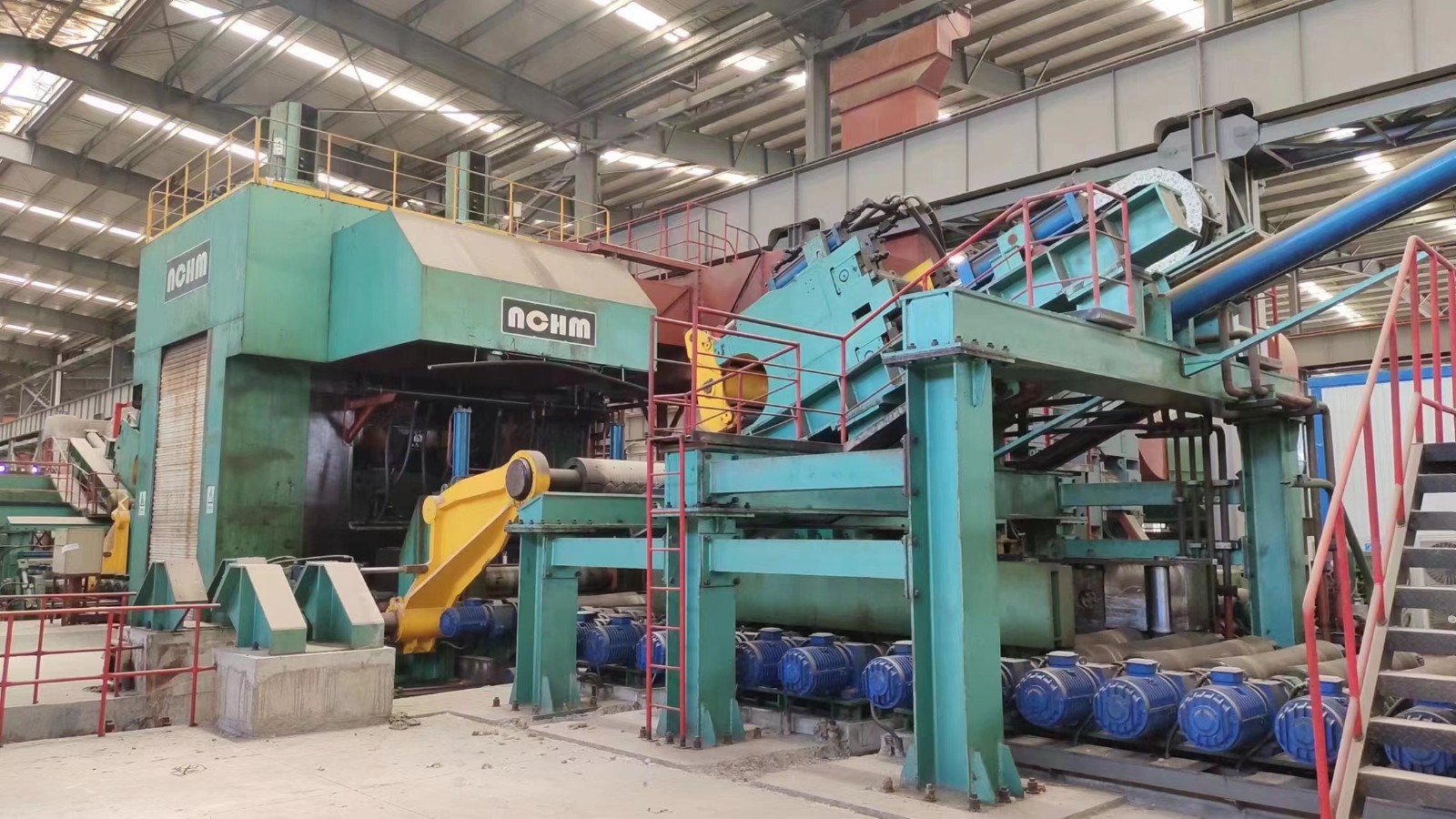

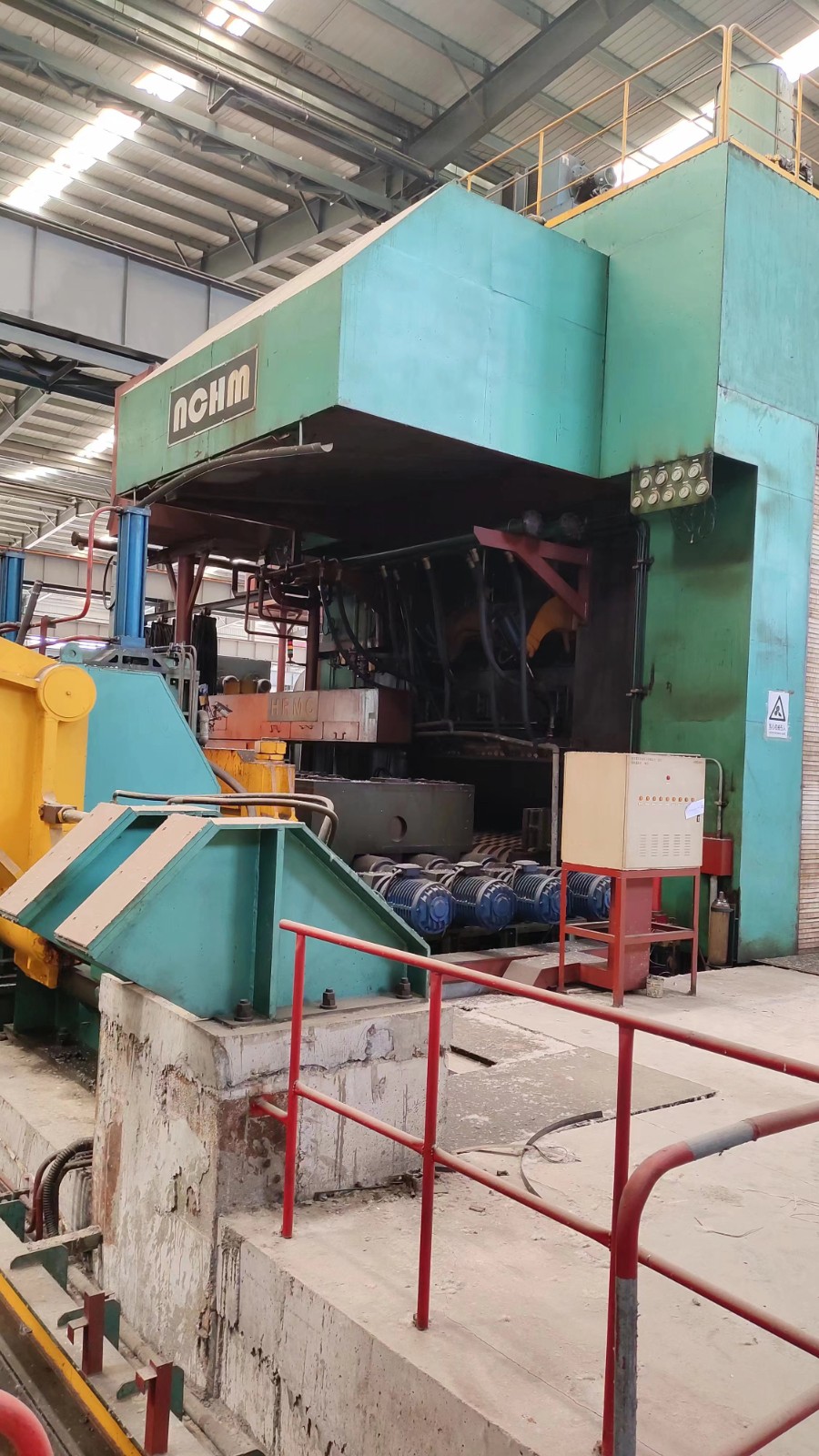

Machine type: single stand, double recoiler, 4hi reverse hot rolling mill

Rolling force: 4000 T

Mill openness: 700mm

Pinch roller openness: 900mm

Pusher openness: 850-2300mm

Rolling torque: 240 T m

Work roll line speed: max. 240m/min

Recoiling thickness: max. pure aluminum 20mm, aluminum alloy 18mm

Recoiling tension: 2400-28000kg

Work roll: OD930/OD880x2300mm

Backup roll: OD1500/OD1400x2200mm

Electric pressing down motor power: 2-75kw

Electric pressing down speed: 25 mm/s

Plus /minus roll bending force: ±360 T

Vertical rolling mill diameter: OD700-750mm

Vertical rolling mill rolling force: 7000 KN

Vertical roller openness: 700mm

Heavy-duty shear speed: 2 times/ min

Thin-coil shear coil thickness: max. 60mm (3000 series, 350 ℃)

Thin-coil shear speed: 3-5 times /min

Thin-coil shear openness: 500mm

Crop shear coil thickness: 5-12mm

Crop shear cutting coil width: 800-1850mm

Crop shear openness: 800-2300mm

Edge trimming width: 2x50mm

Pressing down percentage: 10%-50%

Forward slip rate: ≤15%

Recoiling tension accuracy: At steady state ±1%, During acceleration and deceleration 0.5%

Rolling line elevation: +800mm

Rolling line direction: loading side is on the left

Recoiling type: down recoiler

Online temperature measurement positions: 7

Non-touching type: both sides of the rolling mill

Touching type: heavy-duty shear, thin-coil shear, coil loading conveyor

Rolling line total length: approximate 220 + 146 meter

Coil thickness accuracy: Longitudinal thickness ≤ ±1.2%

Transverse thickness ≤±0.8%

Coil center buckle: 0-1%

Thickness change rate: ±0.5%/ 5 meter

Center buckle change rate: ±0.2%/ 5 meter

Lateral bending accuracy: ≤5mm /10 meter (total lateral bending ≤50mm)

Recoiling quality: Finished product cross-section staggered layer ≤3mm (does not include 3-5 laps from head to tail, with 5 inside and 2 outside)

Finished product cross-section tower shape ≤6mm (does not include 3-5 laps from head to tail)

Main motor: 4x2000kw=8000kw

Recoiler motor: 2x2x590kw=2360kw

Vertical mill motor: 750kw

Recoiling speed: max. 276m/min
