Scope of supply:

Coil supports at the inlet side 3 sets

Coil car at the entrance side 1 set

Sleeve conveyor 1 set

Uncoiler 1 set

Guide roller device for side deflection 1 set

Inlet side tensioning device 1 set

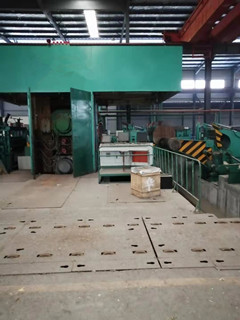

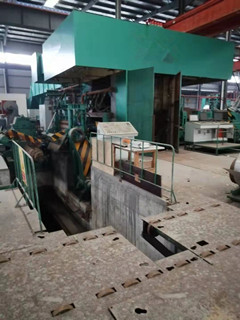

Main engine of quadruple mill 1 set

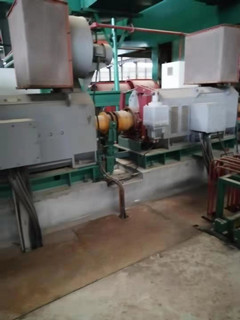

Mill drive 1set

Roll changing device 1 set

Out side tensioning device 1 set

Flattening roller device 1 set

Recoiler  1 set

Coil car at the exit 1 set

Coil support on the outside 3 sets

Hydraulic system 1 set

Pneumatic system 1 set

Rolling oil cooling system 1 set

Thin oil lubricating device 2 sets

Smoke fan device 1 set

CO2 fire extinguishing system 1 set

X-ray thickness gauge (purchased by the user) 1 set

AFC / AGC system (purchased by users) 1 set

Electrical system  1 set

Equipment anchor bolt 1 set

Main parameters:

Material Aluminum alloy

Working roll φ 260 * 1650mm

Support roll φ 700 * 1570mm

Threading speed: 10-20m / min (adjustable)

Coil width: 800-1450mm

Max coil weight: 11000kg

Max coil outer diameter: 2000mm

Coil inner diameter: φ 505 / φ 565mm

Max incoming material thickness: 0.5mm

Min finished thickness: 0.015mm

Max speed of working roll: 1500m / min
