Scope of supply:

Pouring system (provided by the user)

Two channel titanium wire feeder

Feed mechanism of feed nozzle

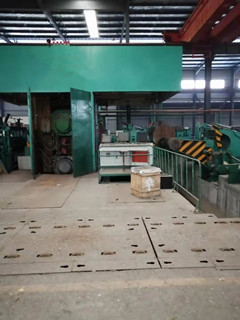

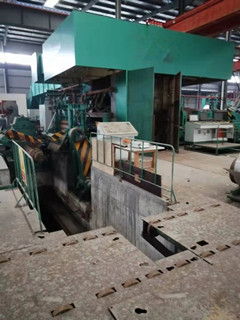

Main engine of casting mill

Casting roll

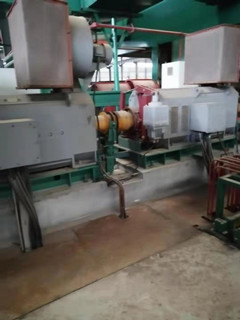

Casting roll drive system

Pressing cylinder

Roll gap adjustment device

Roll changing device

Roller lubrication operation mechanism

Hydraulic translation shear

Guide roller support plate

Recoiler

Uncoiler car

Hydraulic system

Cooling water circulation system (optional)

Electrical system

Main parameters:

Material: Aluminum alloy

Roll size:φ 840 * 1700mm

Thickness: 6-10 mm

Max coil width 1500mm

Max coil weight: 12500kg

Max coil outer diameter: 2000mm

Coil inner diameter: 508mm

Diameter of lower oil cylinder: φ560mm (pressure 25MPa)

Max rolling force 12000KN

Max speed 3m/min

Max coiler tension 120KN

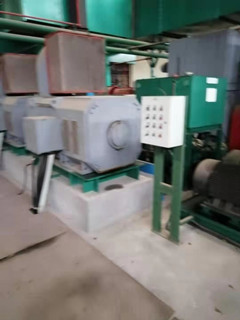

Casting mill drive motor 2 * 40.5KW

Coiler drive motor 13KW

Shear force of hydraulic cylinder 280KN
