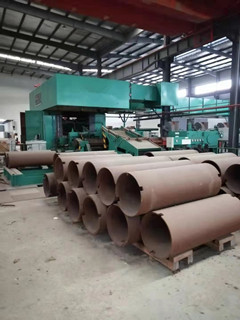

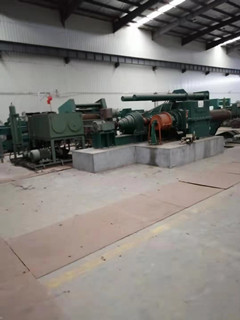

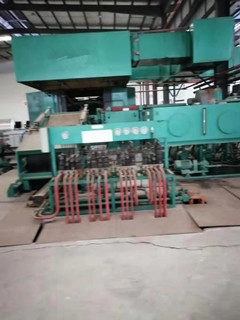

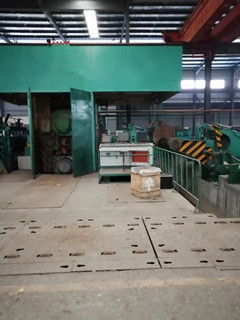

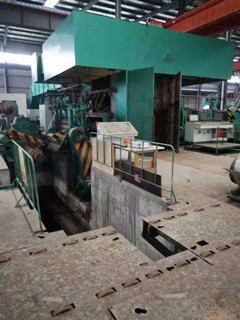

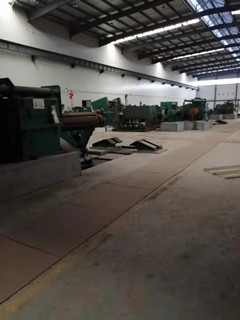

Main rolling mill

Driving device

Roll changing device

Inlet device

Outlet device

Uncoiler

Recoiler

Belt wrapper

Roll-in device

Roll-out device

Coil diameter measuring device

Press on cylinder removal device

Support roll change support

Sleeve removal device

Upper sleeve device

Coil storage and transportation device

Roller cooling and lubrication system

Press on roll bending system

General operating system

Thin oil lubrication system

Pneumatic system

Oil mist lubrication system

Rolling oil mist recovery device

CO2 fire extinguishing system

Plate filter

Electrical equipment

Main parameters:

Material:Aluminum, Aluminum alloy

Coil width:800-1500mm

Thickness of incoming material: 6-8mm

Thickness of finished product:0.1-2.0mm

Max coil weight:12000kg

Coil inner diameter:φ 510mm

Max coil outer diameter φ 2000mm

Max rolling speed 1000m / min
