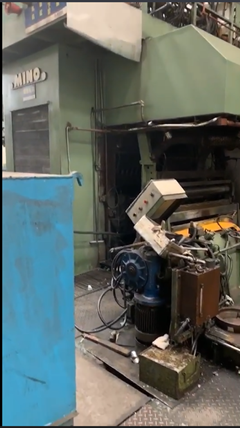

Used Mino 1100mm Aluminum foil rolling mill
Used Mino 1100mm Aluminum foil rolling mill.(Material:Aluminum) Written time is January 13,2020.- product description
- Technical Parameters
Material:Aluminum
Shearing mode:Disc shearing
Inlet thickness:0.25-0.6mm
Outlet thickness:0.006-0.5mm
Coil width:600-1100mm
Coil OD:Max 1300mm
Coil weight:Max 3000kg
Speed:Max 800m/min
Uncoiler tension:25-1000kg
Recoiler tension:25-500kg
Max rolling force:300tons
Main motor:500KW
Uncoiler motor:37KW
Recoiler motor:37KW
Roller surface width:1250mm
Brand:Mino
If you want to quote or further information on this product, please fill out the form below.
