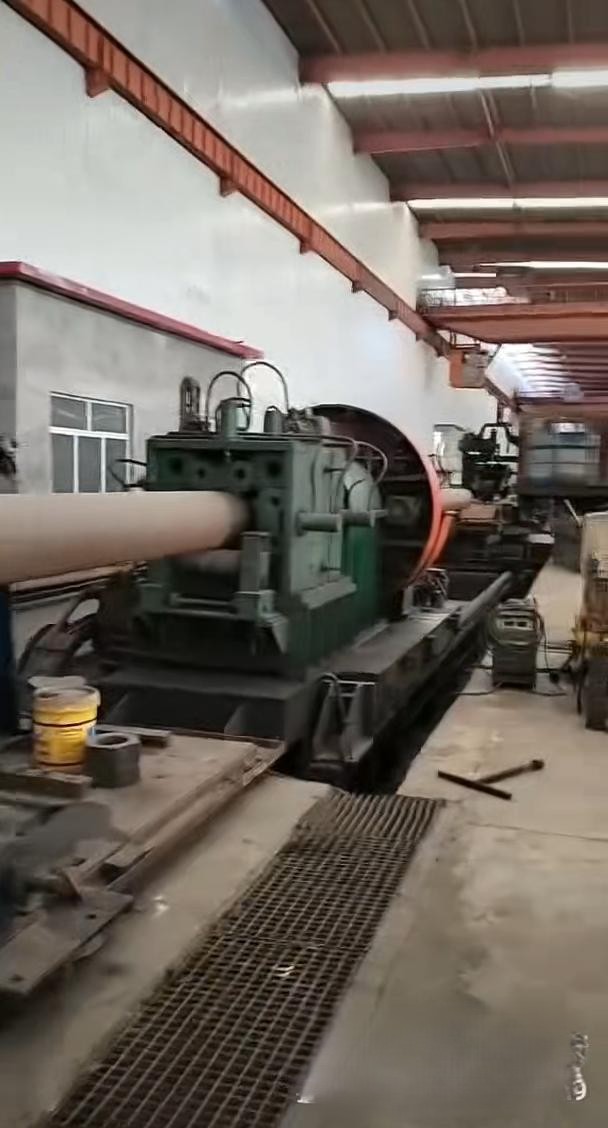

Used OD 20inch ERW tubemill in Shanghai, China

Product No.: 647, written on: December 16, 2025

product description
Technical Parameters

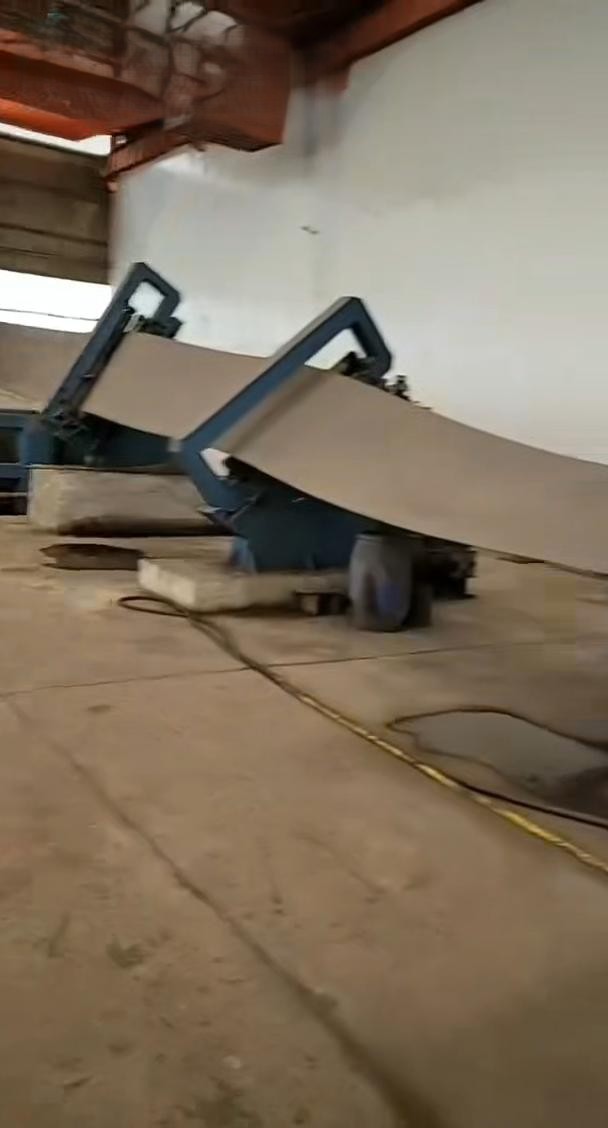

1) Reverse uncoiler with straightening press.

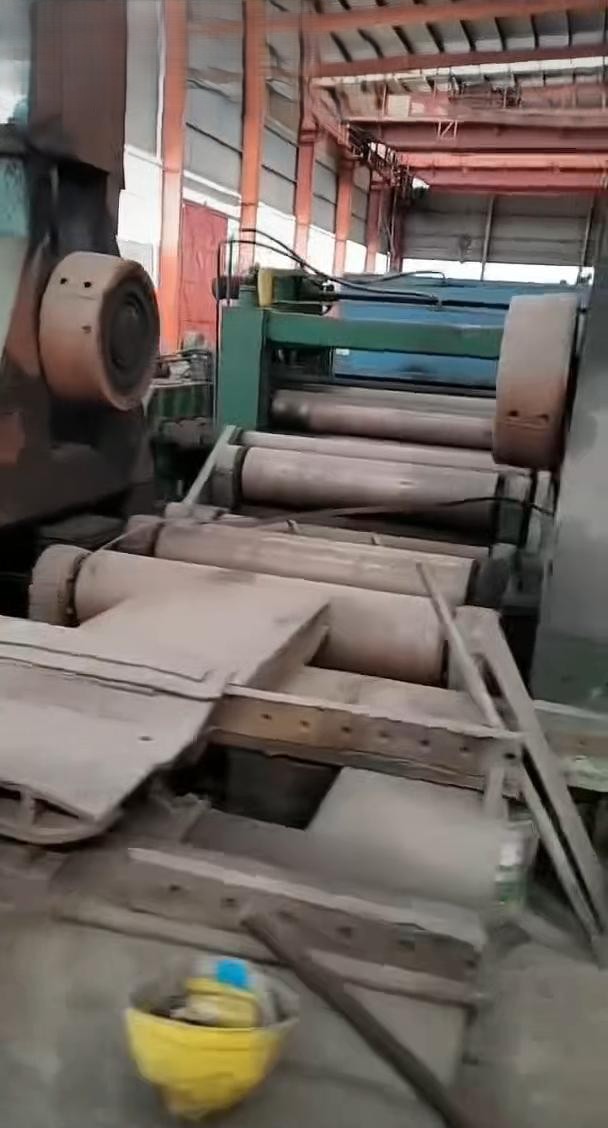

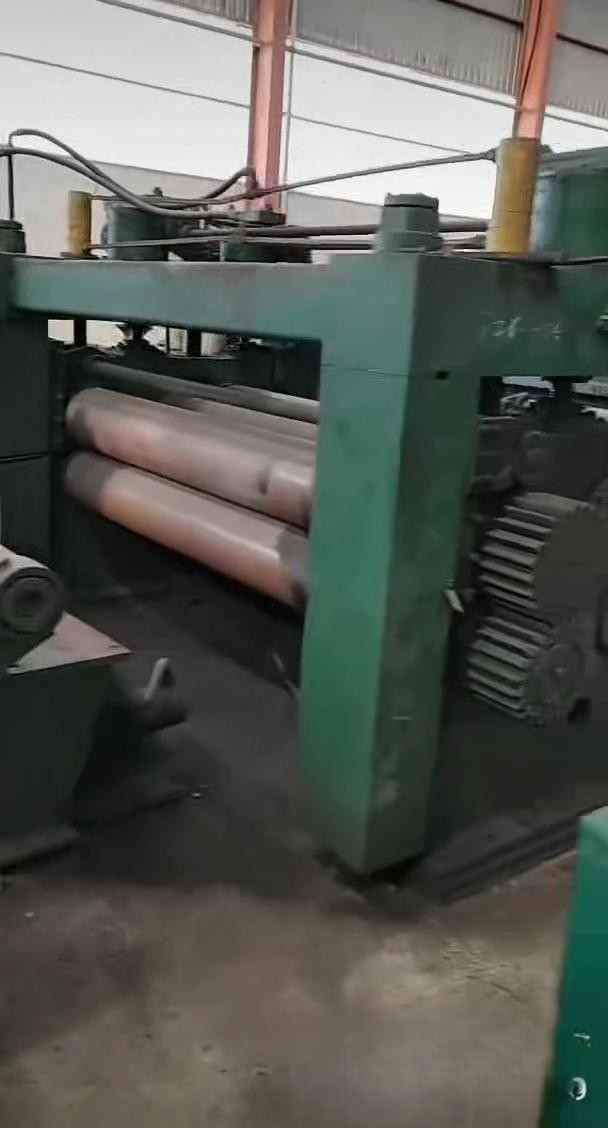

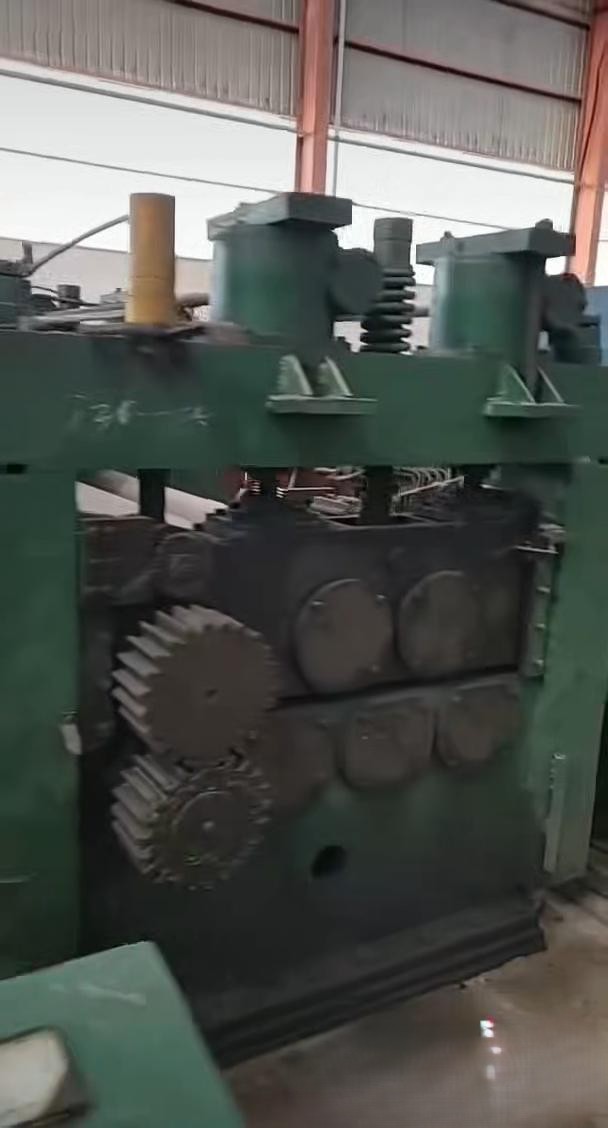

2) Two-roll pinch feed and five-roll leveler.

3) Shearing and butt welding station.

4) Spiral accumulator.

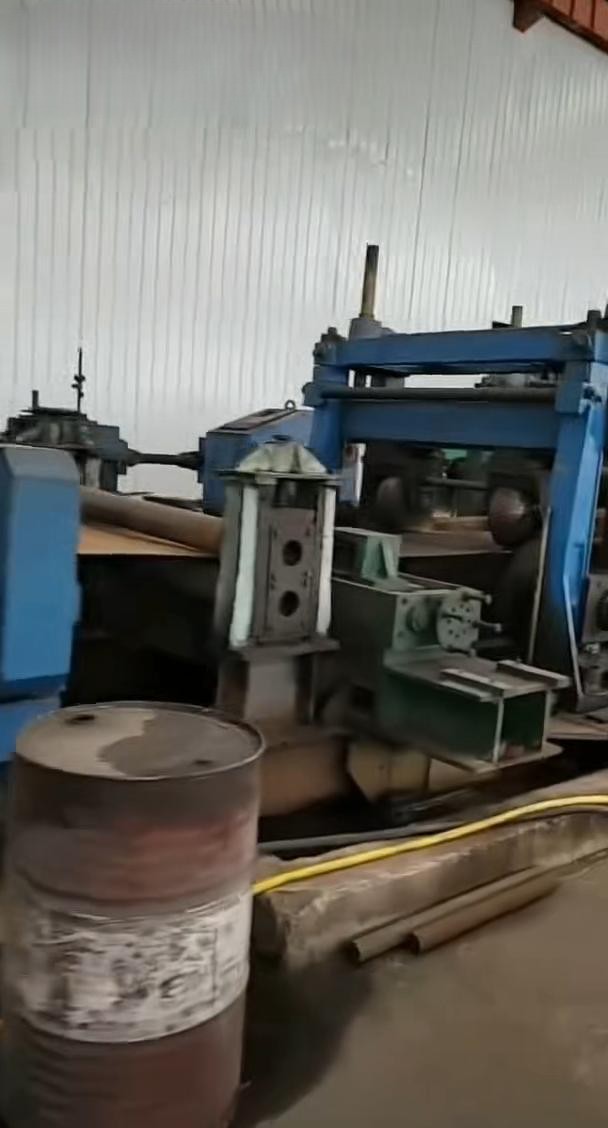

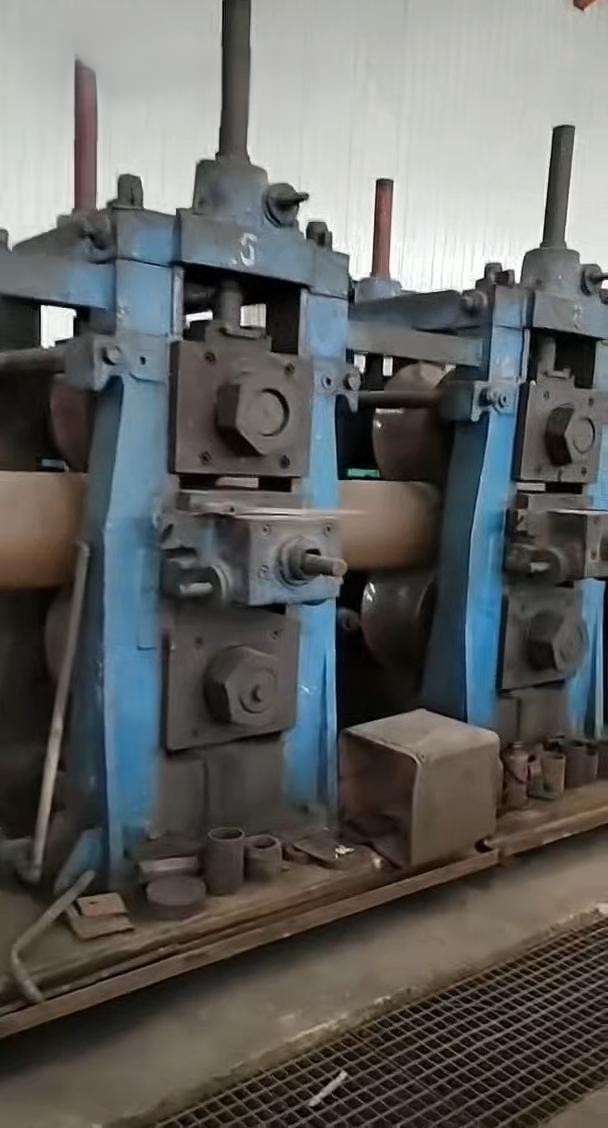

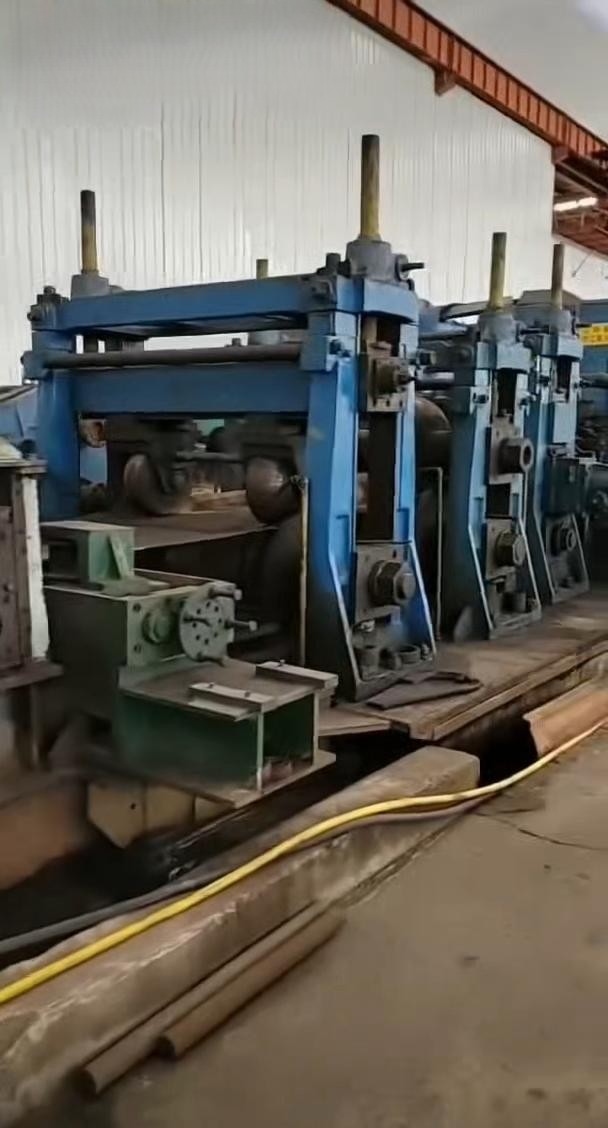

5) Main unit section: FFX forming method, resistance welding with squeeze action, equipped with air cooling roller table; sizing section with 7 stands of flat rolls and 1 Turk's head.

6) Solid-state high-frequency power supply, 1000 kW.

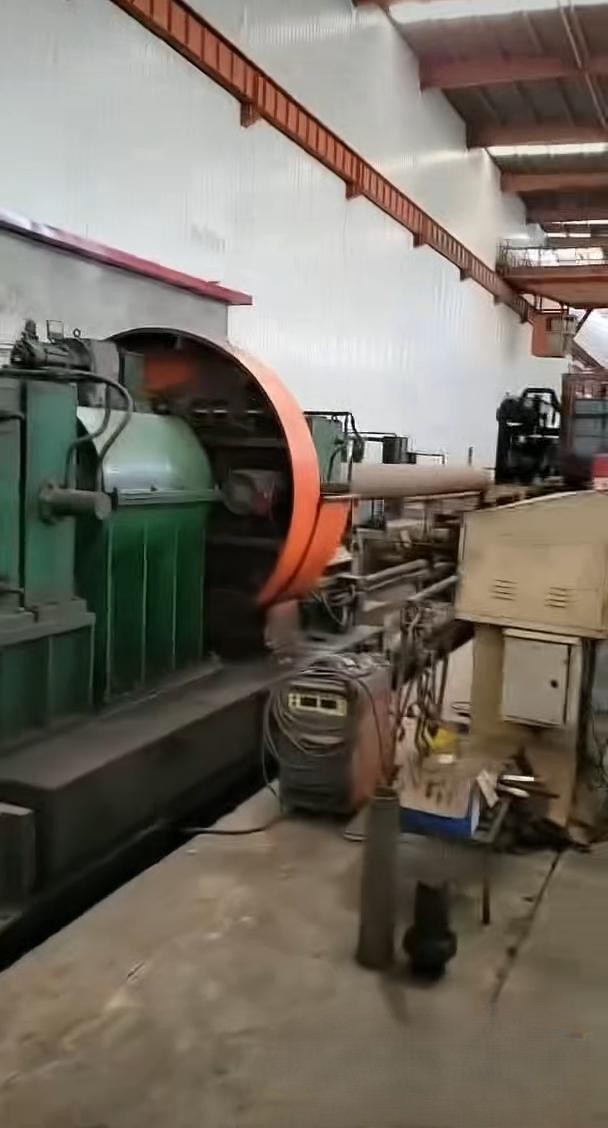

7) Profiling milling saw.

8) Discharge roller table.

9) Round pipe molds available from diameter 219 mm to 530 mm, covering 12 specifications and models.

12 Round pipe size: 219/245/273/325 /355/377/406/426/457/478/508/530 mm

Installed in 2013, Stop running in 2024.

Machine is still online
