used 2010 Chinese brand erw tubemill max OD 26 in (660mm)

No: 693 Written in:July 8,2026

product description
Technical Parameters

Machine was made in China, in 2010. Machine stopped running in 2026 March.

A Technical parameter

1.Specifications

Technical standards: API 5L/API 5CT GB/T 3091 JIS G3452 JIS G3444 JIS G3445 ASTM A513 EN 10219

2. Steel grade

Line pipe: A, B, X42, X46, X52, X56, X60, X65，X70,X80

Petroleum casing pipe: H40, J55, K55, N80

Structural pipe: Q215, Q235, Q345, 20#

3. Raw material

OD: Ø1500mm～Ø2300mm

ID: Ø760mm

Coil weight: Max. 35 t

Strip width: 680mm～2100mm

Strip thickness:: 5.0mm～22.0mm

Steel grade: max. J55, K55, X80 and carbon structural steel, etc. (≦400N/mm²).

Diameter(mm)

5.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

15.0

18.0

20.0

22.0

10 3/4

273

X80

X70

12 3/4

325

X80

X70

377

X80

X70

X60

X50

406

X80

X70

X60

X50

530

X80

X70

X60

X50

610

X80

X70

X60

X50

660

X80

X70

X60

X50

4 Finished product specifications

Outer diameter: Ø 273mm～Ø 660.0mm

Cut-to-length: 11.5~12.0m

Welding speed: 12~30m/min

Equipment	Qty

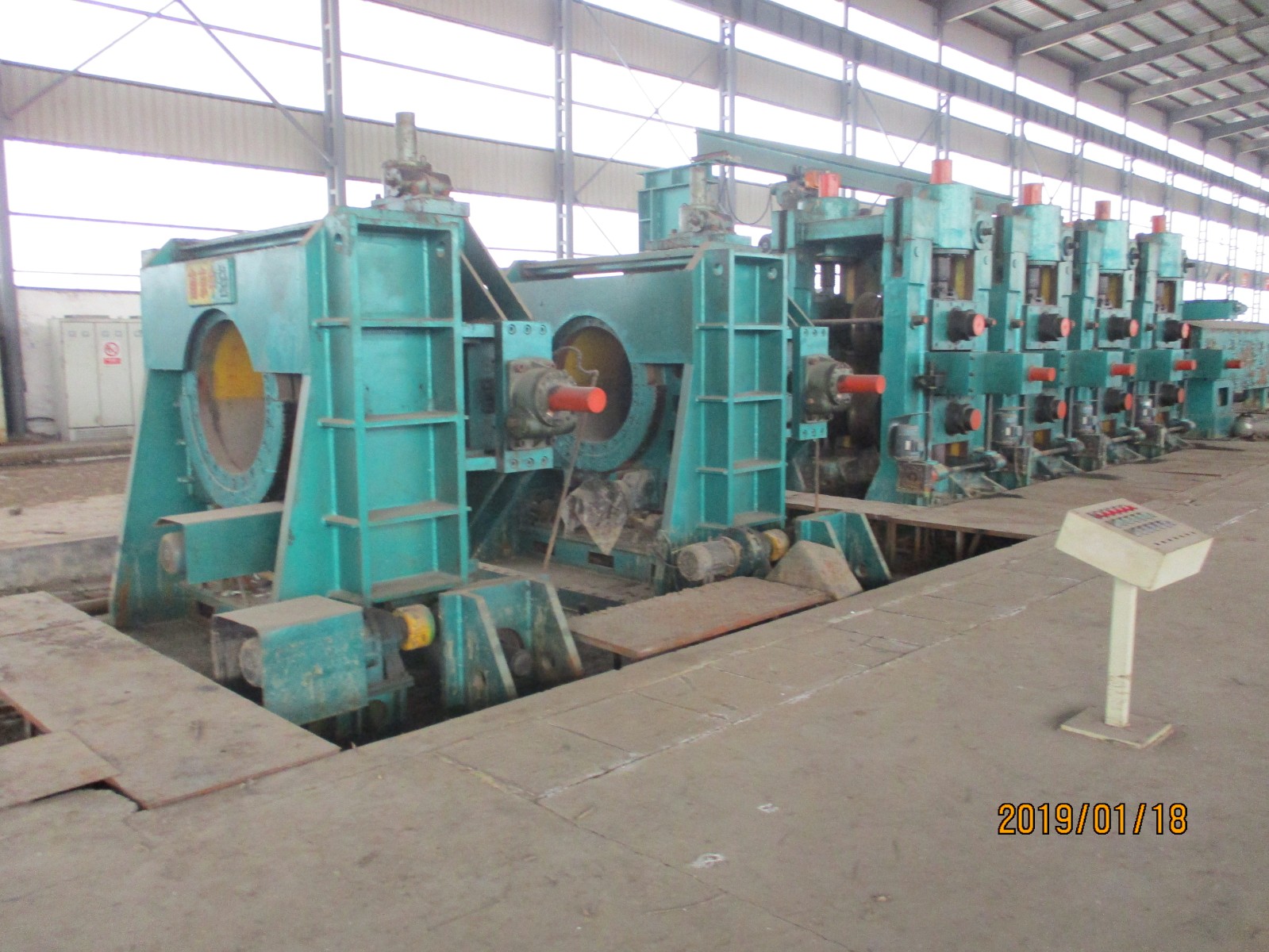

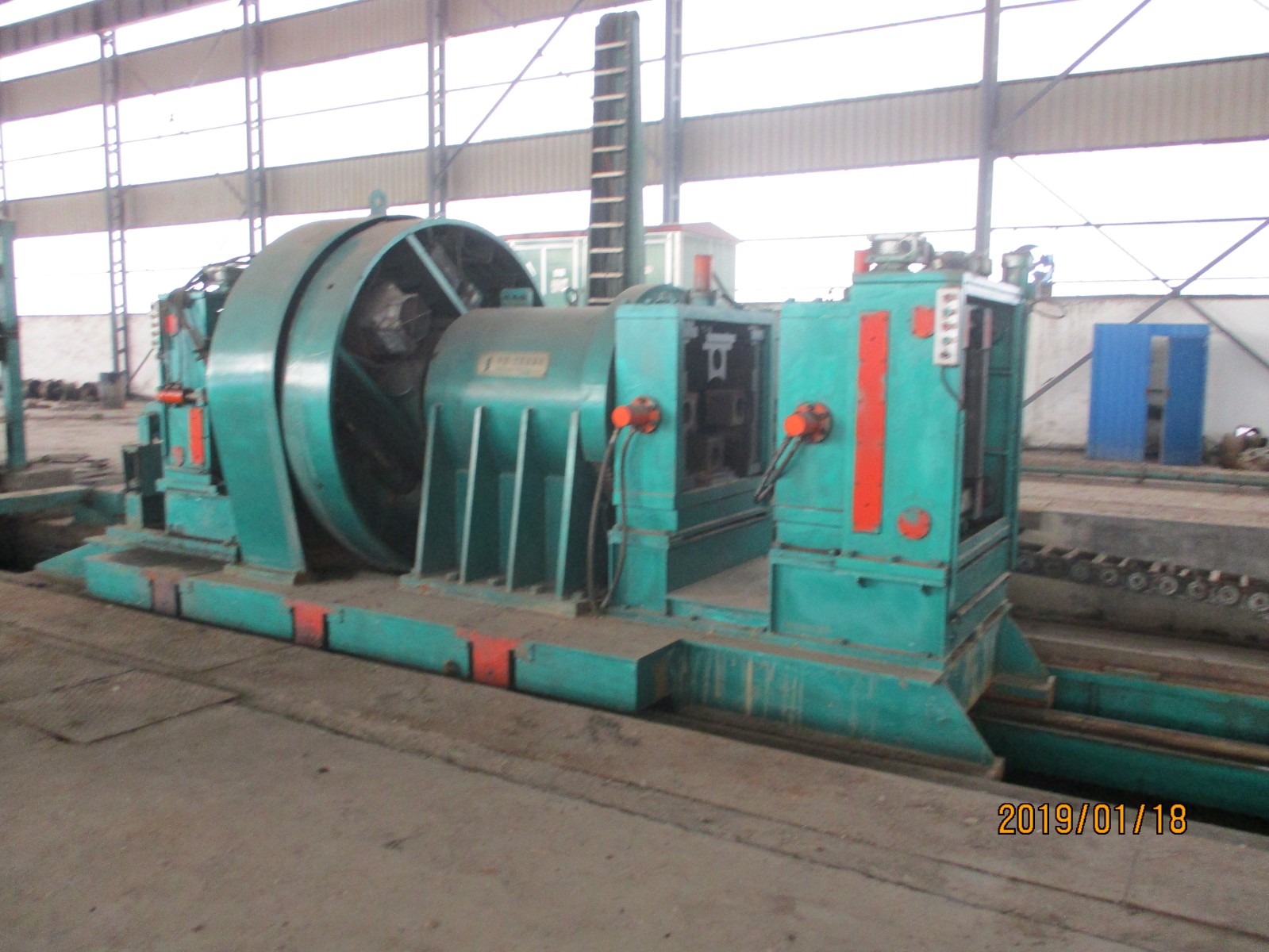

Uncoiler	1 set
Head debende	1 set
Leveler	1 unit
Cutter & butt welder	1 unit

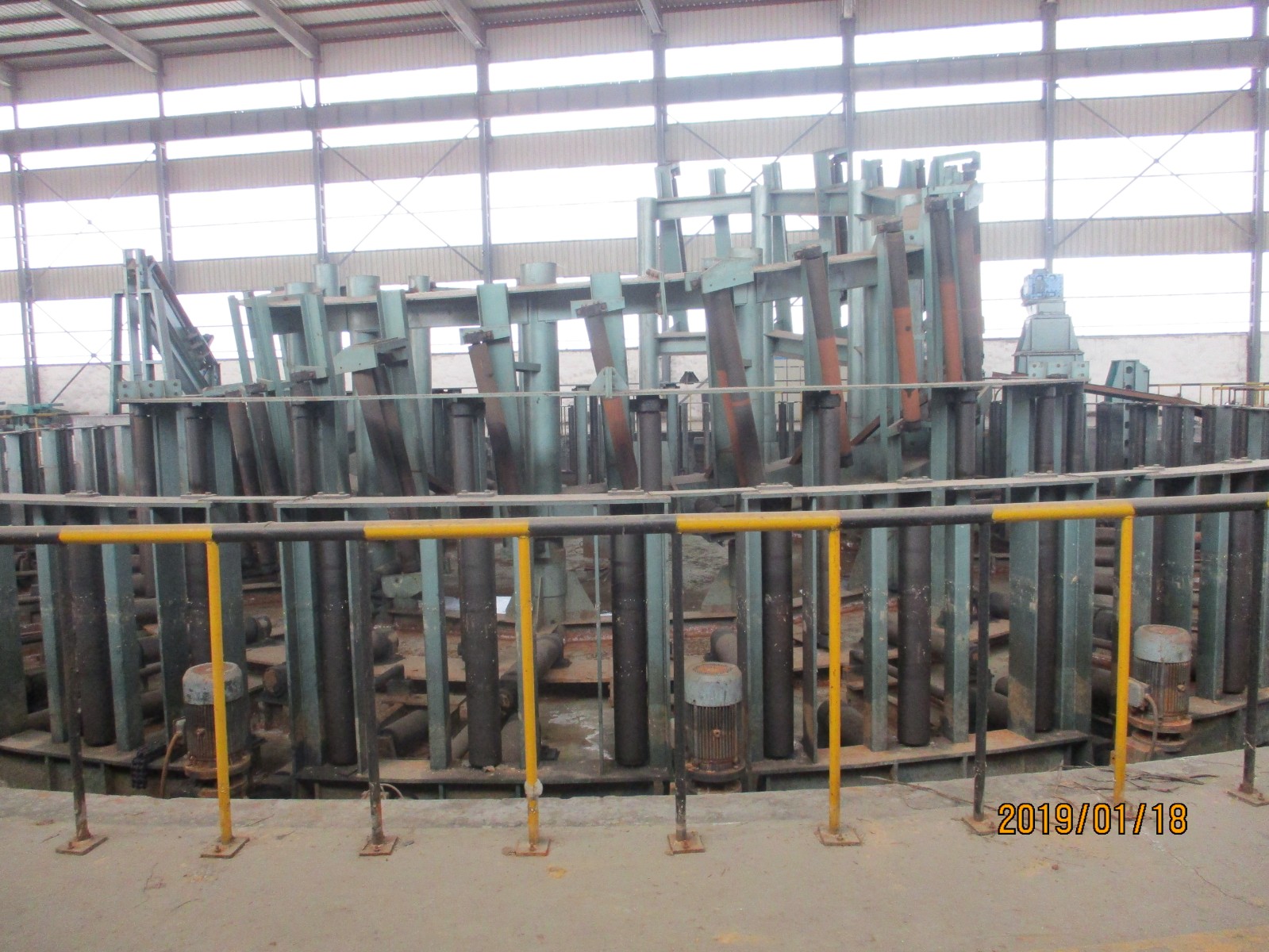

Spiral accumulator	1 unit

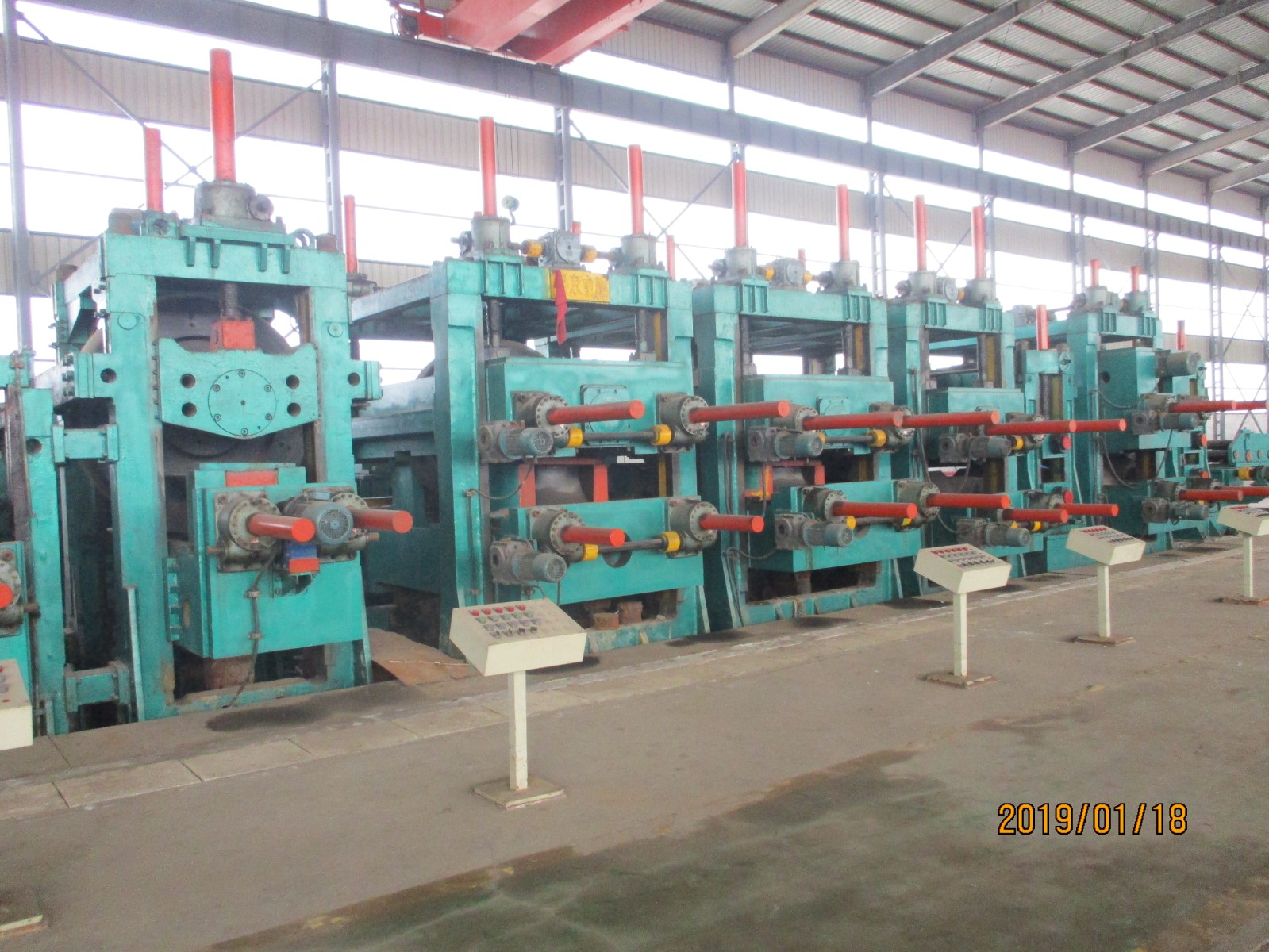

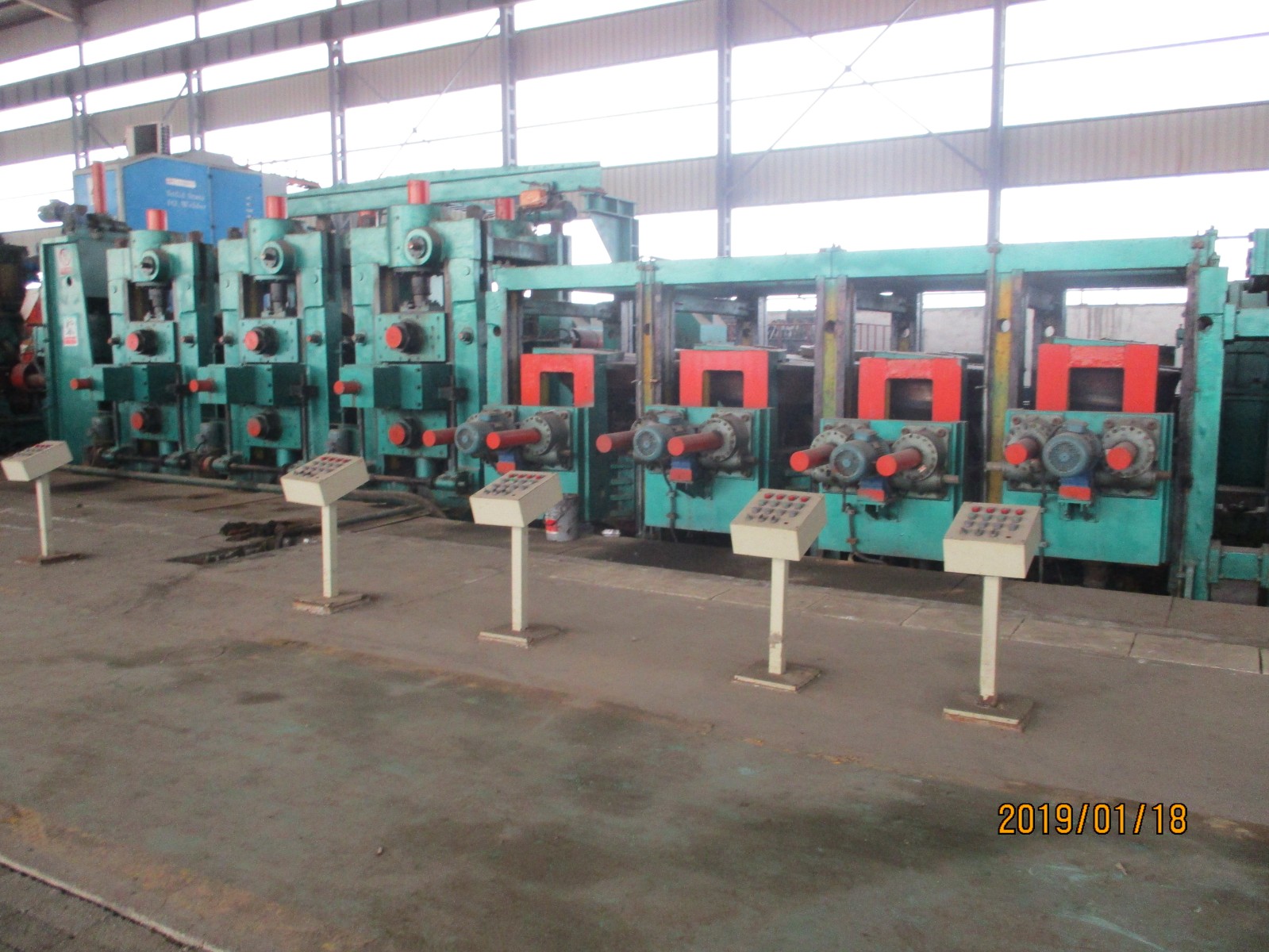

Forming & sizing unit	1 unit
Hydraulic system	1 set
Full line electric control	1 set
PC milling saw	1 unit
Inner-burr removing tooling	2 set
Downstream roller table	1 set
Online weld seam annealing equipment KGPS-TH600KW	4 unit
Eddy-current tester	1 unit
Rolls: shared rolls of break down forming, Tube OD 325, 355, and OD 426, 478mm	4 sets
