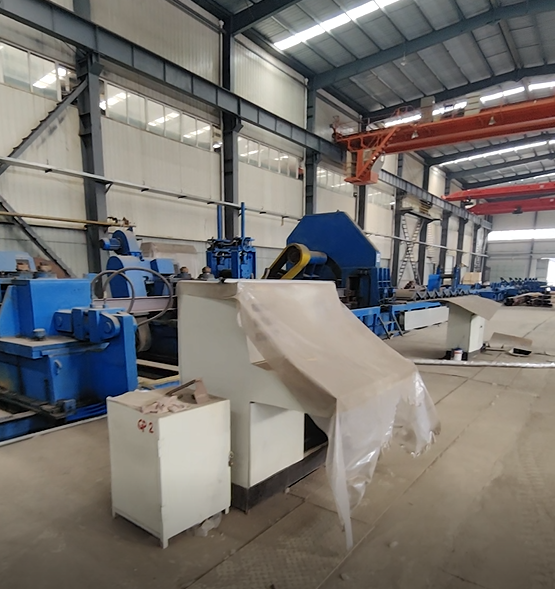

used H beam manufacturing machine

No: 682 Written date: June 11,2026

1.Coil car

Item	Parameter
Material	Q235-A hot-rolled steel strip
Thickness	2.5 – 14 mm
Width	50 – 500 mm
Coil ID	580 – 610 mm, 710 mm
Coil OD	1200 – 2000 mm
Max. coil weight	15000 kg
Max. lifting height	600 mm
Hydraulic station motor power	3 kW

2.Uncoiler

3.Leveler

4. Shear Welder

5.Welding Fixture (Core Equipment)

Item	Parameter
Rolling bottom line height	1000 mm
Flange width	50 – 300 mm
Flange thickness	3.2 – 14 mm
Web height	100 – 500 mm
Web thickness	2.5 – 9.0 mm
Fixed upper guide plate lifting motor power	4 kW
Large pressure roll OD	Φ245 mm, width 61 mm
Small pressure roll OD	Φ245 mm, width 51 mm
Web guide roll OD	Φ175 mm
Hydraulic station motor power	15 kW

Hydraulic System Parameters (for Welding Fixture)

Item	Parameter
Piston pump model	PV29-2R1D-C02-000
Max. working pressure	16 MPa
Max. output flow	40 L/min
Motor model	Y160L-4-B35
Motor power	15 kW
Motor speed	1460 rpm
Tank effective volume	376 L
Tank max. volume	470 L
Power supply	3-phase AC 380V, 50Hz
Control power supply	DC 24V
Hydraulic fluid	Anti-wear hydraulic oil ISO VG 46

6. Accumulator

7.Cooling Unit

Item	Parameter
Front/rear pinch roll diameter	Φ160 mm
Cooling zone roller diameter	Φ106.6 mm
Cooling zone length	9 m
Coolant flow rate	1100 L/min

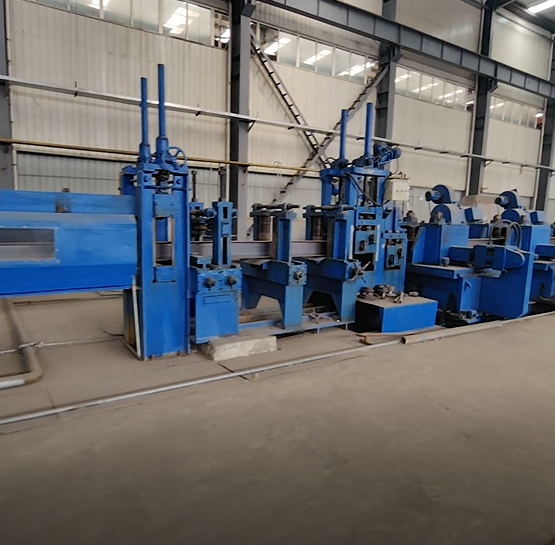

8. Pull-Out Stand Unit

Item	Parameter
Pull-out roll diameter	Φ509 mm
Pull-out roll width	30 mm
Active pull-out roll motor power	AC 75 kW
Hydraulic cylinder specification	Φ250 × 25 mm
Hydraulic station motor power	DC 11 kW
Max. hydraulic system pressure	100 kgf/cm²
Measuring roll diameter	Φ130 mm

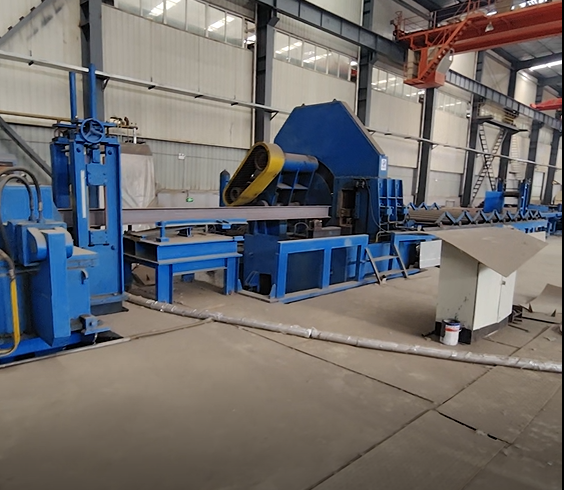

9. Punching Shear

10. Overall Line Parameters (from NC System Page)

Item	Parameter
Material	H-beam
Max. cross-section	300 mm × 500 mm
Max. wall thickness	14 mm
Max. line speed	30 m/min
Cut-to-length range	5000 – 15000 mm
Cutting time	0.5 sec
Mechanical inertia (GD²)	2.516 kg·m²
Travel distance per 1 motor revolution	30.159 mm
Reduction ratio	1/25
NC system model	NUSCO-200GP AC servo drive system
Servo motor power	42 kW, 1000 rpm
Power supply 1	3φ 200Vac±10%, 50/60Hz
Power supply 2	3φ 400Vac±10%, 50/60Hz

Summary (Whole Line Core Capabilities)

Parameter	Value
Applicable material	Q235-A hot-rolled steel strip / H-beam
Thickness max	14 mm
Width range	50 – 500 mm
Web height range	100 – 500 mm
Coil ID	580 – 650 mm
Coil OD	1200 – 2000 mm
Max. coil weight	15000 kg
Line speed	Max. 30 m/min
Cut-to-length range	5000 – 15000 mm
Cooling zone length	9 m
	1

Process

Hot-rolled steel coil

↓

Uncoiler → Leveler → Shear welder → Accumulator (Loop storage)

↓

├── Upper flange forming

├── Web forming → Welding fixture (three strips converge) → High-frequency welding

└── Bottom flange forming

↓

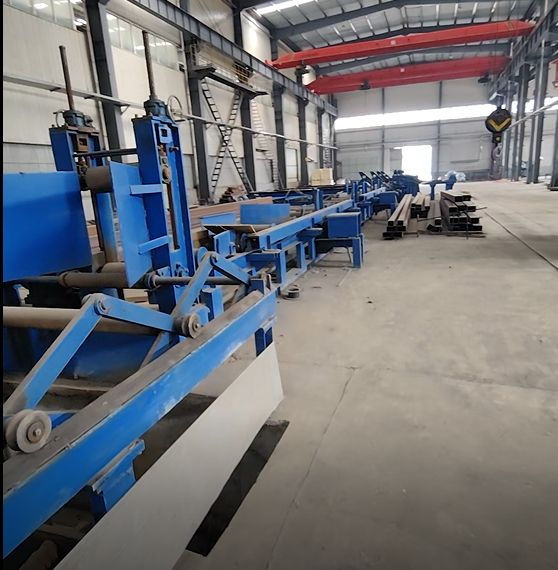

Cooling unit → Straightening device → Pull-out stand → Cut-to-length flying shear → Run-out table

Above specifications are only for references, if there is any discrepancy, please follow machines and its specifications at site.
