1. Pipe manufacturing range:

Square pipes: 200mm x 200mm to 600mm x 600mm

Rectangular pipes: 200mm x 400mm to 500mm x 600mm

Wall thickness range: 6mm to 20mm.

2. Specific configuration of auxiliary and main equipment of the device:

2.1. Material preparation table: 2 units

2.2. Uncoiling car: 1 set

2.3. Head pressing and coiling device: 1 set

2.4. Feeding and leveling machine: 1 set

2.5. Shearing and butt welding device: 1 set

2.6. Vertical roller device: 2 sets

2.7. Delivery roller device: 1 set

3. Main equipment part

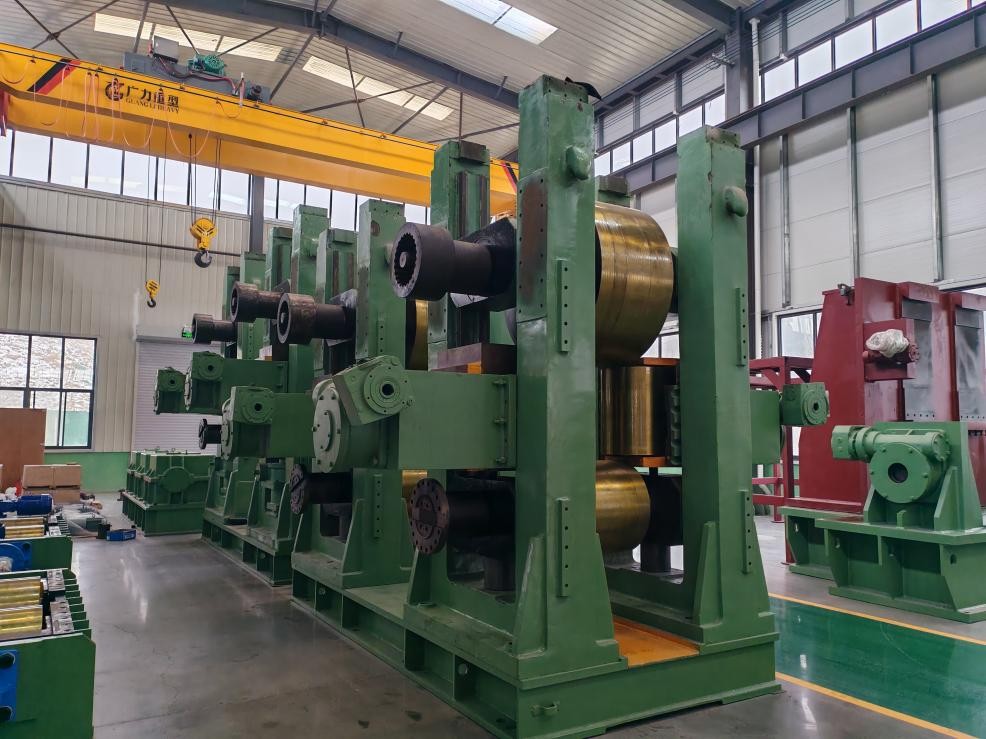

3.1. Forming machine

3.2. Welding and extrusion roller device

3.3. Water cooling system

3.4. Sizing machine

4. Milling saw

5. Roller track and return material device after sawing

6. Encoder automatic adjustment device of the electrical control system

7. Hydraulic system

8. Preparatory circuit breaker control device

9. 1600kw solid-state high-frequency welding

10. Drive cabinet: 23 sets

11. Roller molds: 200mm x 200mm to 600mm x 600mm, approximately 210 tons

Used machine by revamping.

HF welder and Milling cutter are new.

Some electric parts are new.

One year warranty
