used cold rolling mill

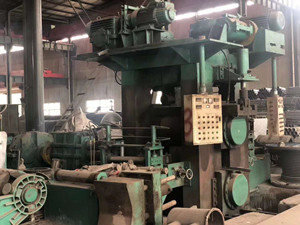

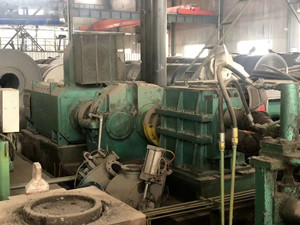

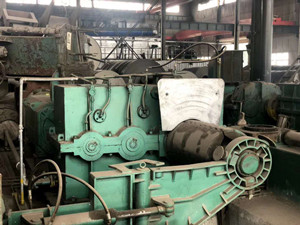

650mm Used 4Hi Cold rolling mill
Used 650mm Cold rolling mill.it is made in 2011.The machine weight is approximate 130tons.The written time is August 4,2020.
- product description
- Technical Parameters
Material:mild steel
Max coil width: 650mm
Max material thickness:2-4mm
Min product thickness:0.3-1mm
Max coil weight:15tons
Max speed: 160m/min
Working roll width: 800mm diameter: 200mm
Back up roll width: 750mm, diameter: 700mm
Mill DC motor: 600KW
Coiler DC motor: 355KW
Working roll drive
Motor press down
Scope of supply Exclude spare,thickness gauge:
Coil car
Coiler
Rolling mill
Electric system
Hydraulic system
