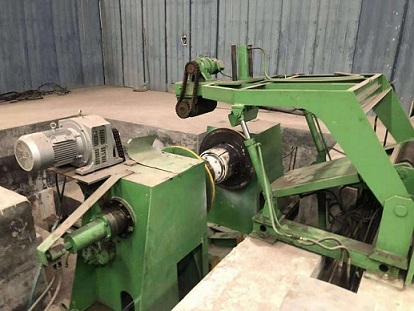

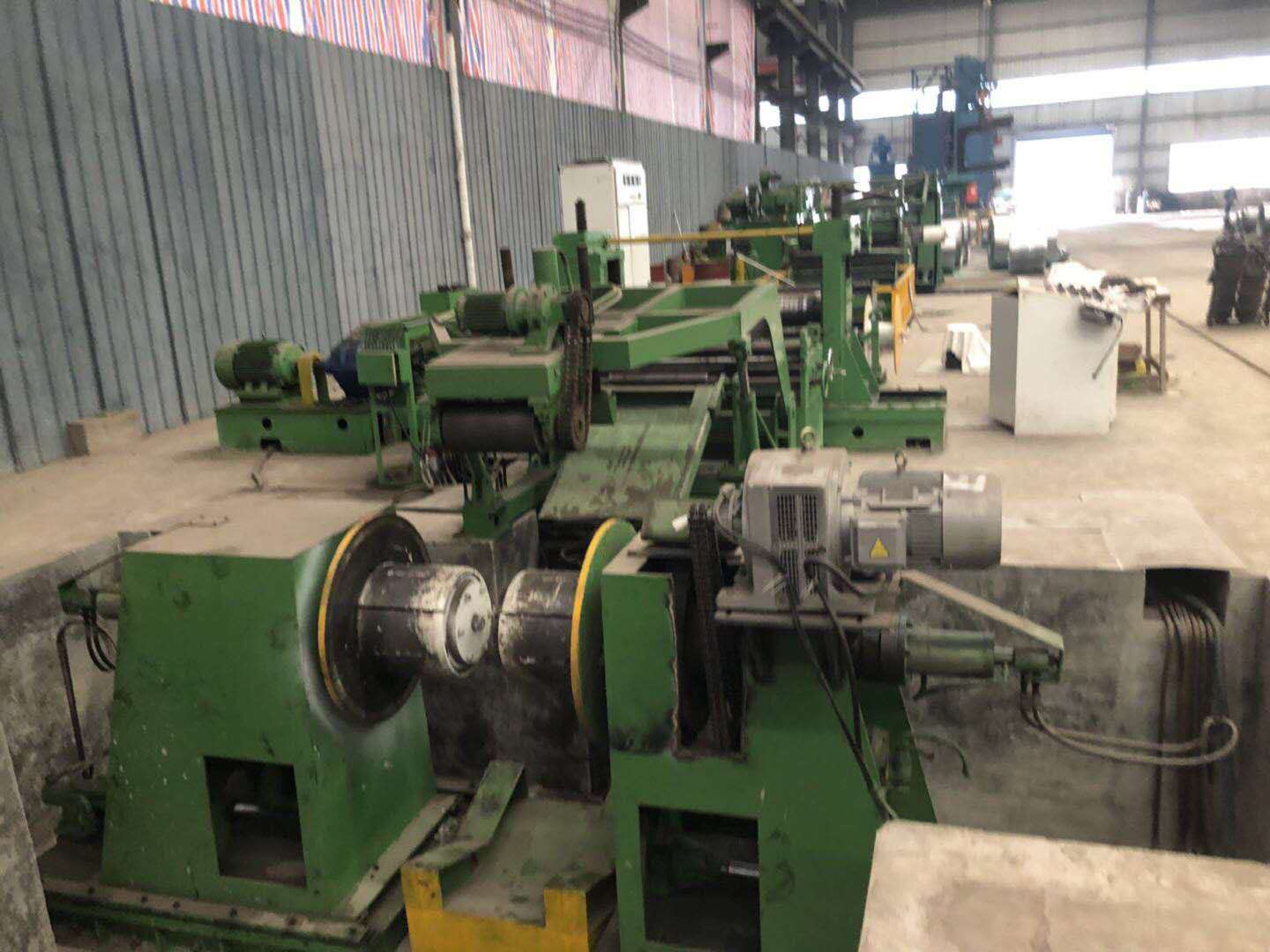

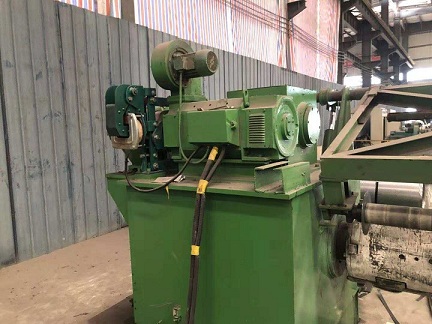

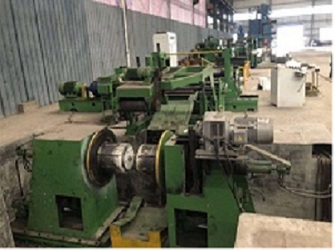

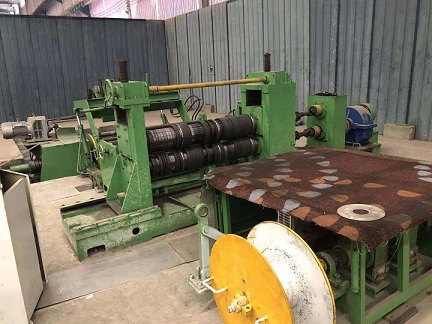

1300 slitting machine produced in 2011. The thickness is 0.2-2.0 mm. Cutter shaft motor 30KW, rewinding motor 55KW, cutter shaft 180, with trolley, rewinding.

Shear sheet strength: σs≤245MPa, σb≤450MPa

Coil width:300-1300mm

Coil thickness:0.2-2mm

Power:120KW

Coil weight:22T

Coil ID:508mm

Coil max OD:2200mm

Movements itinerary:700mm

Walking motor:2.2KW

Diameter of draw roll:120mm

Slitting number:≤13

Slitting width:100mm

Blade dish size:φ180*φ280*12

Main motor:30KW

Max slitting speed:80.8m/min

1300 divider. The thickness is 0.2-2.0 mm. Cutter shaft motor 30KW, rewinding motor 55KW, cutter shaft 180, with trolley, rewinding.
