technical specification

maker: china brand

1、material：Q235、Q345 hot roll carbon steel plate

2、material thickness：1.0~6.0mm

3、material width：1000~1850mm

Remark: design width is 1850mm, but for safety, we strongly suggest material width should be less than 1600mm in actual use, while motor power is not enough.

4、coil inner diameter：φ610mm、φ760mm（with nylon spacers）

5、coil outer diameter：φ1000~φ2000mm

6、coil weight：30t

7、width error：±0.1mm

8、speed：0~60m/min（adjustable）

9、blade diameter：φ260 mm

10、slitting quantity：1.0~2.0mm：15 pieces；~4.0mm：8 pieces；~5.0mm：6 pieces；~6.0mm：5 pieces

11、min slitting width：60mm

12、blade：φ260×φ380×25mm

13、blade material：Cr12MoV

14、coiling ID：φ610 mm

15、coiling holding weight：30t

  16、total power：~370KW

17、center height：950mm

  18、feeding material net width：2100mm

B. craft process：

Coil-loading→uncoiling→Coil-head-feeding→feeding and leveling→cutting head→accumulating→guide→slitting→edge collecting→accumulating→Pre-separator、damping→Coils press & separator→coiling→run out→Hydraulic control→Electric control

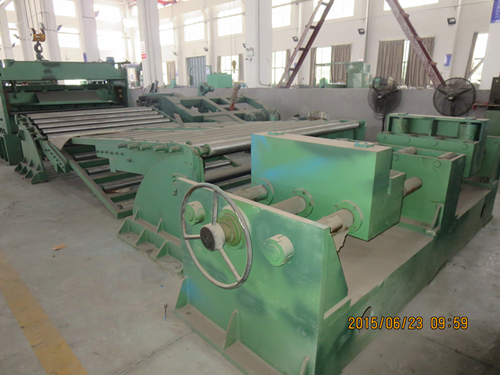

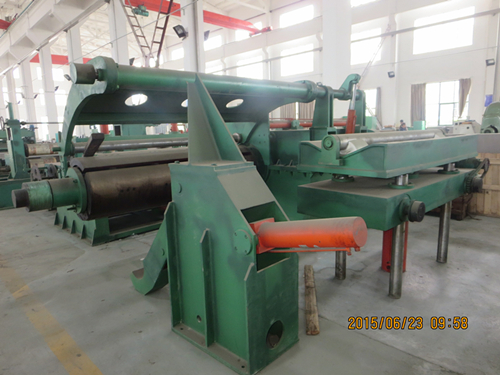

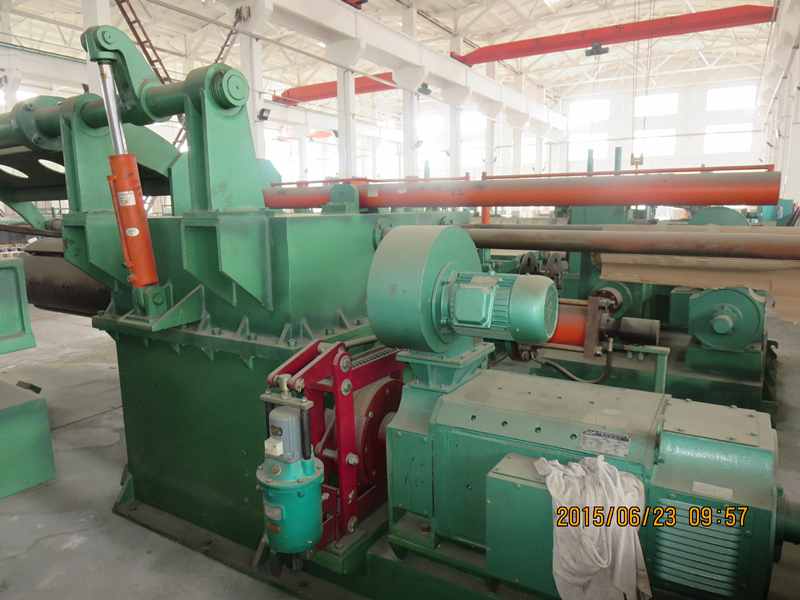

C. components

1、hydraulic loading trolley 11、Ⅱhydraulic accumulator 2

2、hydraulic expanding uncoiler   12、Pre-separator damping device

3、hydraulic directing machine    13、Coils press & separator

4、feeding pre-leveling machine             14、coiler

5、head cutter              15、hydraulic unloading trolley

6、Ⅰhydraulic accumulator 1       16、Hydraulic control

7、limited working table          17、Electric control

8、 slitting machine    18、attachments（blade、spacer、rubber rings septa）

9、edge collector    10、  rolling rail working table
