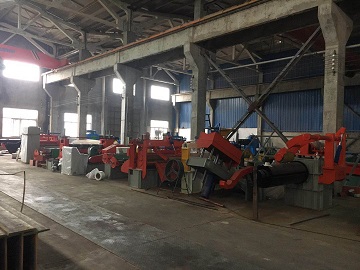

3X1600 Used automaitc slitting line

3X1600 automaitc slitting line.

Main technical parameters:

Material:CRS ,GI, SS

Tensile strength:δb≤500N/mm2

Steel thickness 0.3-3mm

Steel width 500-1600mm(max)

Steel coil I.D Φ508/610 mm

Steel coil O.D φ1800mm（Max）

Steel coil weight 15T（Max）

Slitter parameters:

blade pivot diameter Ф200 mm

blade pivot material 40Cr

Blades specification Φ200mmXφ340mmX15mm

Blade material 6CrW2Si

Max slit quantity 5 pcs (3mm) 20 pcs(0.3mm)

Width precision ≤±0.05mm/2m

Power 380V/60Hz/3Ph

Speed 0-120m/min

Capacity 200 KW

Line direction From right to left(Face to machine)
