A． Specs

1.       Material: cold rolling coil 6b≤460Mpa

2.       Thickness: 0.25-2mm

3.       Width: 1300mm

4.       Slitting accuracy: width error±0.1mm

5.       Slitting speed: 0-60m/min

6.       Uncoiler max holding: 20 tons

7.       Coil ID: 508-610mm

8.       Coil OD≤1600mm

9.       Slitting blade diameter: 240mm, material: 40Cr

10.   Slitting qty: 13

11.   Slitting width ≥35mm

12.   Slitting blade size: Φ240 x Φ350 x 15, qty: 28

13.   Blade material: 6CrW2Si

14.   Blade hardness: HRC58-60

15.   Recoiling ID: 508mm, 20 tons

16.   Voltage: 380V, 50HZ, 3P

17.   Line total power: 255kw

18.   Standard working height: 800mm

B. scope of supply

1. hydraulic entry car

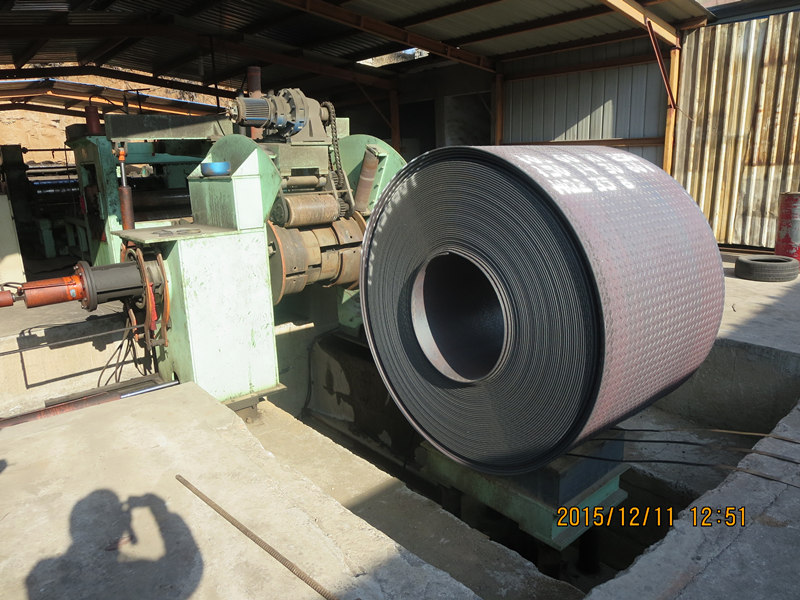

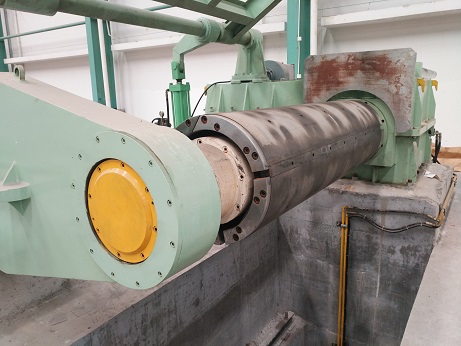

2. hydraulic expanding uncoiler

3. hydraulic guiding and shovel device

4. pinch leveler

5. hydraulic accumulating bridge

6. guiding(pressing) roll device

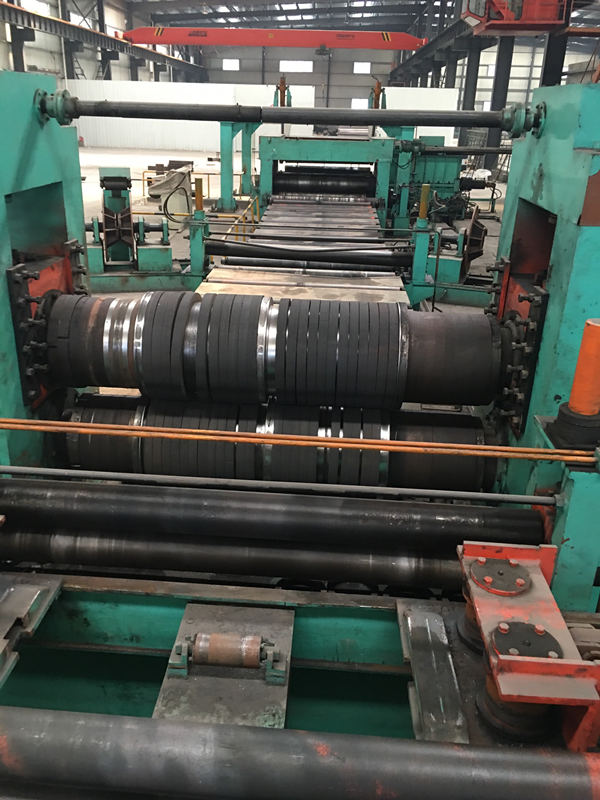

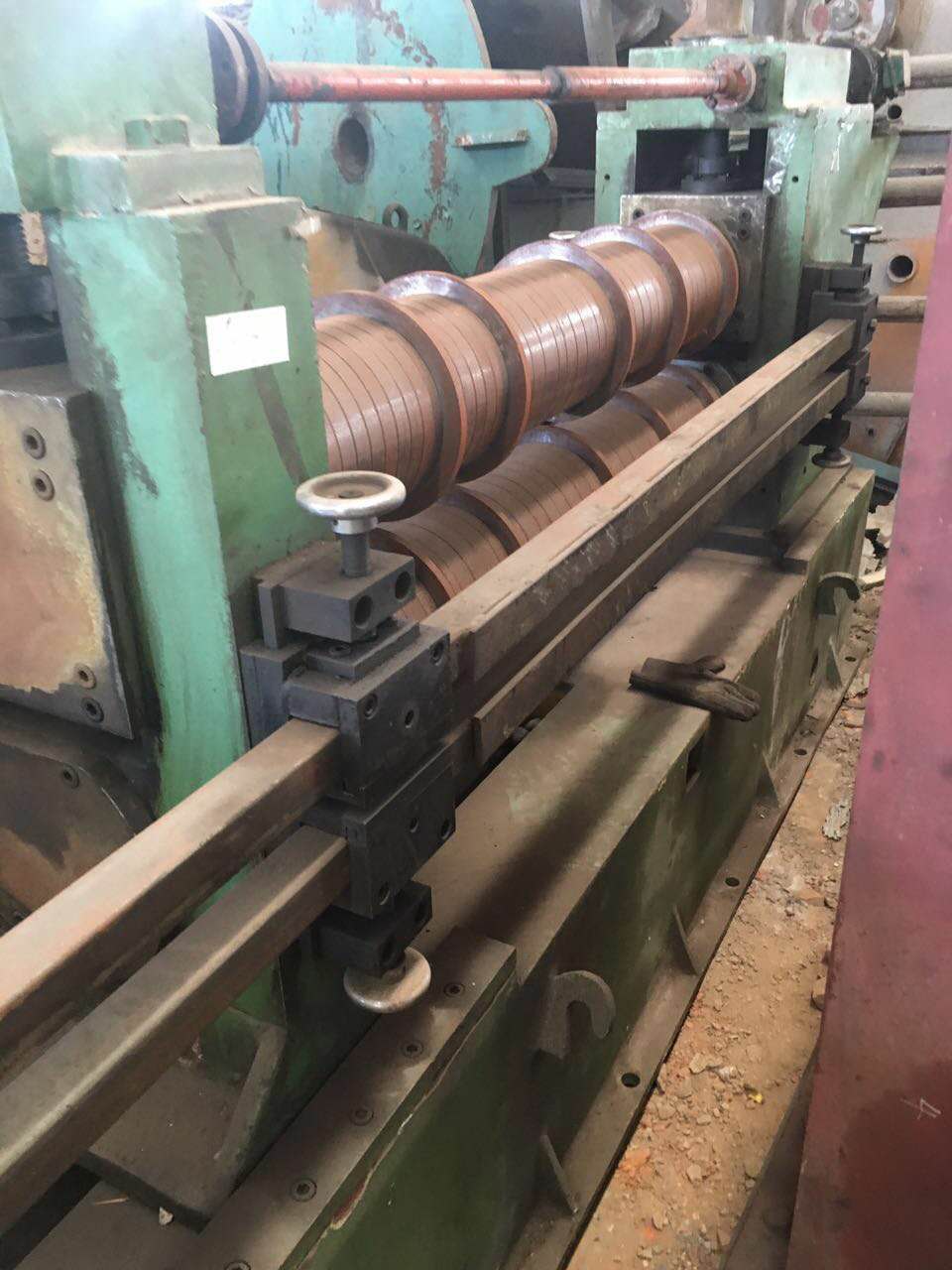

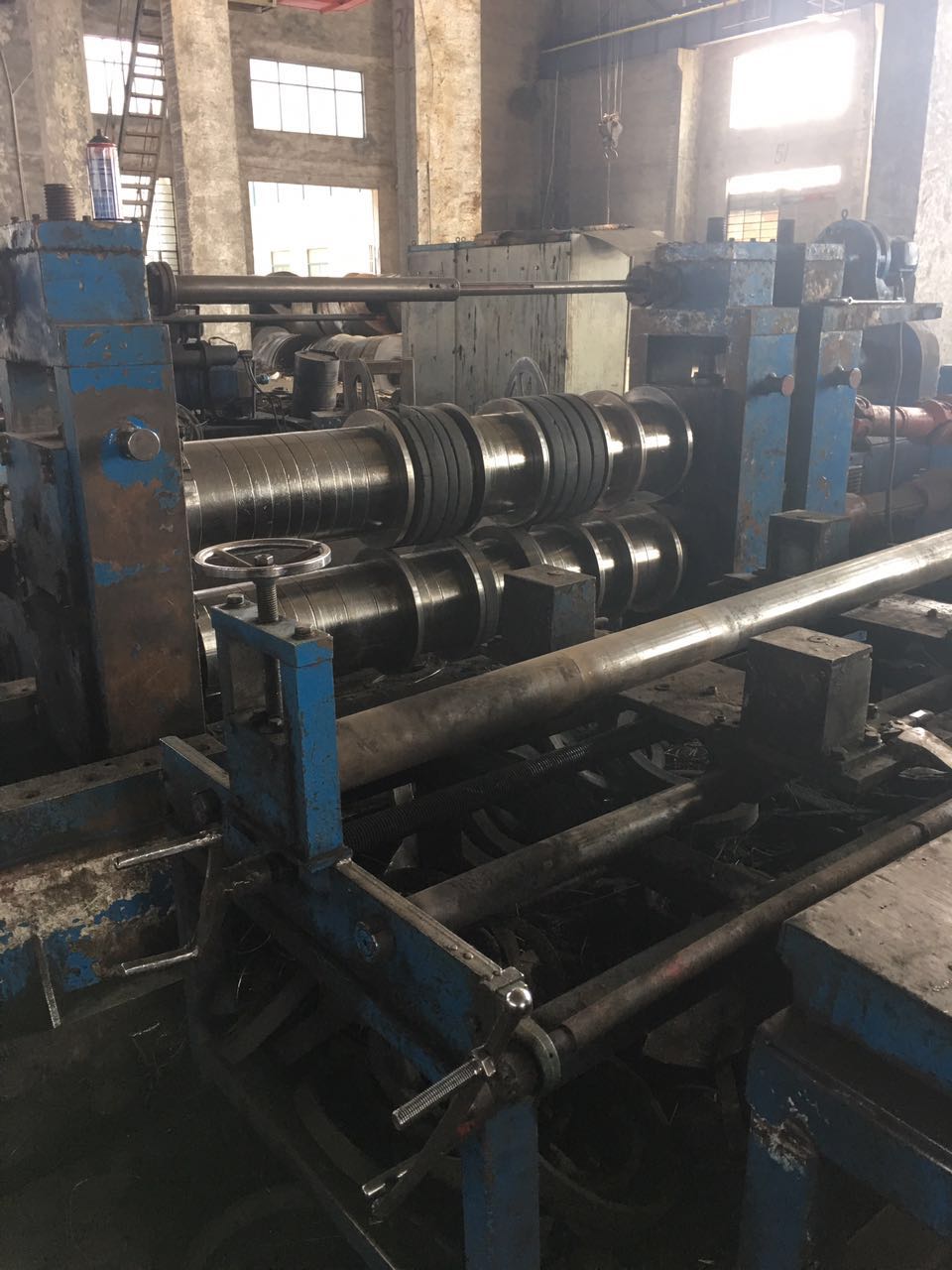

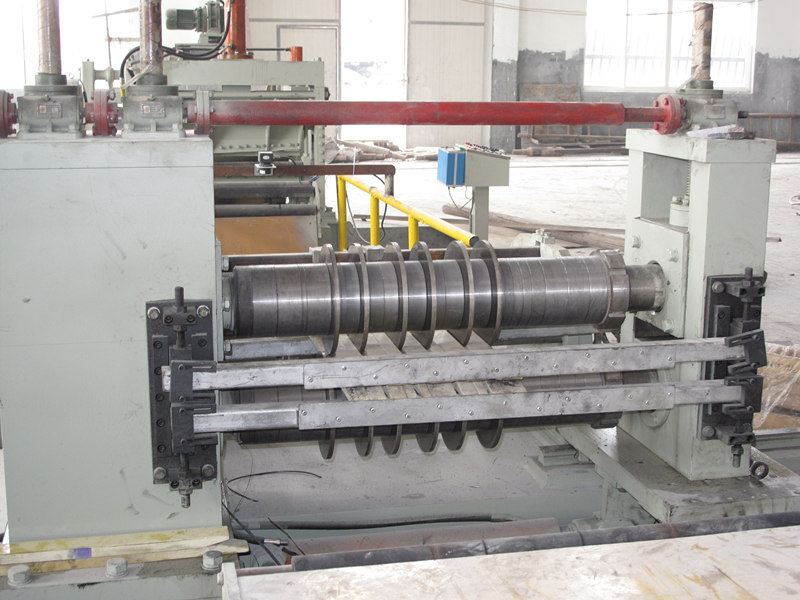

7. slitter   75kw DC motor

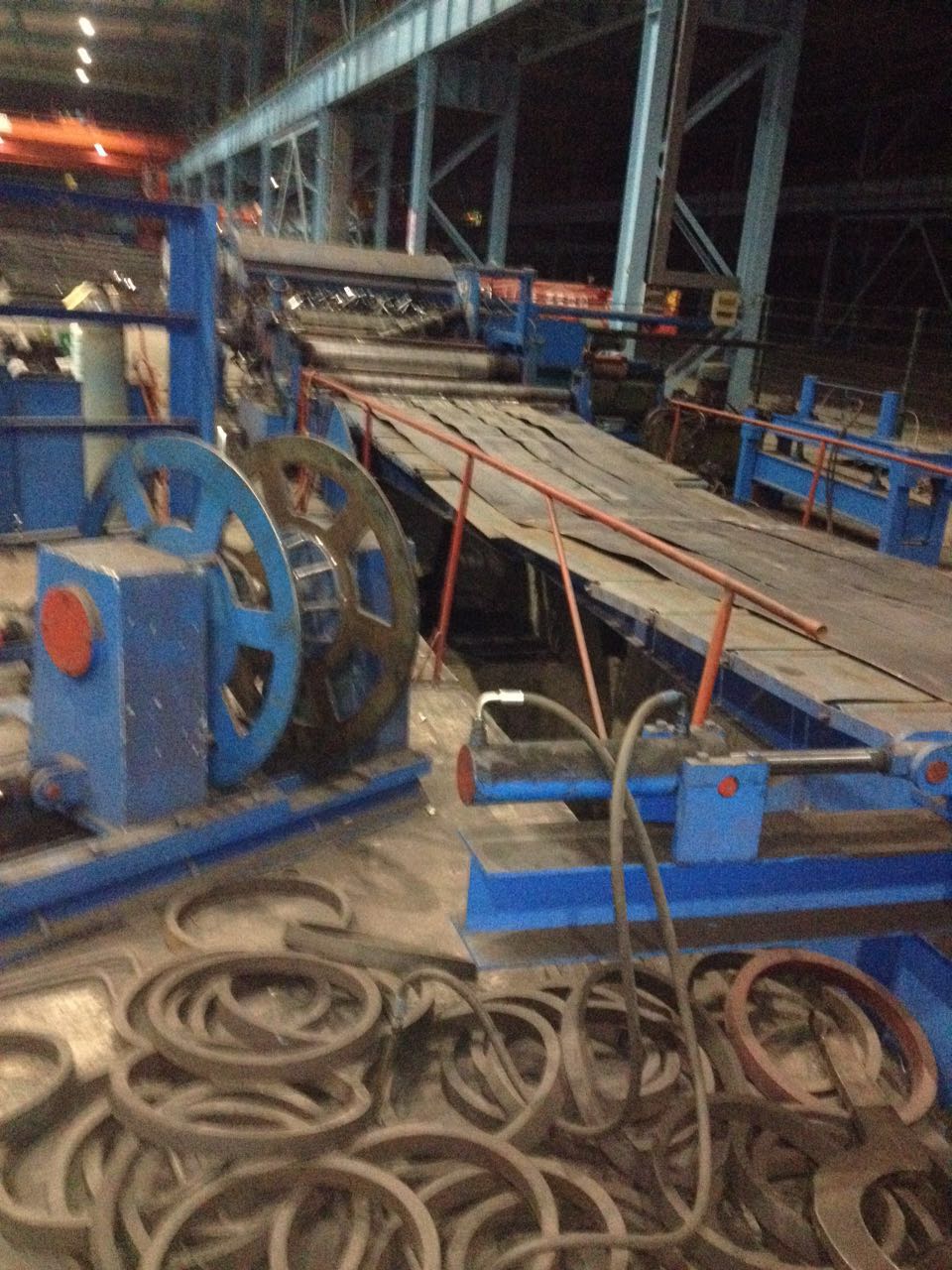

8. scrap rewinder

9. hydraulic accumulating bridge

10. hydraulic pre-damping separating device

11. hydraulic recoiler

12. run out car
