A.     MAIN SPECS

1.       Material type: cold rolling coil(strength≤460Mpa)

2.       Thickness: 0.25-2mm

3.       Width: 1300mm

4.       Slitting accuracy: width error ±0.1mm

5.       Slitting speed: 0-60m/min

6.       Uncoiler max holding: 20 tons

7.       Coil ID: 508-610mm

8.       Coil OD: ≤1600mm

9.       Blade shaft diameter: 240mm, material: 40Cr

10.   Slitting qty: 13 strips

11.   Slitting width: ≥35mm

12.   Blade: Φ240 x Φ350 x 15, qty: 28

13.   Blade material: 6CrW2Si

14.   Blade hardness: HRC58-60

15.   Recoiling ID: 508mm, max holding: 20 tons

16.   Voltage: 380V, 50HZ, 3P

17.   Electrical parts and easy wear parts fit GB standard

18.   Total power: 255kw

19.   Line working line standard height: 800mm

B.      Scope of supply

1.       Entry car

2.       Hydraulic expanding uncoiler

3.       Hydraulic guiding head and shovel device

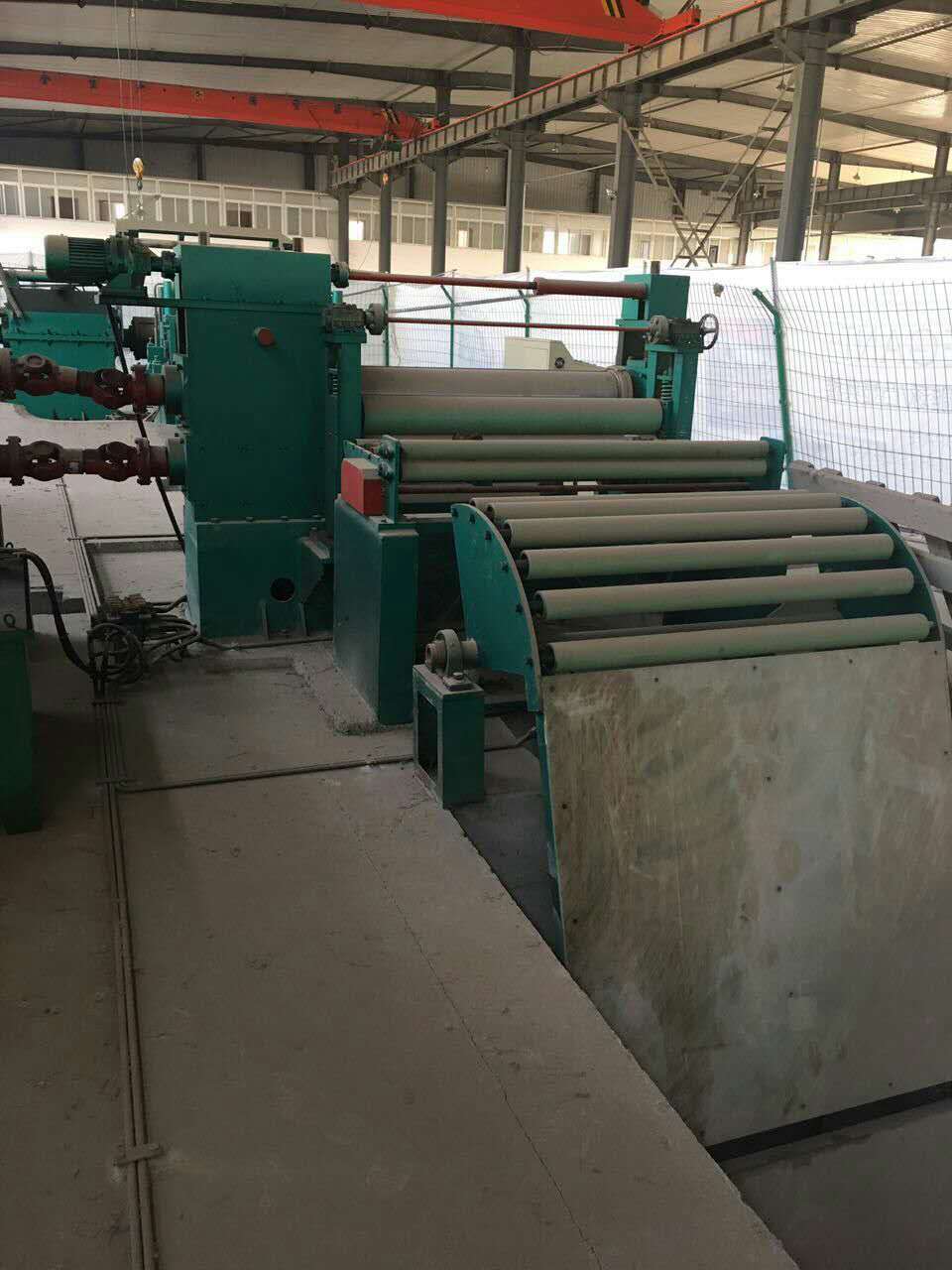

4.       Pinch leveler

5.       Hydraulic accumulating bridge

6.       Guiding(pressing) roller device

7.       Slitter

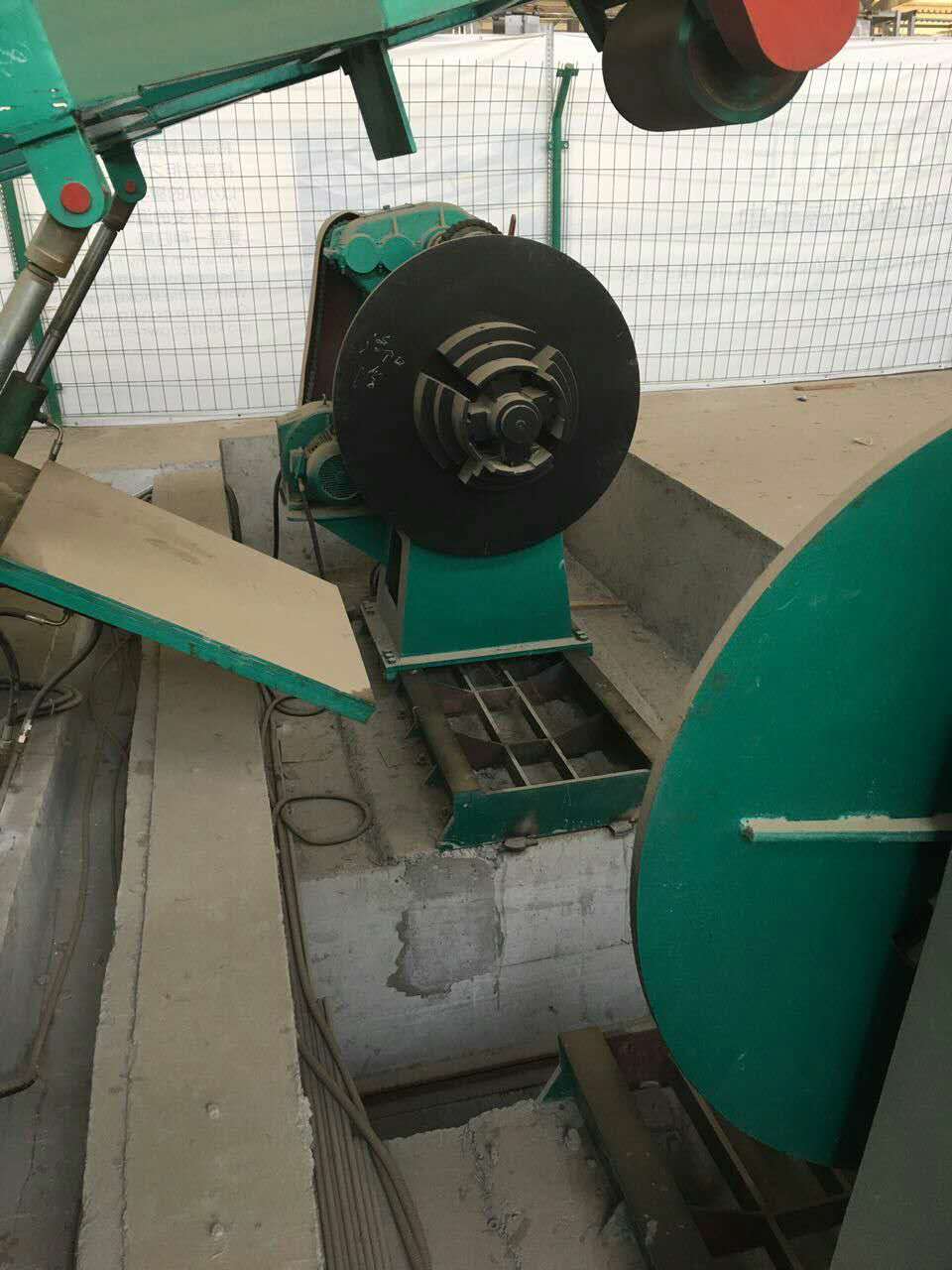

8.       Scrap rewinder

9.       Hydraulic accumulating bridge

10.   Hydraulic pre-damping and pressing device

11.   Hydraulic recoiler

12.   Hydraulic run out car
