Used JCO tubemill

Year of manufacture: 2008

Last running date: October 2025

Max. pipe length: 12,000 mm

Pipe diameter range: 400 – 1,420 mm

Wall thickness capability:

For pipe diameter 400 mm → max. 20 mm

For pipe diameter 800 mm → max. 30 mm

max wall thickness 45mm at Q235

max wall thickness 40mm at Q355

Material: Q235, Q355, etc.

Scope of supply:

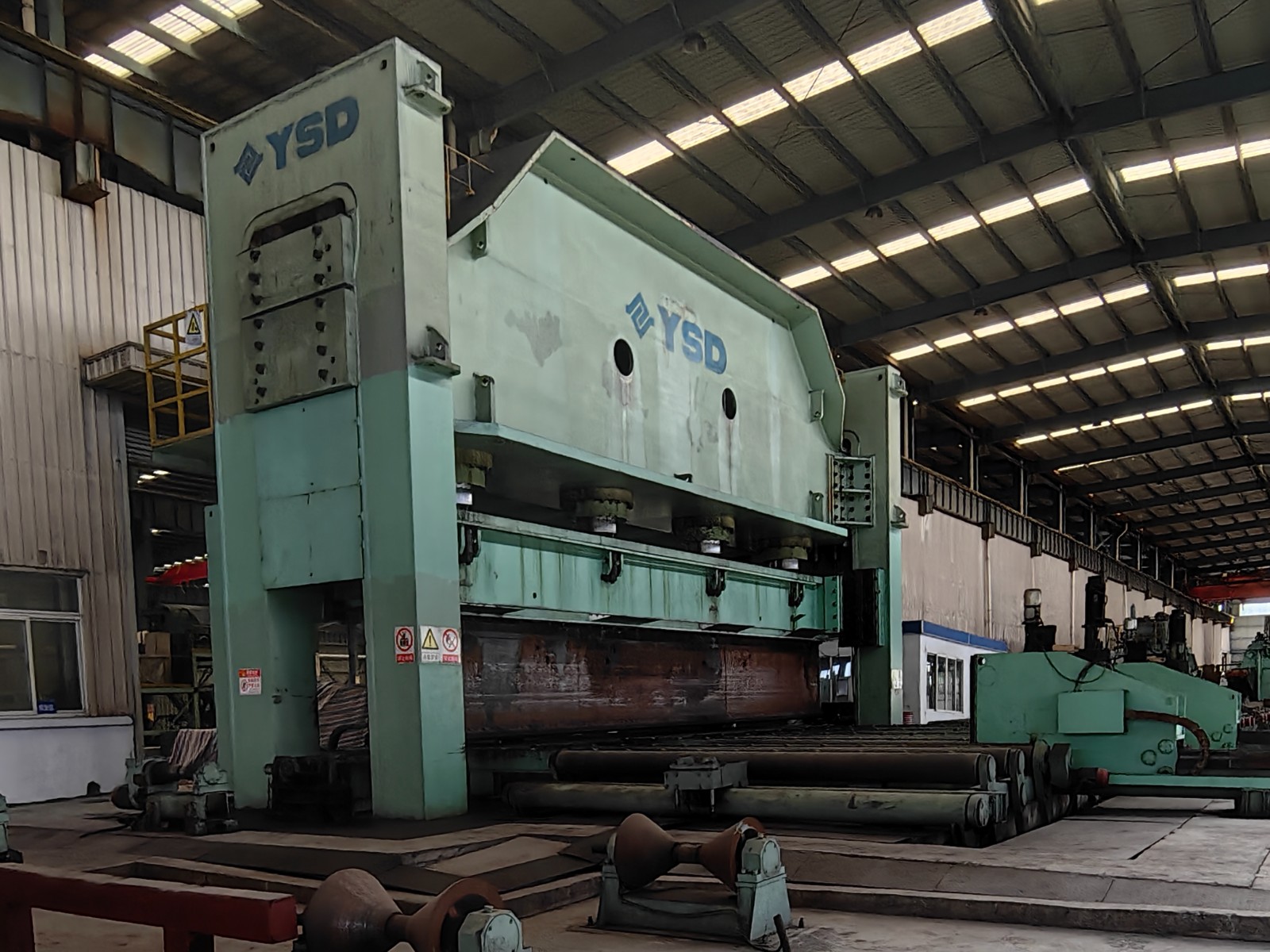

Press brake (with molds), brand: YSD, tonnage: 3,600 t

1. 2 gas cutting machines: 2 cutting machines, 2 cutting platforms

2. 1 turnover machine: turnover machine, hydraulic station, electrical cabinet

3. 1 pre-bending machine set: double-side pre-bending machine, 2 hydraulic stations, electrical cabinet, guide rollers, molds

4. 1 forming machine set: forming machine, hydraulic station, CNC electrical system, guide rollers, molds

5. No.1 pipe transfer carriage (1 unit): pipe transfer carriage, carriage rail, pipe support stand

6. 1 tack welding machine set: tack welding machine, pipe support stand, hydraulic station, electrical cabinet, molds, V-shaped pipe feeding stand

7. No.2 pipe transfer carriage (1 unit): pipe transfer carriage, conductive marking, carriage rail, pipe support stand

8. 2 internal welding machine sets: 2 internal welders, 4 Lincoln welders (with welding cables), 2 flux recovery bins, electrical cabinet

9. 2 external welding machine sets: 2 external welders, 4 Lincoln welders (with welding cables), 2 flux recovery bins, electrical cabinet

10. 1 air compressor: air compressor, air receiver tank

11. No.3 pipe transfer carriage (1 unit): pipe transfer carriage, roller stand, pipe support stand

12. 1 straightening machine set: straightening machine, hydraulic station, electrical cabinet

13. 1 sizing machine set: sizing machine, hydraulic station, pipe support stand, molds, pipe stacking stand, electrical cabinet

14. Auxiliary equipment: gas shielded welding machines, gouging machines, arc welding machines, pipe flame cutting machine (including 2 flame cutting torches with rail), roller stands for repair welding and beveling, flux drying ovens, flux magnetic separator.
