Used Bar mill in Shanghai, China

Hot Rolling Mill

Your current location：首页 > Products > Hot Rolling Mill > Used Bar mill in Shanghai, China

Product No. 655 written on Feb 6, 2026

product description
Technical Parameters

1.Billet size：130x130-150x150mm，bar diameter: 10--25mm

2.Annual production: 200,000-300,00 ton

3.Material: Q 235

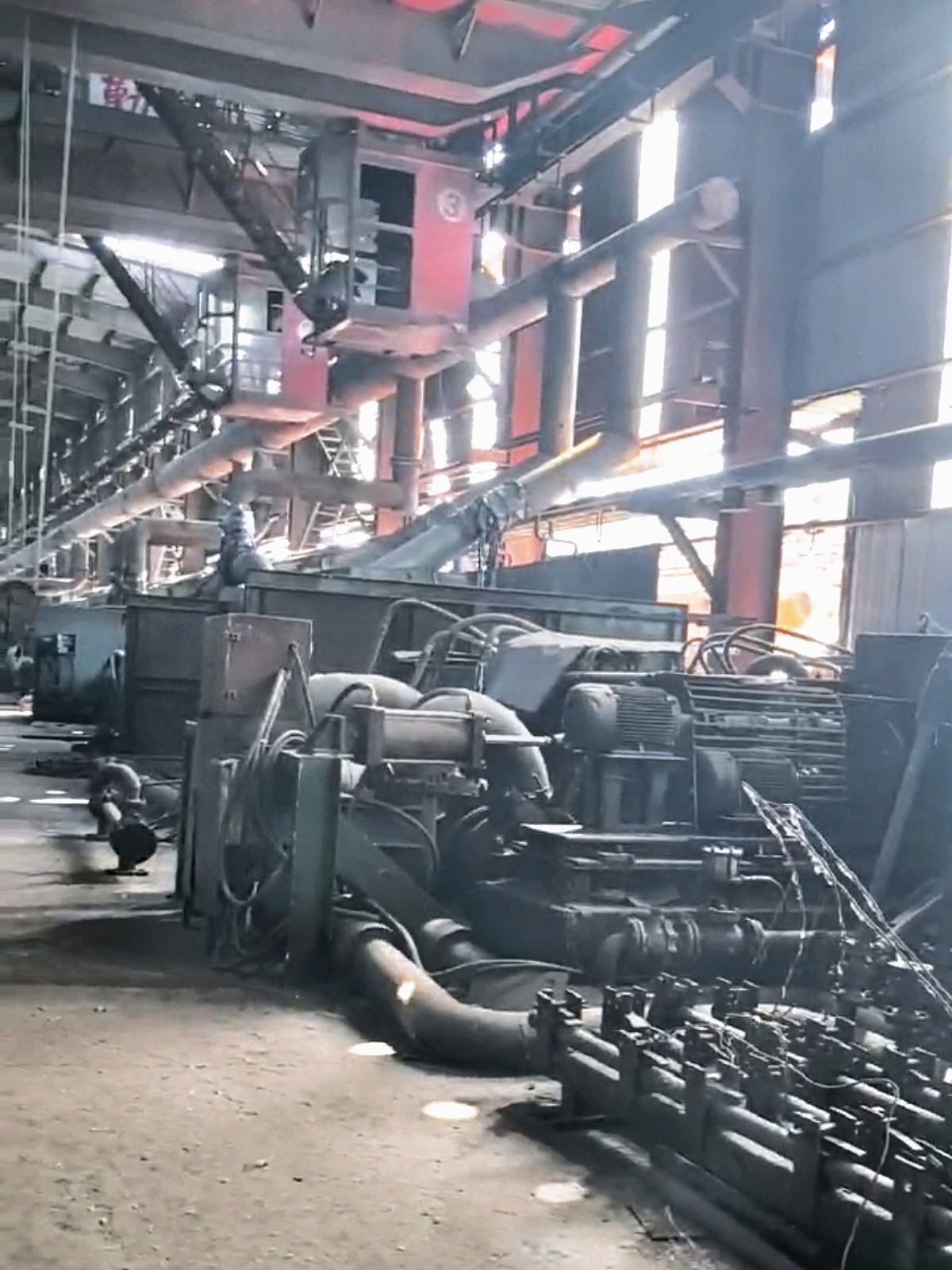

4.Mill Configuration: One breakdown mill followed by a 19-stand continuous rolling mill.

5.Layout: The mill is arranged as two alternately operating rolling lines.

6.Process: From the intermediate stands, the rolled 3. product is split into two lines for independent piercing and water cooling, which then proceed to the cooling bed without interference.

7.Drive System: The breakdown mill has one “one-motor-drives-two-stands” and one “one-motor-drives-one-stand” setup; the intermediate mill uses “one-motor-drives-two-stands”; the finishing mill uses “one-motor-drives-one-stand”.
