Electric Tower Production Line
2020-CNC Angle Steel Production Machine
stock number: 629, it is written on 05/June/2025- product description
- Technical Parameters
LSBL2020/LSAPM2020/LSAPM2020A/LSAPM2020C

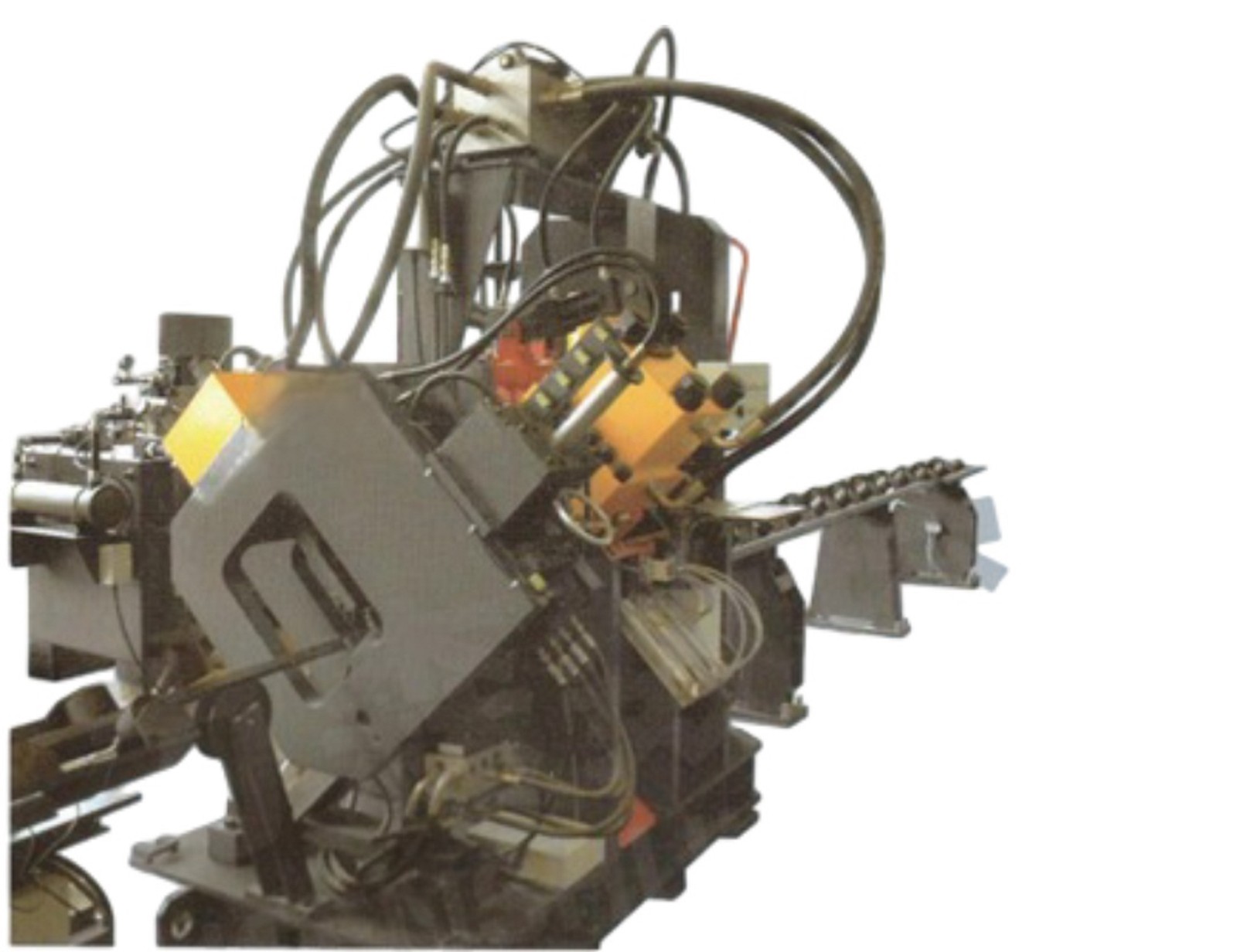

CNC Angle Steel Production Machine
Product industry
This machine is mainly used for fully automated production of angle steel typing (stamping), punching, and shearing.
It is widely used in power angle steel towers, communication angle steel towers, power fittings, Warehouse shelves, steel structure buildings, and other industries.
Features:
The advanced supporting device has obtained the national patent certificate and improves the processing accuracy of angle steel.

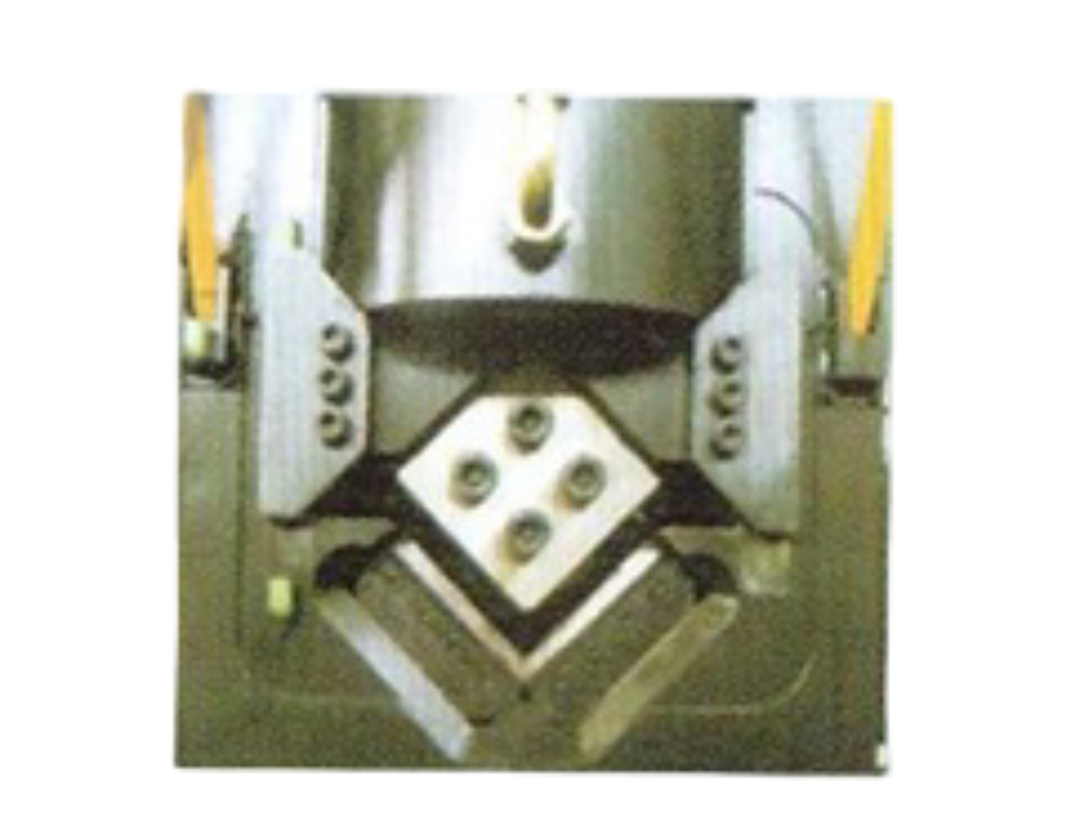

Three sets of punching dies are arranged on each of the two wings of the angle steel, so all the holes on the angle steel can be processed at one time.

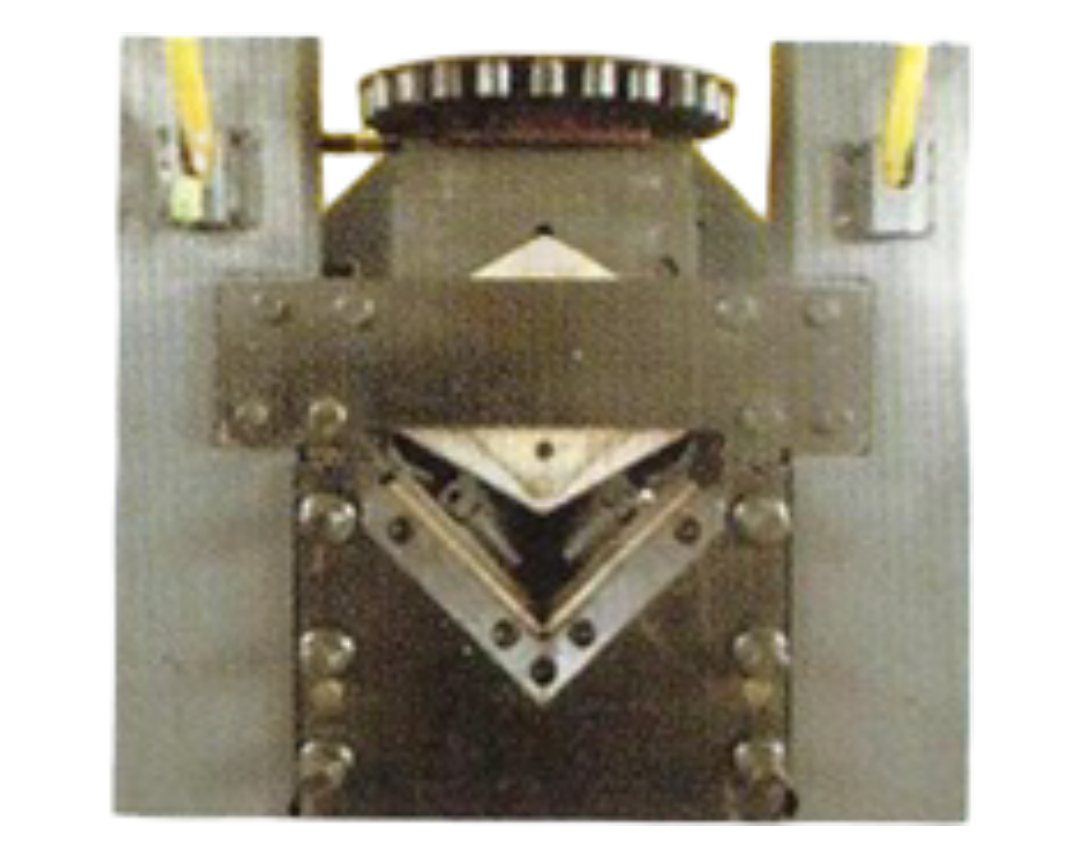

TBL2020, TAPM2020 double-edged shears can process harder angle steels; TAPM2020A, TAPM2020C single-edged shears save raw materials.
The cut surface is neat.
The machining process is numerically controlled and the operation is very convenient, which can realize automated, high-precision, multi-variety and large-scale production.
The typing unit adopts a closed body with good rigidity.
The typewriter is equipped with four sets of programmable typehead boxes, and the typing distance can be set at will.
The CNC feeding trolley is driven by a servo motor, with feedback from a photoelectric encoder, closed-loop control, and high positioning accuracy.
The hydraulic system mainly completes punching, cutting, stamping, pressing and letter box replacement.
The control system consists of a host computer, servo motor, PLC, external detection sensors, etc.
The workpiece program supports manual programming and can also be generated by layout software.
workpiece processing program.
The key liquid, gas and electrical components are all from well-known domestic and foreign brands.
It has the function of free cutting and can process fixed-length materials.
With fault self-diagnosis function.
Technical Parameters:
Model | LSBL2020 | LSAPM2020 | LSAPM2020A | LSAPM2020C |
Processing angle steel range (mm) | 63x63x4~200x200x20 | 63x63x4~200x200x20 | 63x63x4~200x200x20 | 63x63x4~200x200x20 |
Maximum punching (dia. x thickness) (mm) | Φ26x20(Q420) | Φ26x20(Q420) | Φ26x20(Q420) | Φ26x20(Q420) |
Punching nominal force (kN) | 1000 | 1200 | 1200 | 1200 |
Typing force(kN) | 800 | 1030 | 1030 | 1030 |
Cutting force(kN) | 1400 | 2100 | 4300 | 4300 |
Maximum length of blank (m) | 14 | 14 | 14 | 14 |
Max. length of finished product (m) | 12 | 12 | 12 | 12 |
Number of punches per side | 3 | 3 | 3 | 3 |
Number of print header groups | 4 | 4 | 4 | 4 |
Number of prefixes per group | 12 | 15 | 15 | 15 |
Head size (mm) | 14x10x19 | |||
Number of CNC axes | 3 | |||
Cut off method | Double edge shear | Double edge shear | Double edge shear | Double edge shear |
Max. feeding speed of angle steel (m/min) | 60 | 60 | 60 | 60 |
Programmatically | Lofting software or manual programming | |||
Overall dimensions (m) | Approx. 32×7×3 | Approx. 32×7×3 | Approx. 32×7×3 | Approx. 32×7×3 |
Machine Net Weight(Kg) | Approximately 16,500 | Approximately 17,000 | Approximately 17,500 | Approximately 17,500 |
