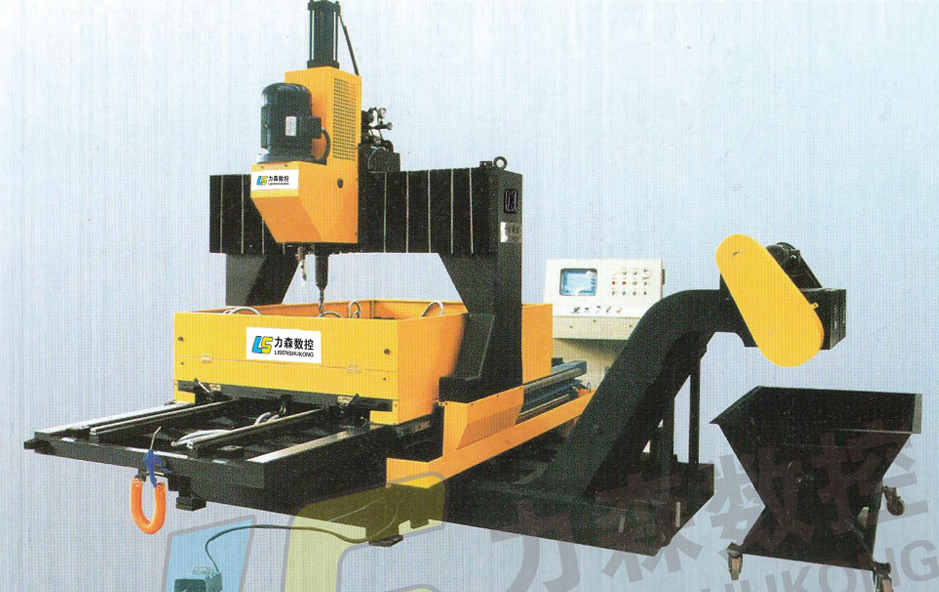

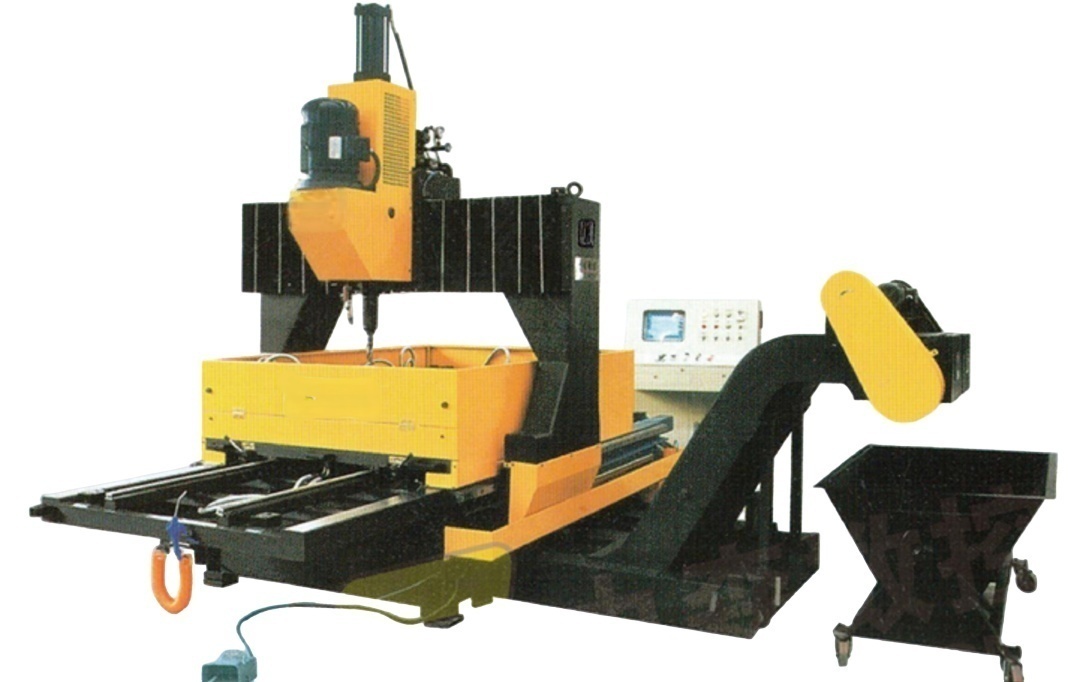

CNC Steel Plate Drilling Machine

Product industry

It can be used for drilling holes in connection plates and anchor plates in industries.

such as steel structures, iron towers, bridges, and mechanical processing, and can also be used for drilling holes in flanges.

Features:

The CNC slide drilling power head can control the hole depth and has the functions of drilling blind holes, expanding holes and chamfering.

PLC controls servo automatic positioning to ensure drilling position accuracy.

Four processing areas and 12 hydraulic clamps can clamp four groups of workpieces and load and unload workpieces while drilling.

PLC control, LCD display.

The programming software is based on the Windows platform and can directly convert AutoCAD drawings.

CAD drawing to generate processing data, and supports part programs generated by TEKLA lofting software.

Automatic chip removal and coolant circulation.

Key mechanical, hydraulic, and electrical components are all from well-known domestic and foreign brands.

The whole machine is optimized and integrated, and there is no need to make an equipment foundation.

Technical Parameters:

Model			LSPD2012	LSPD2016	LSPD3016	LSPD3020
Maximum workpiece size (mm)			2000x1200	2000x1600	3000x1600	3000x2000
Maximum workpiece thickness			Max. 100mm, steel plates can be processed in overlapping
Spindle Morse taper hole			#4
Maximum drilling diameter			dia. 50mm
Spindle feed mode			Servo/Hydraulic
Speed (rpm)	Maximum feed stroke (mm)		120-560 (stepless speed regulation)
	Drilling spindle		350(Servo)/180(Hydraulic)
	Motor power (kW)		5.5
	Number of clamps		12
	Clamping force(kN)		7.5
Motor power (kW)	Servo Motor	X-axis	1.3			1.5
		Y axis	1.3			1.5
		Z axis (not available for hydraulic feed)	0.85			1
	Hydraulic system motor		2.2
	Chip conveyor drive motor		0.4
	cooling motor		0.43
Overall dimensions (length x width x height) (m)			~ 4.5x2.21x2.85	~ 4.5x2.61x2.85	~ 5.5x2.61x2.85	~ 5.5x3.01x2.85
Machine Net Weight(Kg)			~ 5200	~ 6200	~ 7200	~ 8200
