Electric Tower Production Line
CNC Angle Steel Drilling Machine
stock number: 627, it is written on 05/Juna/2025- product description
- Technical Parameters

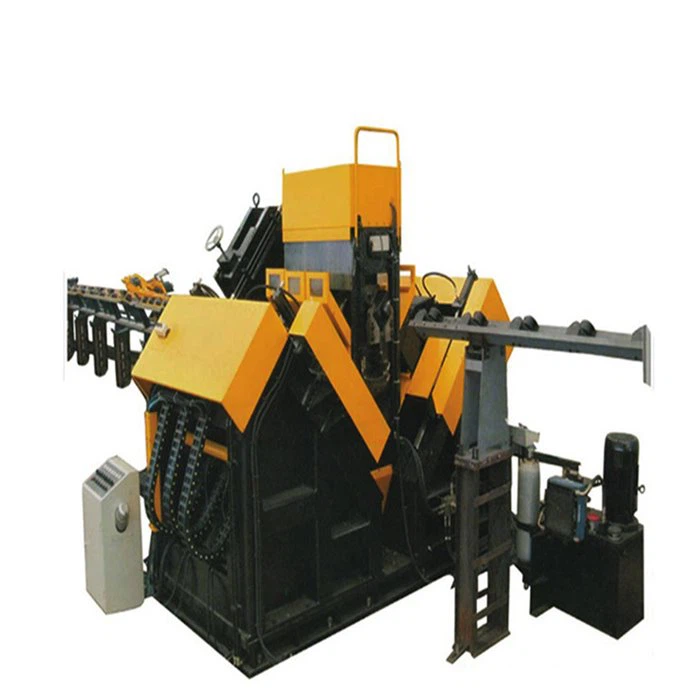

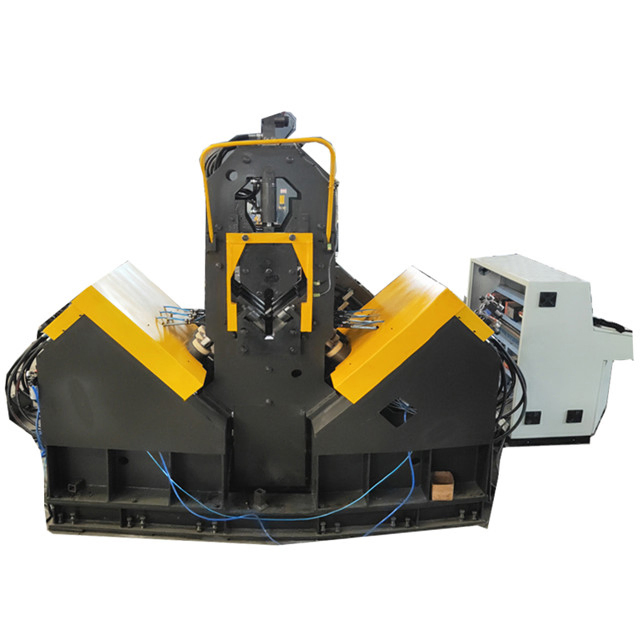

CNC Angle Steel Drilling Machine
Models: LSBL2532/LSBL3635
Product Industry:
This machine is special equipment for the fully automated production of angle steel, typing and drilling for power angle steel towers and communication angle steel towers.
Features:
The uniquely designed water-spraying tray completely solves the problems of water ingress and spindle locking and has obtained a national patent.
Adopting CNC technology and servo motor feeding, it has high efficiency and stable workpiece precision.
The key liquid, gas, and electrical components are all from well-known domestic and foreign brands.
The programming is simple, and the program data generated by the layout software can be used directly.
The computer has a Chinese/English interface, is easy to operate, and can display workpiece graphics.
Printing and drilling are all done automatically, and the finished products are unloaded by pneumatic tipping to reduce the labor intensity of workers.
It has a fault self-diagnosis function.
Technical Parameters:
LSBL2532 | LSBL3635 | |
Processing angle steel range (mm) | 140×140×10~250×250×32 | 140×140×10~3600×360×35 |
Typing force (kN) | 1030 | 1030 |
Maximum length of blank (m) | 14 | 14 |
Maximum length of finished product (m) | 12 | 12 |
Number of drill bits per side | 3 | 3 |
Number of print header groups | 1 | 1 |
Number of prefixes | 15 | 15 |
Head size (mm) | 14x10x19 | 14x10x19 |
Distance adjustment range (mm) | 20~220 | 20~220 |
Number of CNC axes | 3 | 3 |
Spindle speed (r/min) | 120-560 Inverter stepless speed regulation | |
Max. feeding speed of angle steel (m/min) | 40 | 40 |
Drilling diameter (mm) | Ф17.5~Ф40 | Ф17.5~Ф40 |
Drilling spindle travel (mm) | 180 | 180 |
Programmatically | Lofting software or manual programming | |
Machine dimensions (m) | Appr. 32x7.5x3 | Appr. 32x8.9x3.2 |
Machine weight (Kg) | Approximately 17,000 | Approximately 18,800 |
