used slitter

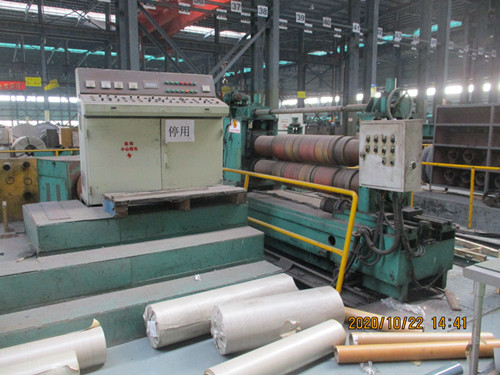

SL No.126 3*1800mm used slitter(double head)
The machine was made in 2003,dismantle time on Nov.10,2020.The written time is October 22,2020- product description
- Technical Parameters
A.Technical parameters:
Serial number | Parameter content | Specifications | Unit | remarks | ||||
1 | Coil width | 800—1800 | Mm | |||||
2 | Coil thickness | 0.5—3 | Mm | |||||
3 | Coil ID diameter | F508,F610,F760 | Mm | |||||
4 | Coil OD diameter | ≤F2200 | Mm | |||||
5 | Maximum coil weight | 30000 | Kg | |||||
6 | Maximum recoiler weight | 20000 | Kg | |||||
7 | Speed | 0-120 | m/min | |||||
8 | Maximum weight of scrap | ≤150 | Kg | |||||
9 | Scrap width | 3-15 | Mm | |||||
10 | Slitting strips | 6-30 | strip | It will be increased according to the change of plate thickness | ||||

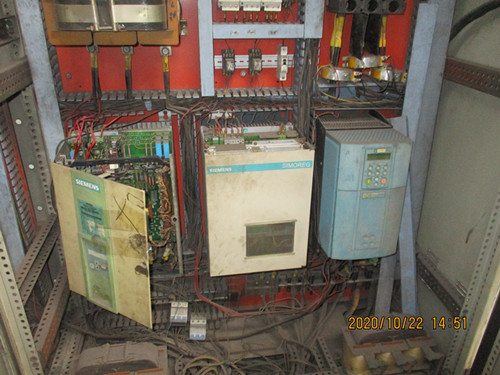

11 | Motor power | Installation position | Motor name | Power | Rotational speed | Quantity | Power specifications | |
Coil car | BWY2215-11*11-2.2 | 2.2kw | 1450rpm | 1 | AC380V | |||
Uncoiler | XWED2.2-74-1/319 | 2.2kw | 1450rpm | 1 | AC380V | |||
Roller pressing device | BWY15-59-0.75 | 0.75kw | 960rpm | 1 | AC380V | |||
Three roll straightener | Z4-180-11 | 37kw | 1500rpm | 1 | DC440V | |||
Pinch roll | RV75-60-1.1-F4 | 1.1kw | 1450rpm | 1 | AC380V | |||
Slitting unit | Z4-180-11 | 37kw | 1500rpm | 1 | DC440V | |||
BWY12-43-0.25 | 0.25kw | 1450rpm | 3 | AC380V | ||||
BWY15-35-1.1 | 1.1kw | 1450rpm | 2 | AC380V | ||||
BWY18-59-1.1 | 1.1kw | 1450rpm | 2 | AC380V | ||||
Exchange table | BWEY2215-11*11-2.2 | 2.2kw | 1450rpm | 1 | AC380V | |||
Scrap coiler | YLJ112M-10-4 | 10Nm | 1500rpm | 2 | AC380V | |||
Coiler | Z4-225-31 | 75kw | 750rpm | 1 | DC440V | |||
Unloading car | BWY18-4.3-1.5 | 1.5kw | 1450rpm | 1 | AC380V | |||

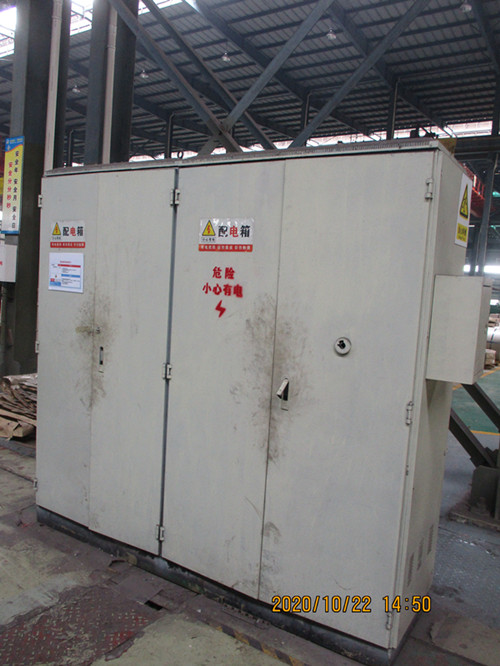

Hydraulic system | Y132M-4 | 7.5kw | 1450rpm | 1 | AC380V | |||
12 | Total power | Approx 174.6kw | ||||||
13 | Total machine weight | Approx 71100kg | ||||||
14 | Dimension | 28320×9500mm | ||||||
Material is carbon steel
B. Scope of supply:
1.Coil car&storage saddle

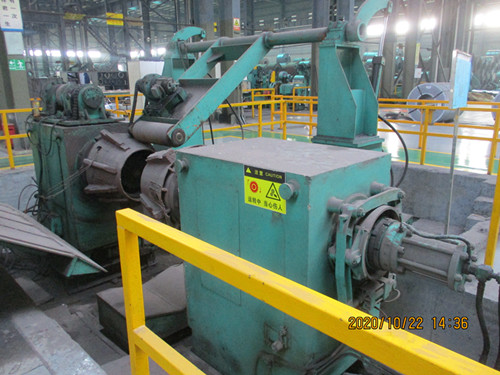

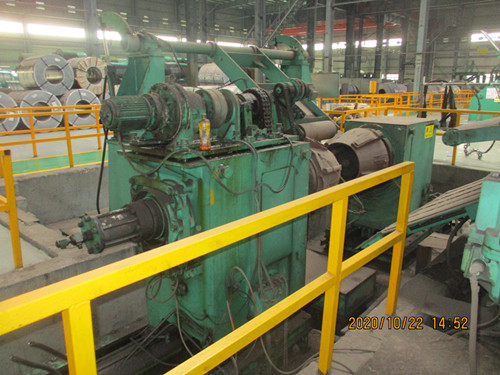

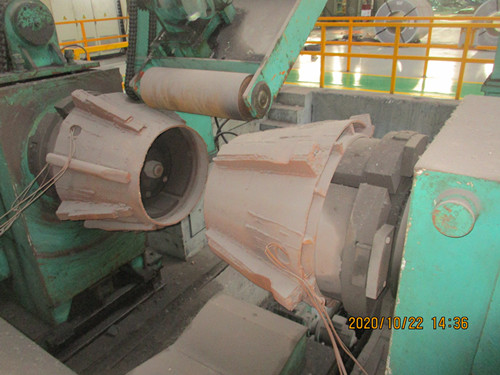

2.Double head uncoiler
3.Roller pressing device and feeding guide plate device

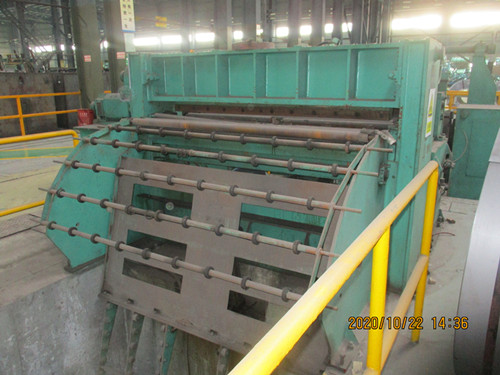

4.Pinch straightener and measuring device
5.Plate shears
6.Bridge
7.Guiding device
8.Pinch roll
9.Slitter(two set)&exchange table
10.Scrap coiler
11.Bridge
12.Separator
13.Tension unit
14.Tension roll & supporting board
15.Recoiler
16.Hydraulic system
17.Unloading car

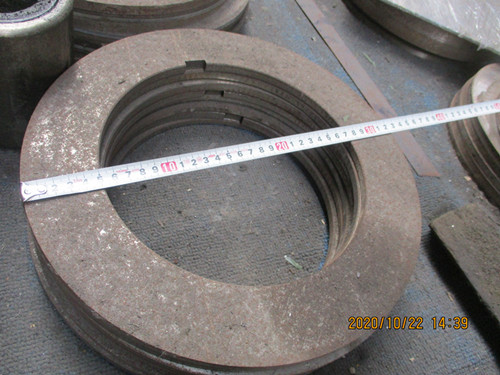

18.blades and tools
