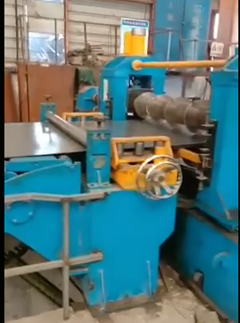

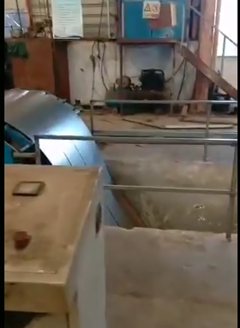

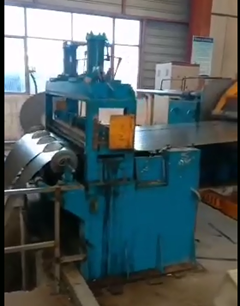

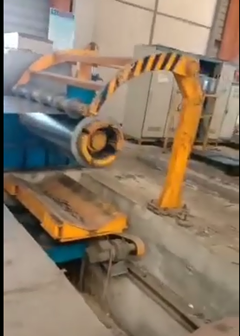

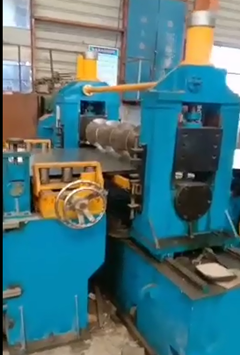

SL No.80 Used 1.5*1250mm Slitter

1.5*1250mm Slitter,it is made in 2014-2015.It is online and can run now.The written time is March 23,2020.
  • product description
  • Technical Parameters

Material thickness: 0.15--1.5mm cold rolled steel

                                0.15--1.2mm, silicon steel

Entry material parameters

Coil width Max 1250mm

 Max coil weight 20tons

Coil ID 508mm

Coil OD Max 1800mm

Exit material parameters

Coil weight Max 10tons

Coil ID 508mm

Coil OD Max 1800mm

Slitting speed Max 120m/min

Slitting shaft diameter:160mm

Slitting number:8

Uncoiler motor power:AC 11KW

Slitter motor power  AC 37KW

Recoiler motor power;AC 75KW

Total power 132KW

Voltage 380V

Including 60 slitter blades
