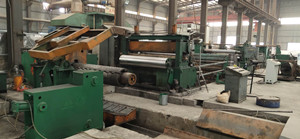

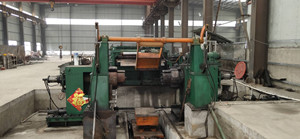

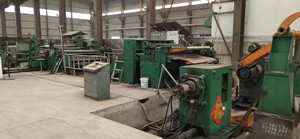

SL No.107 Used 4.5*1550mm Slitter.

Used 4.5*1550mm Slitter.It is made in 2011.The written time is August 28,2020.

  • product description
  • Technical Parameters

Material Mild steel,Hot rolled steel

Thickness range 1-4.5mm

Coil width range Max 1550mm

Max uncoiler coil weight 30tons

Recoiler coil weight Max 20-25tons

Coil ID 508mm

Slitting speed Max 100m/min

Main motor power 37KW

Recoiler motor power 144KW

Slitter blade shaft diameter 220mm

Slitter blades number  Over 50PCS

Total machine weight: Approximate 60t

Scope of supply:

Coil car

Double head Uncoiler

3 Roll leveler


Centering device



Tension unit


Coil car

Electric system

Hydraulic system.
