Parameters:

Material:stainless steel 304,310,316

Thickness:4-16 mm

Max coil width:2000mm

Max coil weight:35tons

Coil ID:508mm,610mm,760mm

Coil OD:Max 2100mm

Cut to length width:2250mm

Slitter shaft diameter：400mm

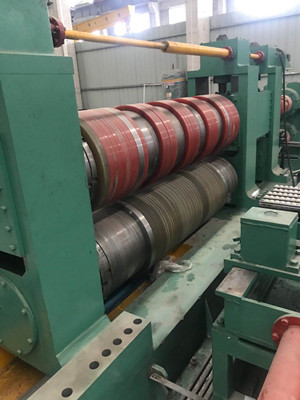

Slitter blade:400*600*50mm,H13K

Pinching roll diameter: 300mm 2rolls

Pre-leveler roll diameter:250mm 9rolls

Finishing-leveler roll diameter:168mm 2+15rolls

Total power:685KW

Feeding direction:According to the requirement of user

Scope of supply:

V-shaped pre-discharging table

Hydraulic coil car

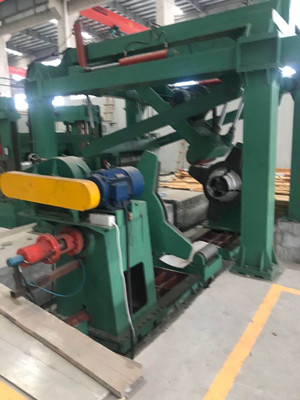

Hydraulic discharging machine

4-column Hydraulic pressing straight head device

Shovel head aand prying device

Pinching and pre-leveler

Transition table

Guiding device

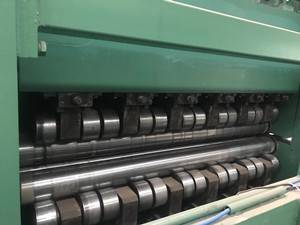

Trimming unit

Edge wire coiler

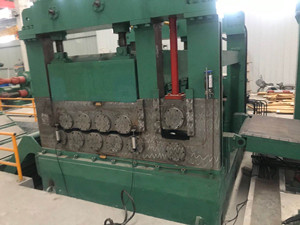

Finish leveler

coding and sizing machine

Tailboard pinching mechanism

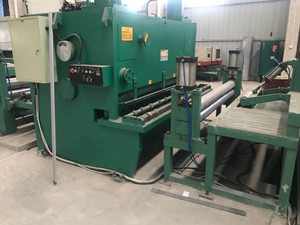

Cross cutting machine

Head and tail plate discharging car

Swing pneumatic pinching machine

Pneumatic blanking machine

Double X lifting table

Discharging car

Hydraulic system

Pneumatic system

Electric control system
