Cut to Length Machine
used 2010 Shanghai Huayun CTL8-20x2200mm
No：661 written date：25th， March ，2026
- product description
- Technical Parameters
thickness range:8-20mm
max coil width:2200mm
max coil weight:32 ton
material:Q235B carbon steel
1st leveler motor:160kw
2nd leveler motor:220kw
shearing machine motor:45kw
edge trimmer motor:75kw
min coil ID:7600mm
max coil OD:1800mm

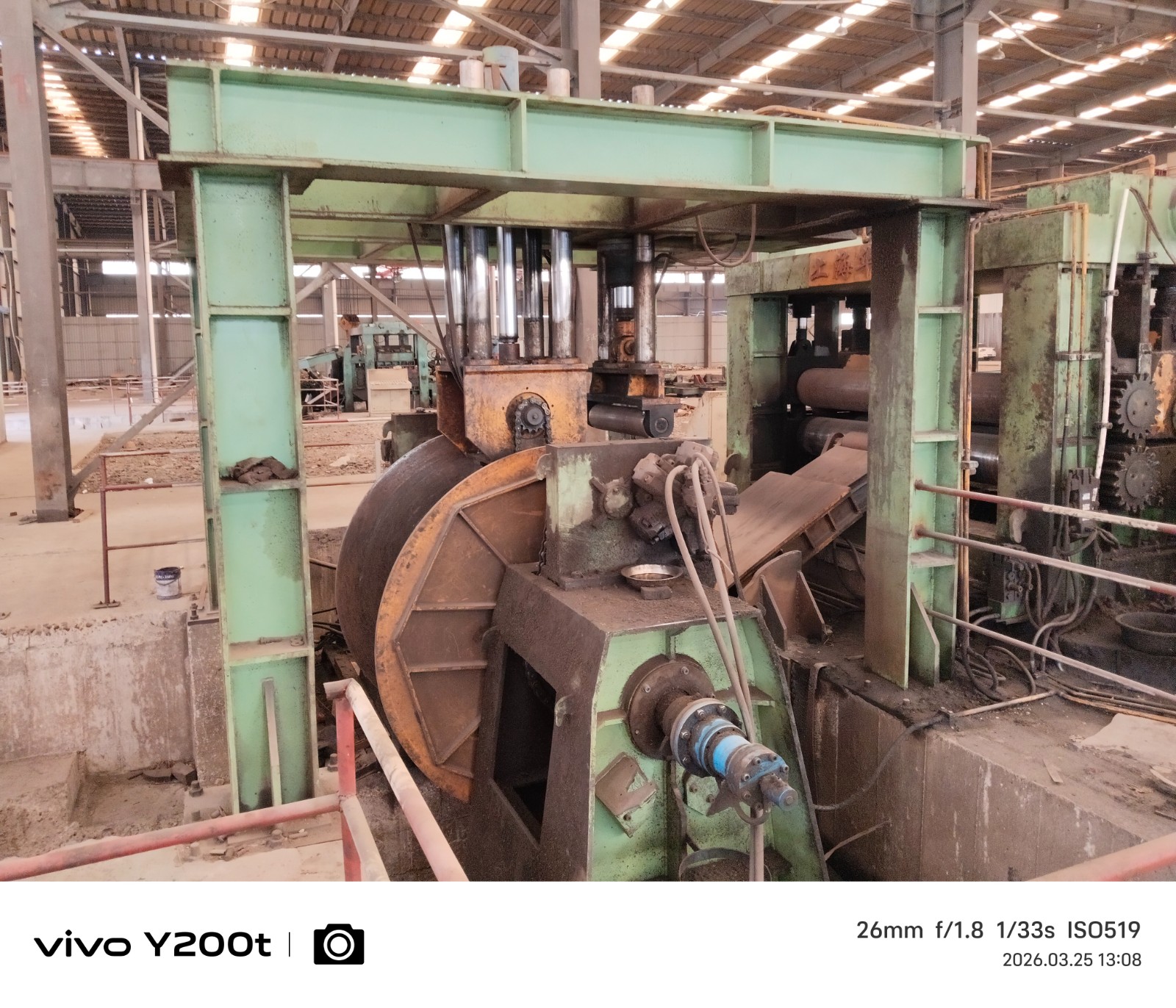

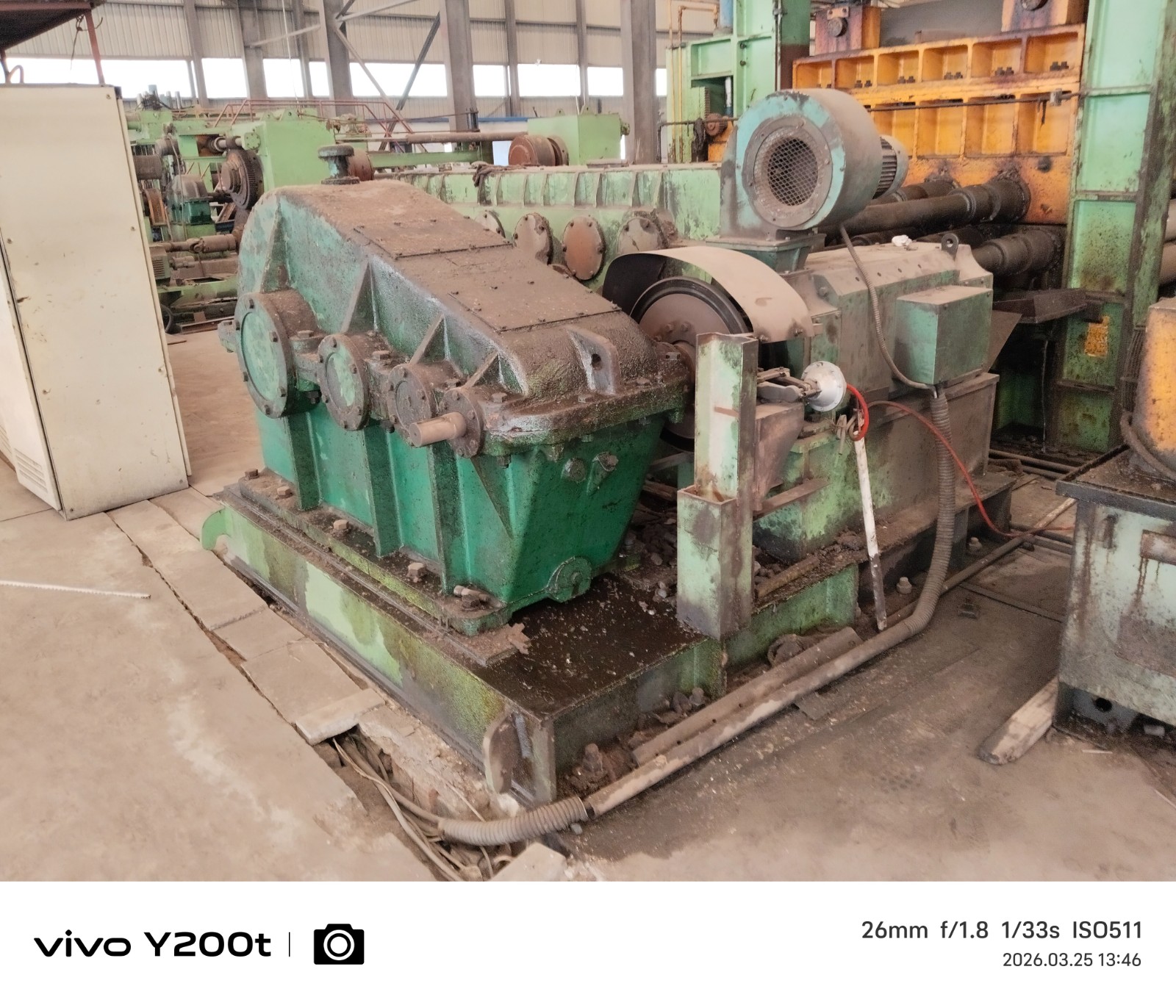

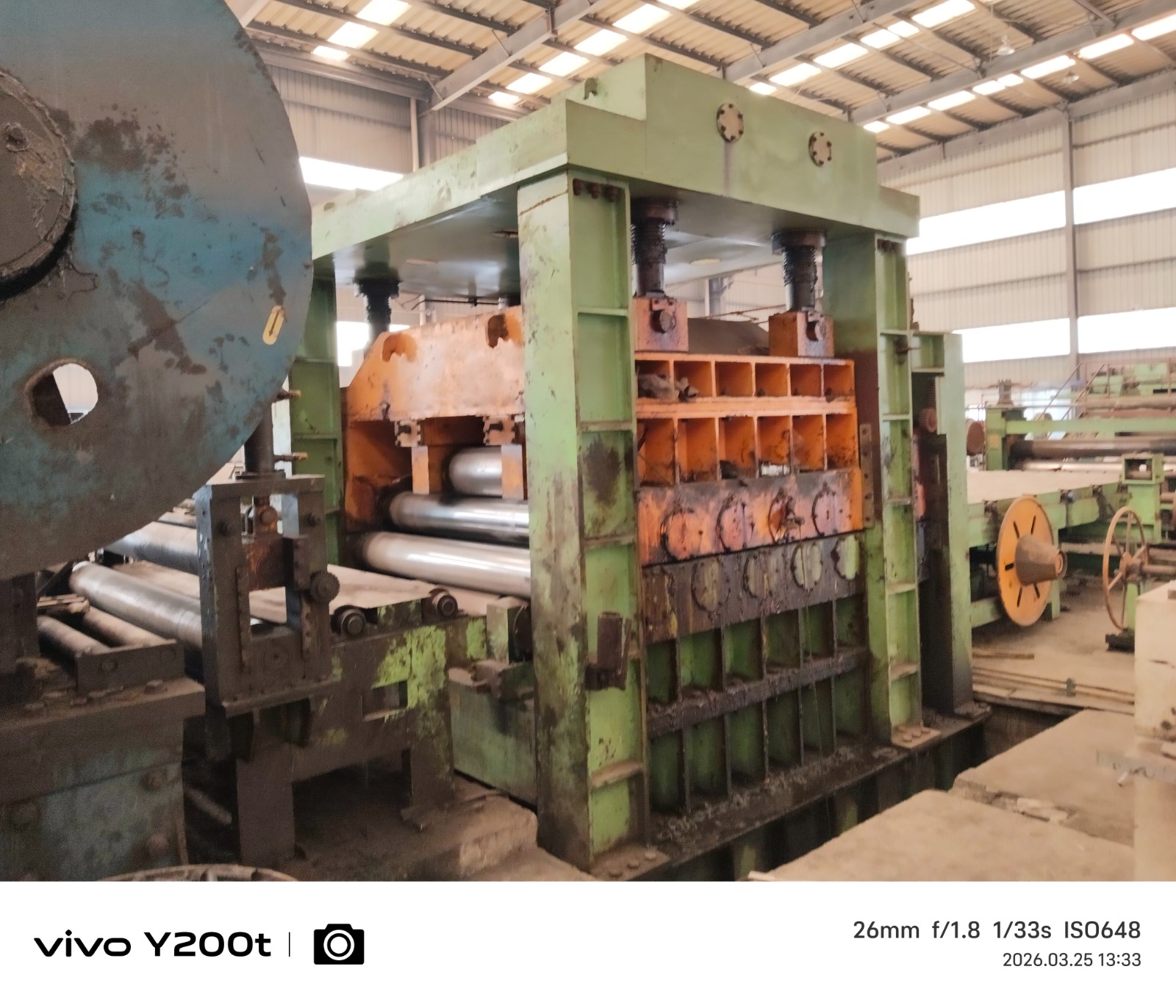

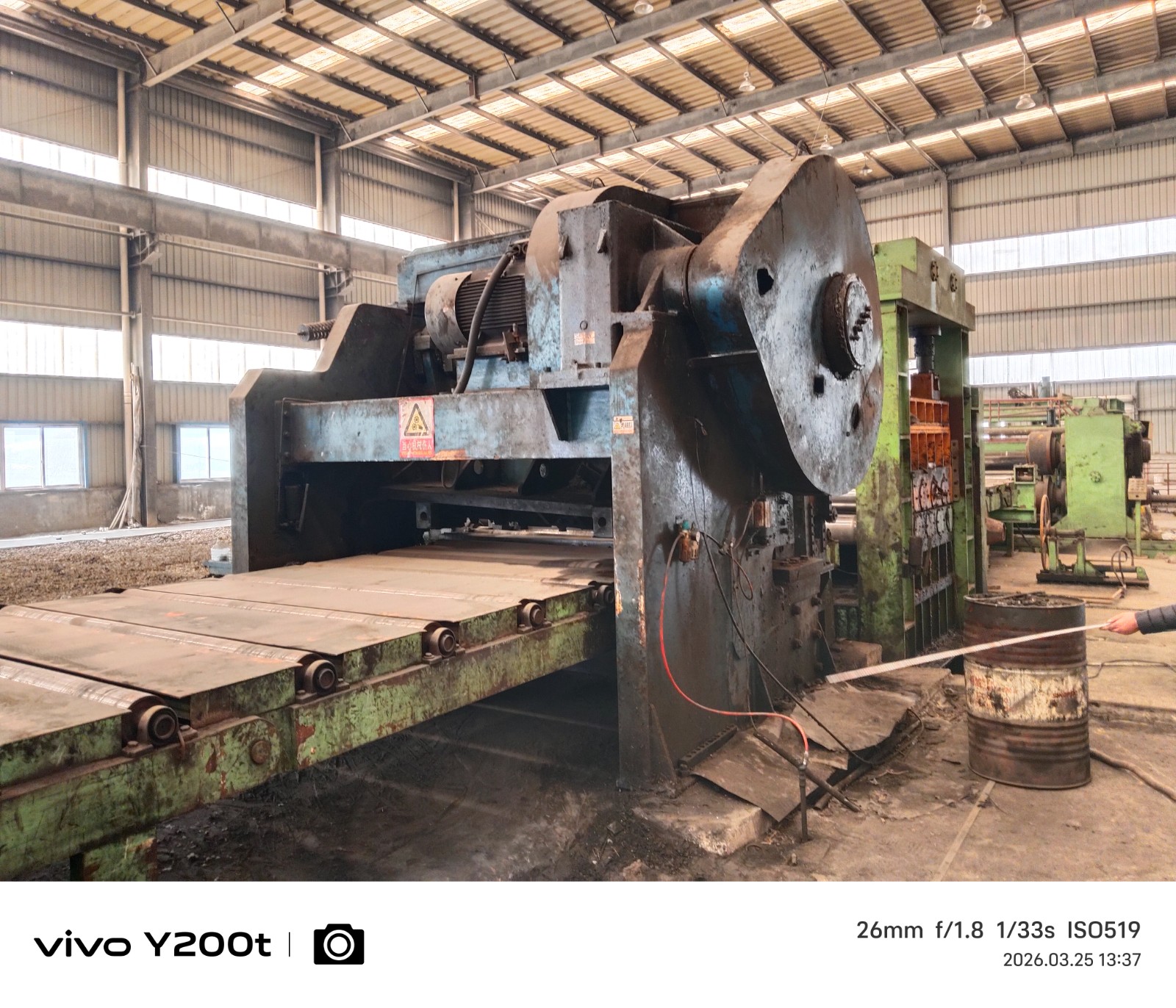

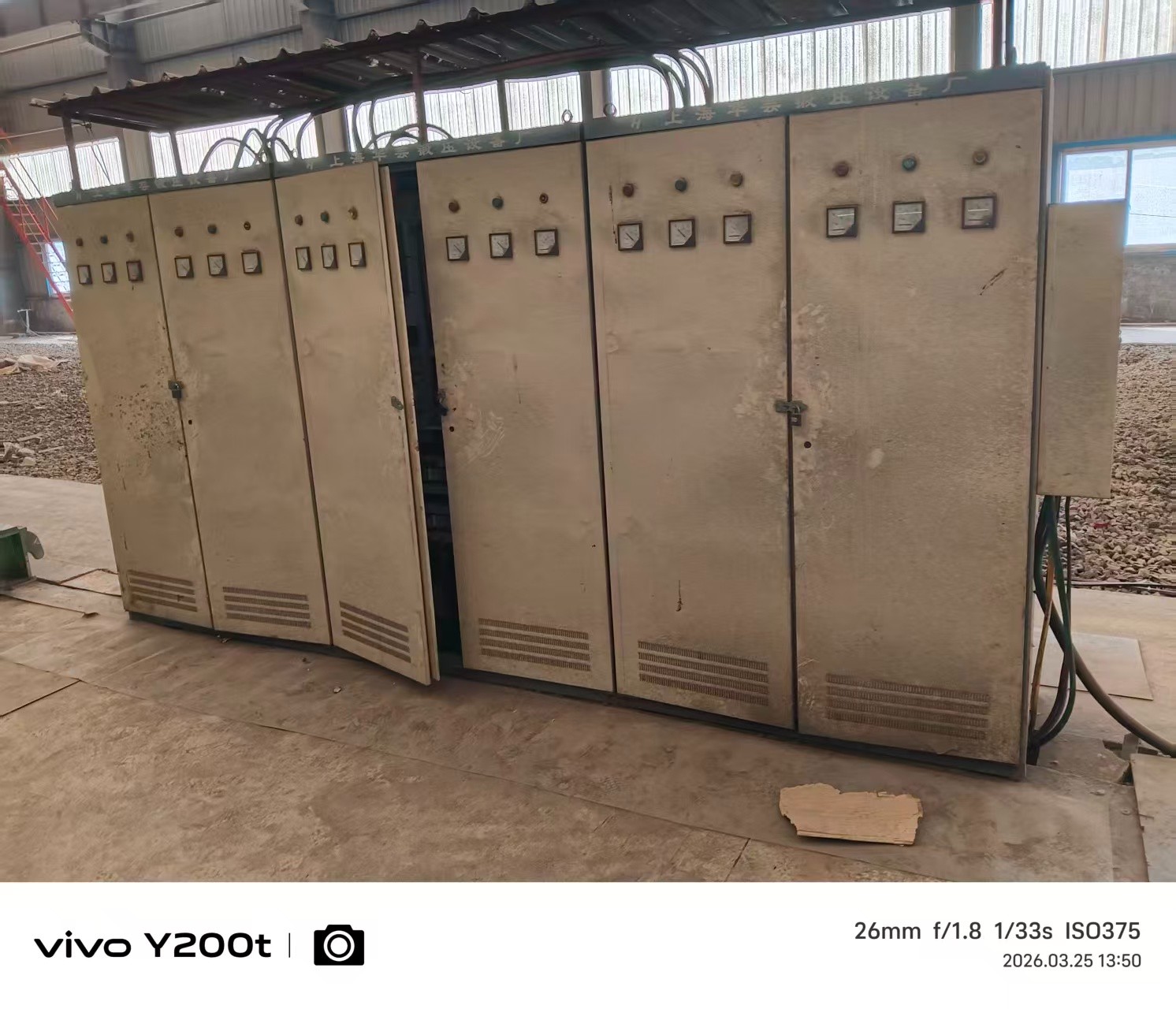

scope of supply:dual uncoiler, uncoiler coil car,1st 2+5roll 4hi leveler,centering device,Concave-convex Roller stand,edge trimmer and edge rewinder, 2nd 2+9roll 4 hi leveler,feeding machine, conveying table, shear,operation table, electric cabinet,hydraulic system,electric system.
