1

Raw   materials

Q235

2

Sheet   thickness

1.5～6.0mm

3

Sheet width

800～1600mm

4

Coil outer   diameter

≤Φ2100mm

5

Coil inner   diameter

Φ508mm～Φ610mm～Φ760mm

6

Maximum   weight of roll material

30T

7

Yield   Strength

≤350Mpa

1

Cut width

800-1600mm

2

Cut length

500-3500mm

3

Finished   roll weight

Max:8T

4

Stack chop   height

500mm

5

Finished   product length accuracy

±0.8mm

6

Finished   diagonal

≤1.2mm/3m

1

 line speed

0-40m/min（Stepless   speed regulation）

2

Threading   speed

0～15m/min

3

power supply

4

Installed   capacity

About 210KW

5

production   operators

1 skilled   worker and 1 general worker

6

Covered area

Approximately   30m long x 10m wide

7

Operational   aspects

Facing the   operating table from ( ) to ( )

8

Unit color

Customerized   + safety and daily maintenance signs

1

Storage   table

1 set

3

Coil car

1 set

4

Hydraulic   inner tension double  decoiler

1 set

5

Feeding   device, 2+3 pinch leveling

1 set

6

Transitional   table

1 set

7

Side   guider&press

1 set

12

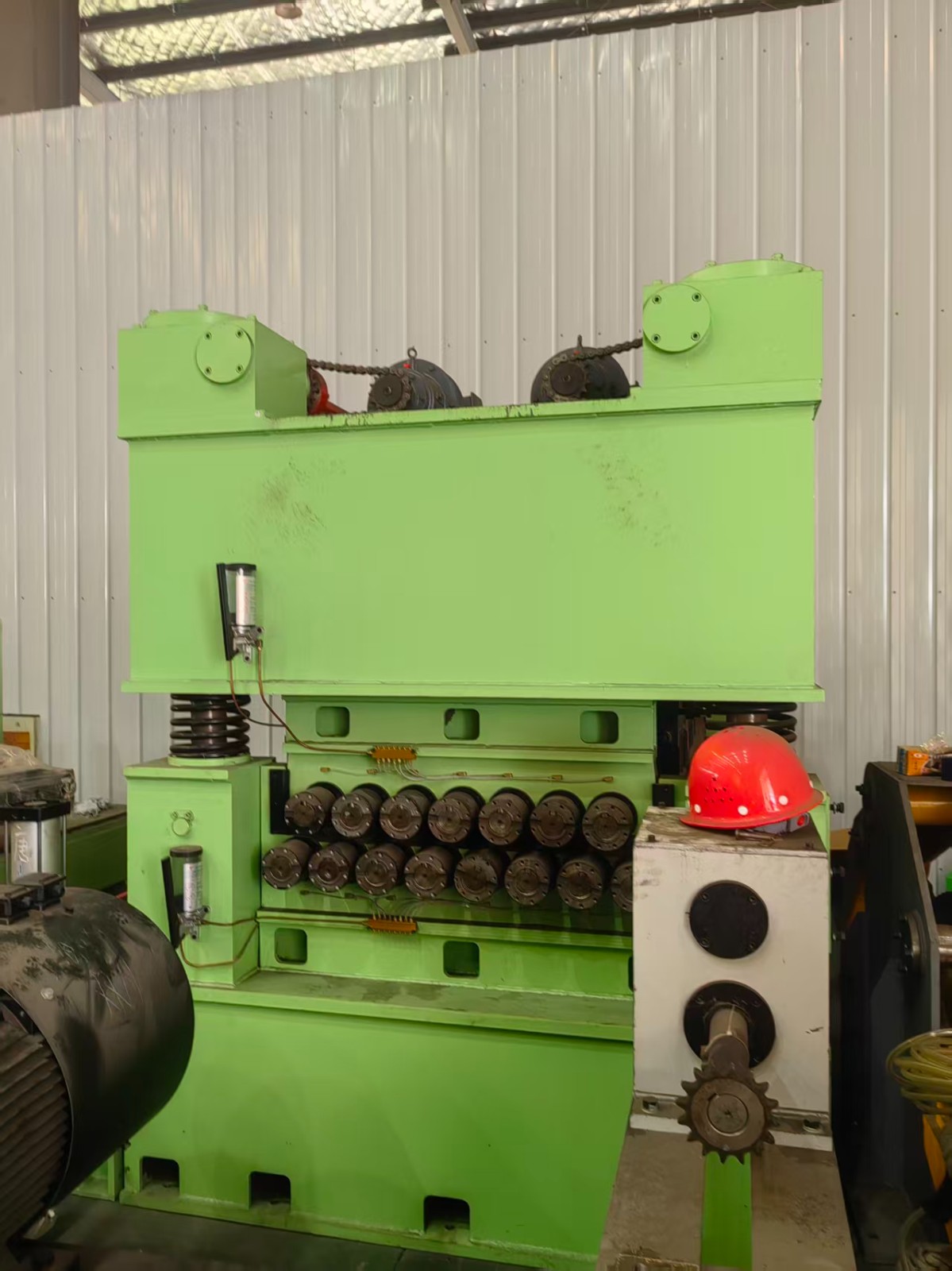

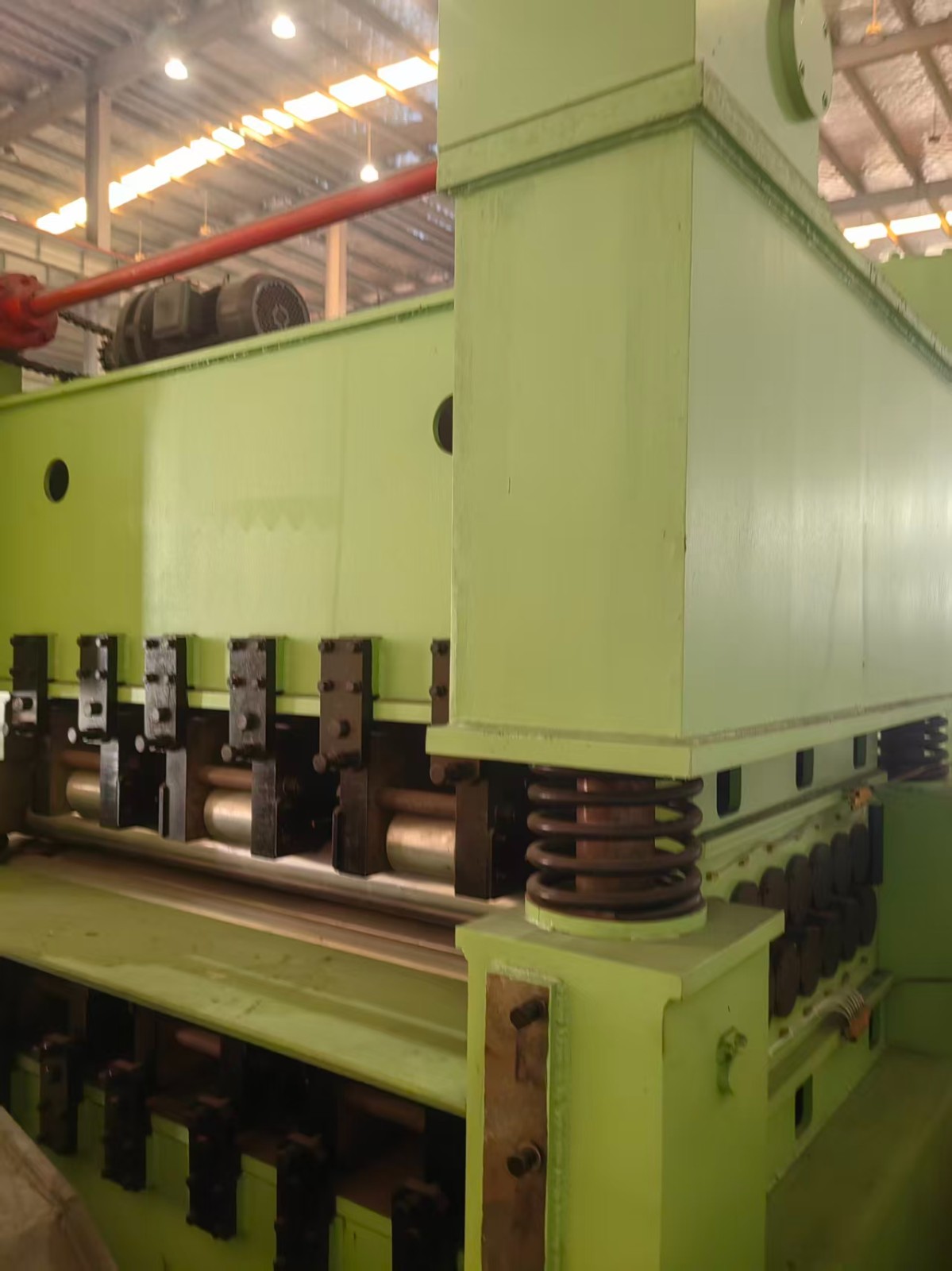

Leveling   machine

2 units

13

Coding   organization

1 set

14

Tracking   shears (moving shears)

1 set

15

Belt   conveyor table 6 meters

1 set

16

Stacker   mechanism 6 meters

1 set

17

Unloading   car (one horizontal and one vertical)

2 units

18

Hydraulic   system

1 set

19

Pneumatic   system

1 set

20

Control System

1 set
