used 2009 Yuanda 10-25x2500mm cut to length line

No:667, Written date: April 27,2026

product description
Technical Parameters

material thickeness:10-25mm

max coil width:2500mm

Coil ID:760mm, Coil OD:2100mm

max coil weight: 35 ton

material type: Q235 carbon steel

manufacture date:2009

approx total weight: 160 ton

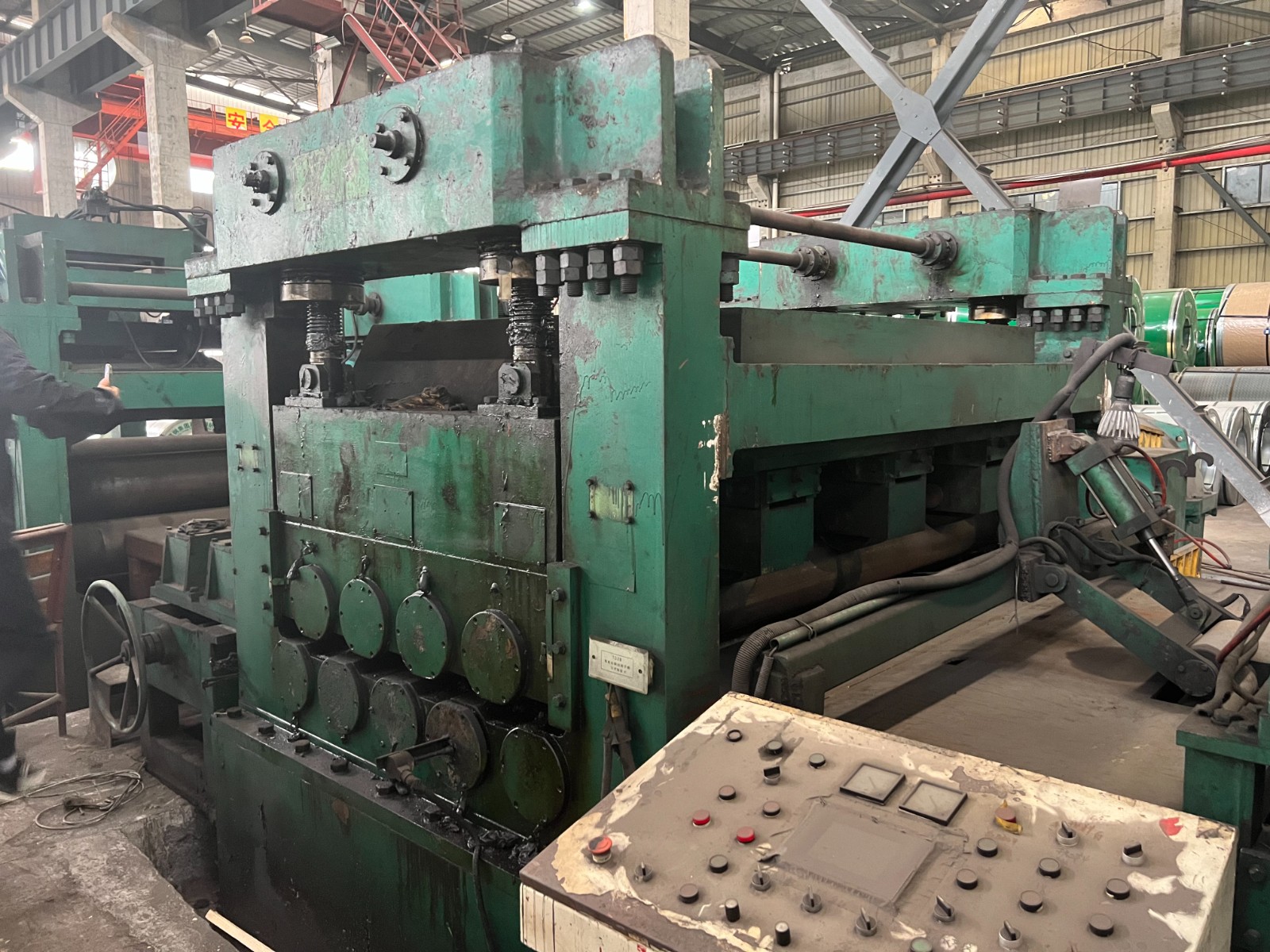

1st rough leveler roll width 2700mm,roll diameter 320mm, motor 132kw

2nd precise leveler roll diameter 260mm, motor 250kw

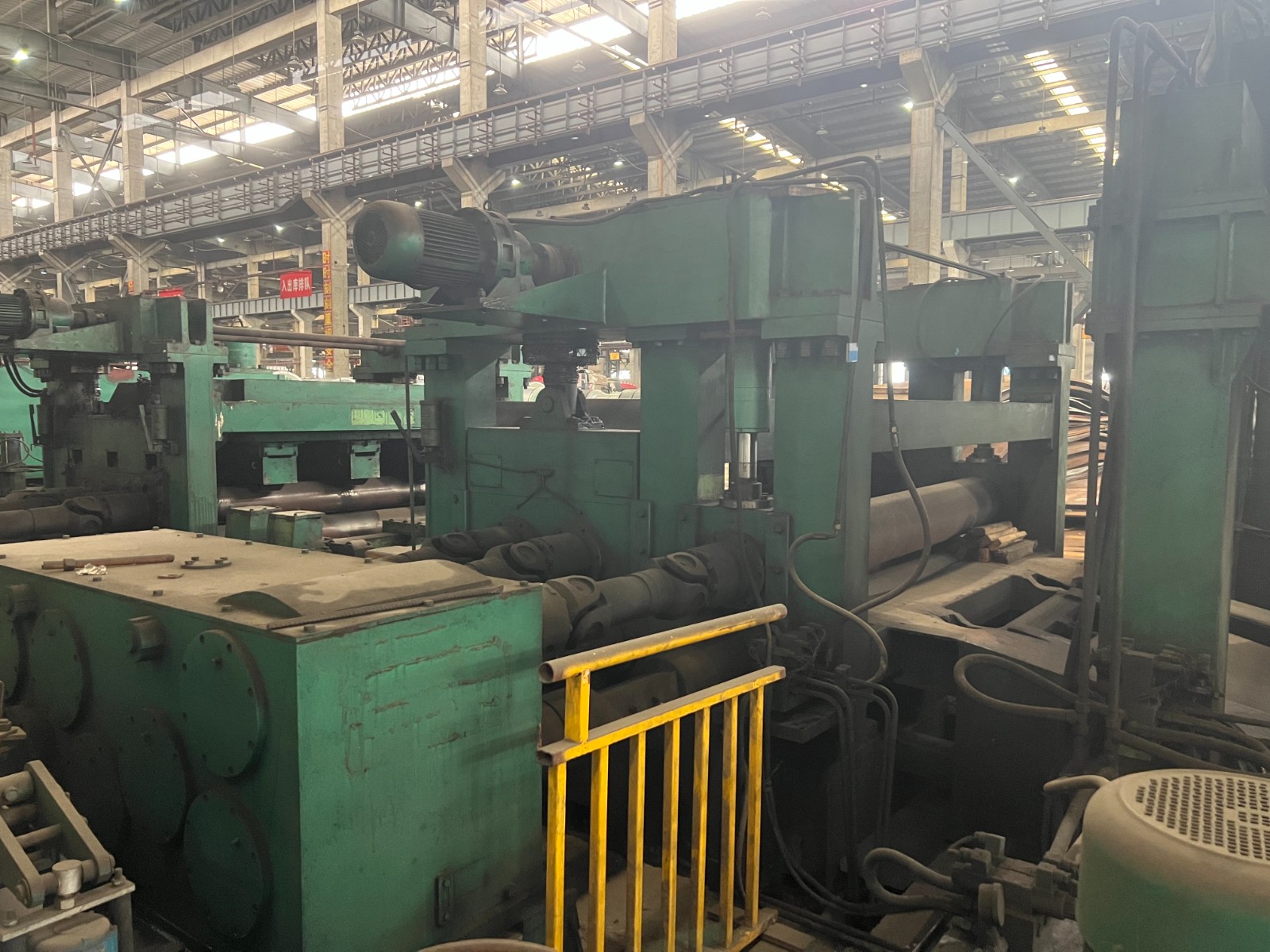

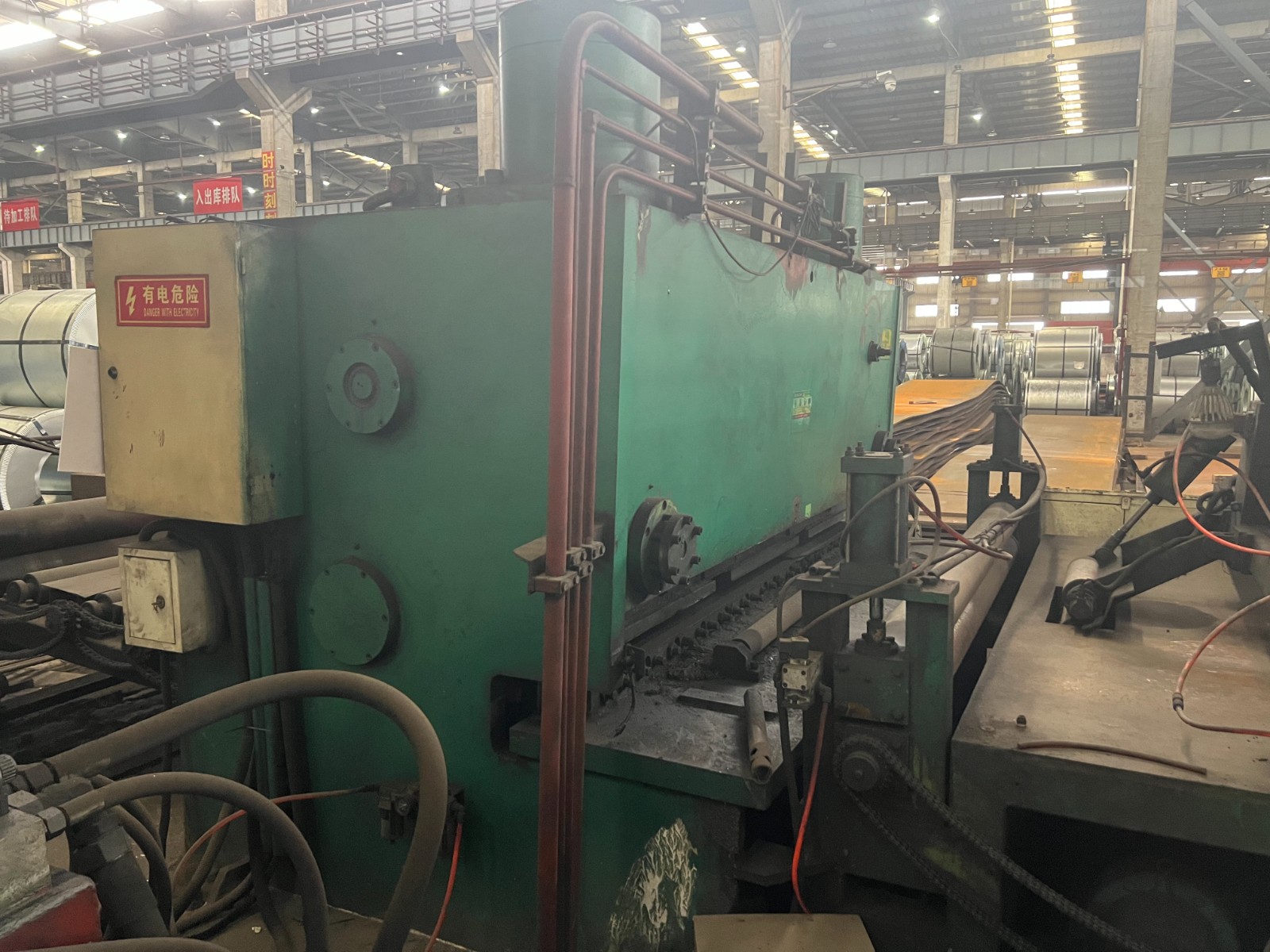

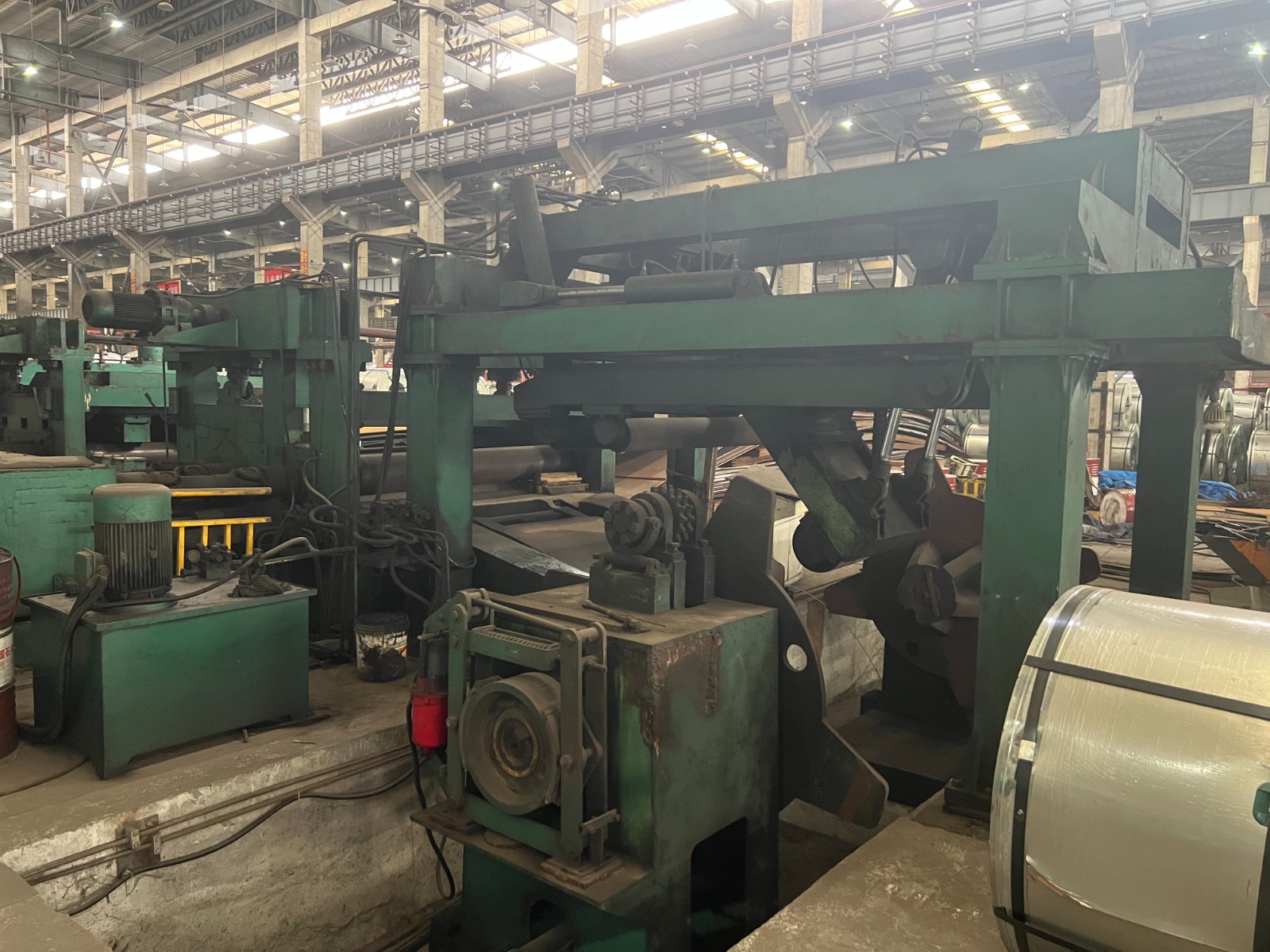

Scope of supply: gantry with a double con uncoiler, 2+5roller 4 hi rough leveler, centering device, 2nd precise 9 rollers leveler,shear, electric system,hydraulic system

doesnot include runout table
