3-16/1850 High-Strength Automotive Steel Slitting and Cut-to-Length Line

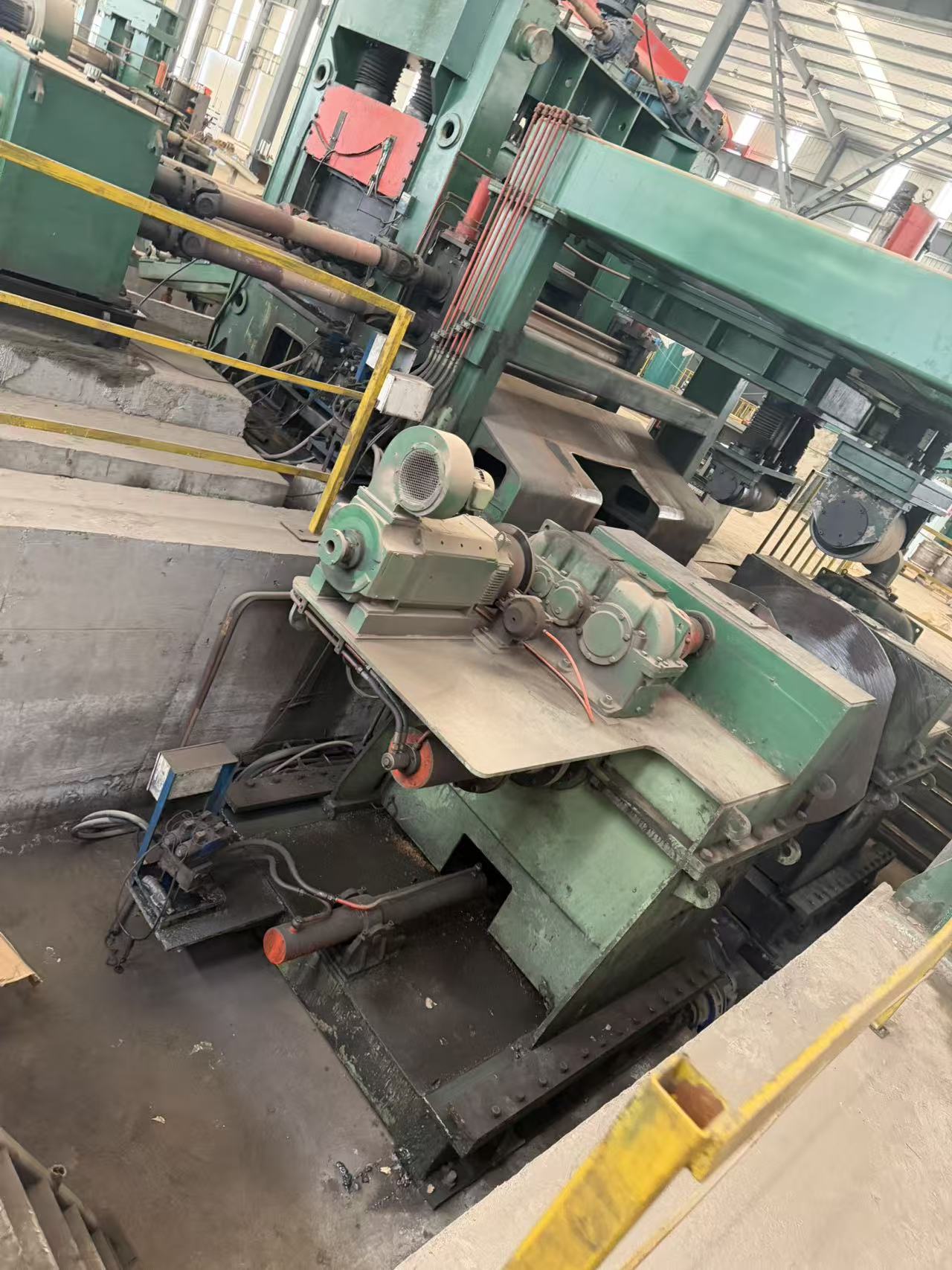

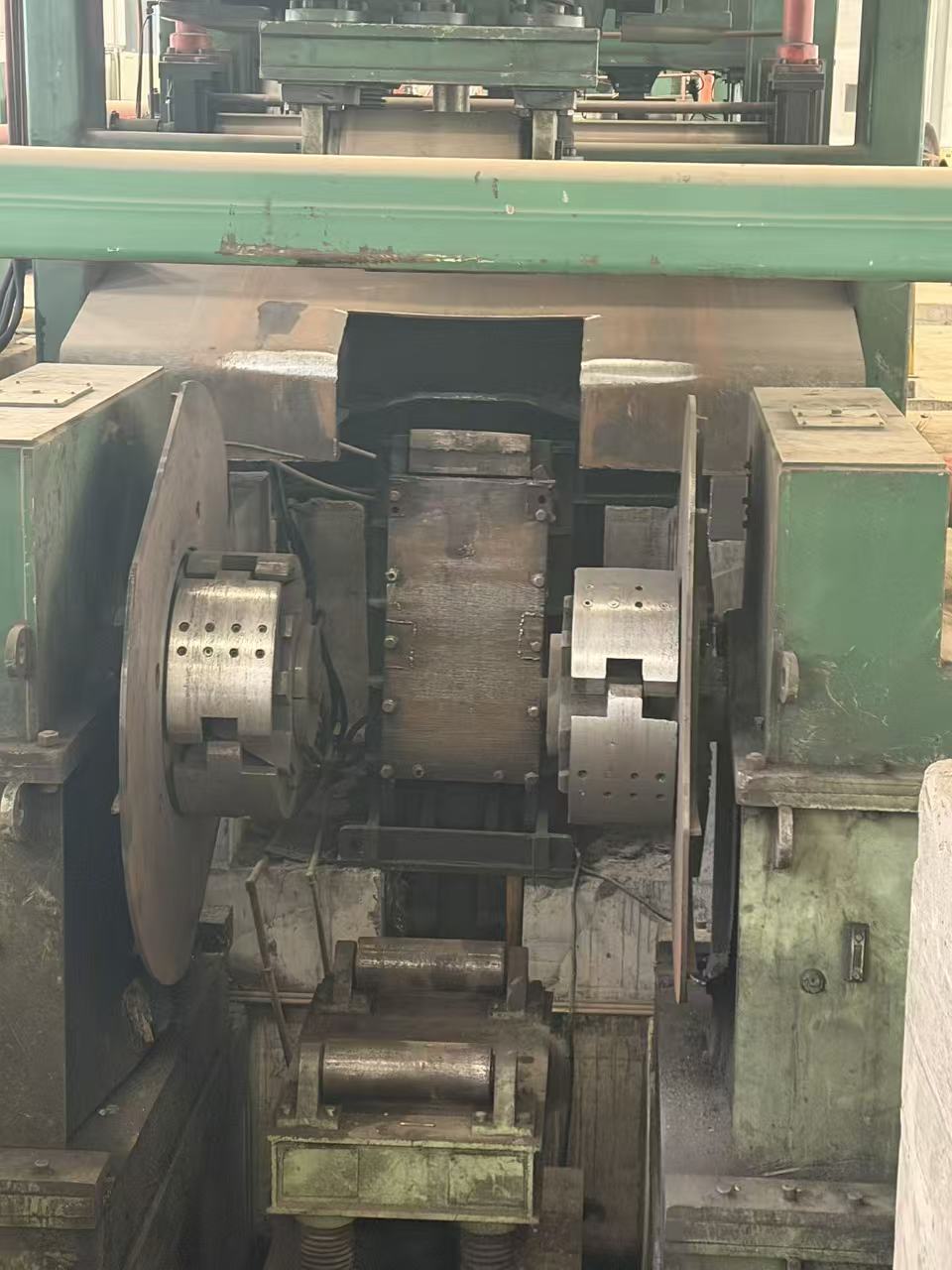

Uncoiler: double cone expandable mandrel type (double expanding head uncoiler), coil ID 750mm, capacity 35 tons, twin DC motors 37kW each

Initial leveler (pre-leveller): 2+7 rolls, roll diameter 220mm, motor power 90kW

Slitter: 360mm slitter arbor, motor 110kW / 750 rpm

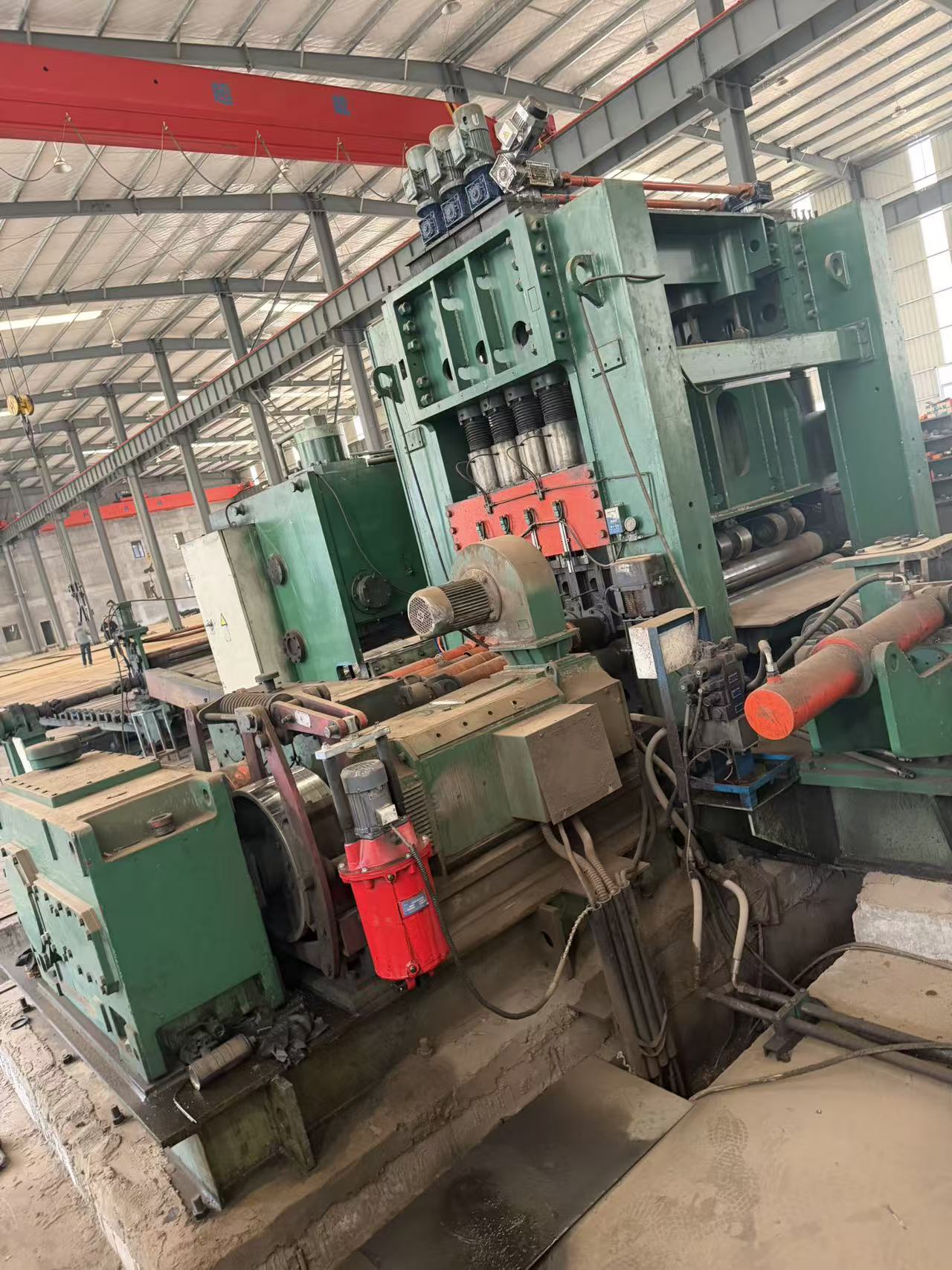

Precision leveler (finishing leveler): 11 rolls, single-roll control, roll diameter 180mm, motor 160kW / 1000 rpm

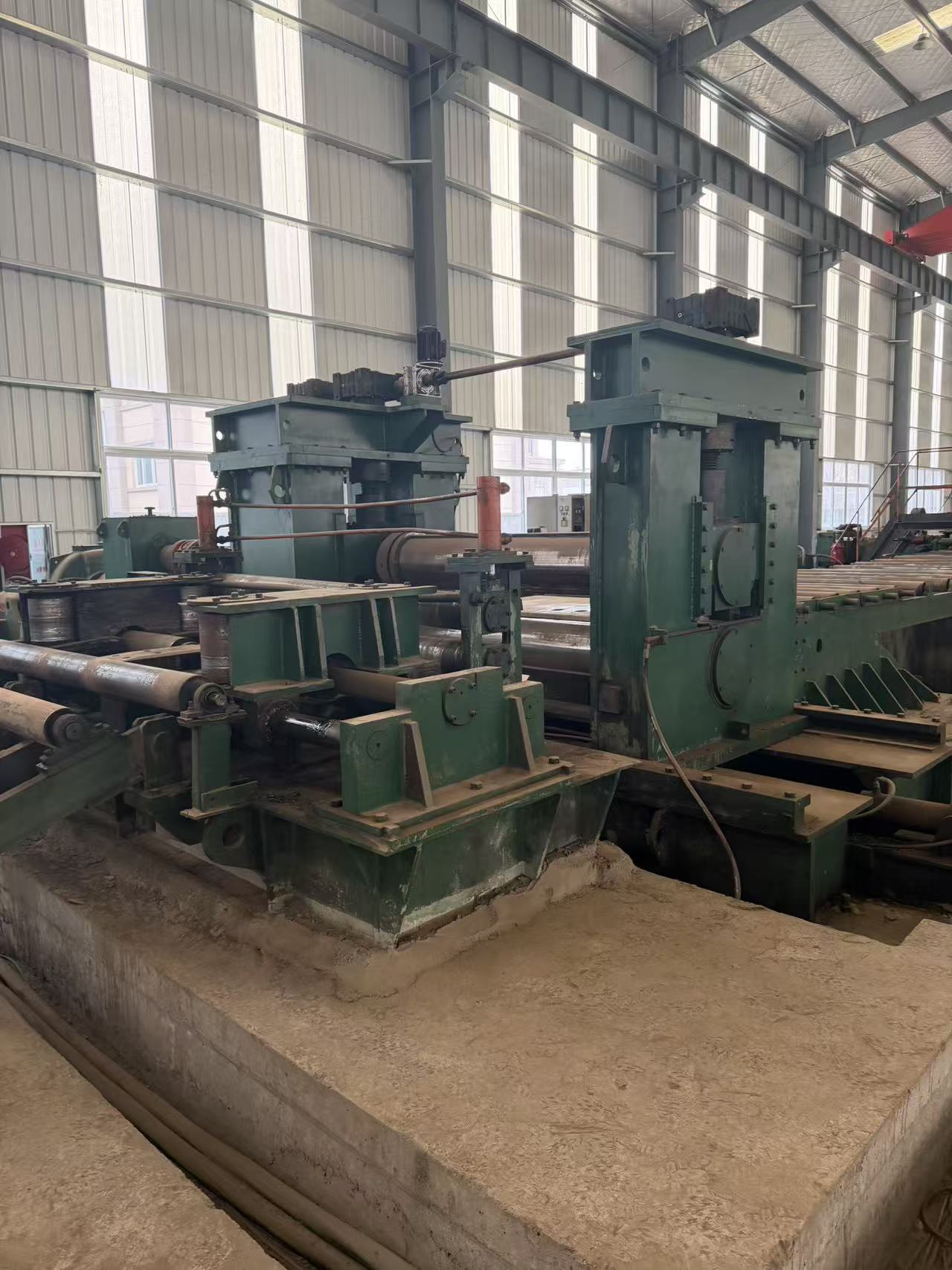

Shear: 20x2500mm guillotine shear

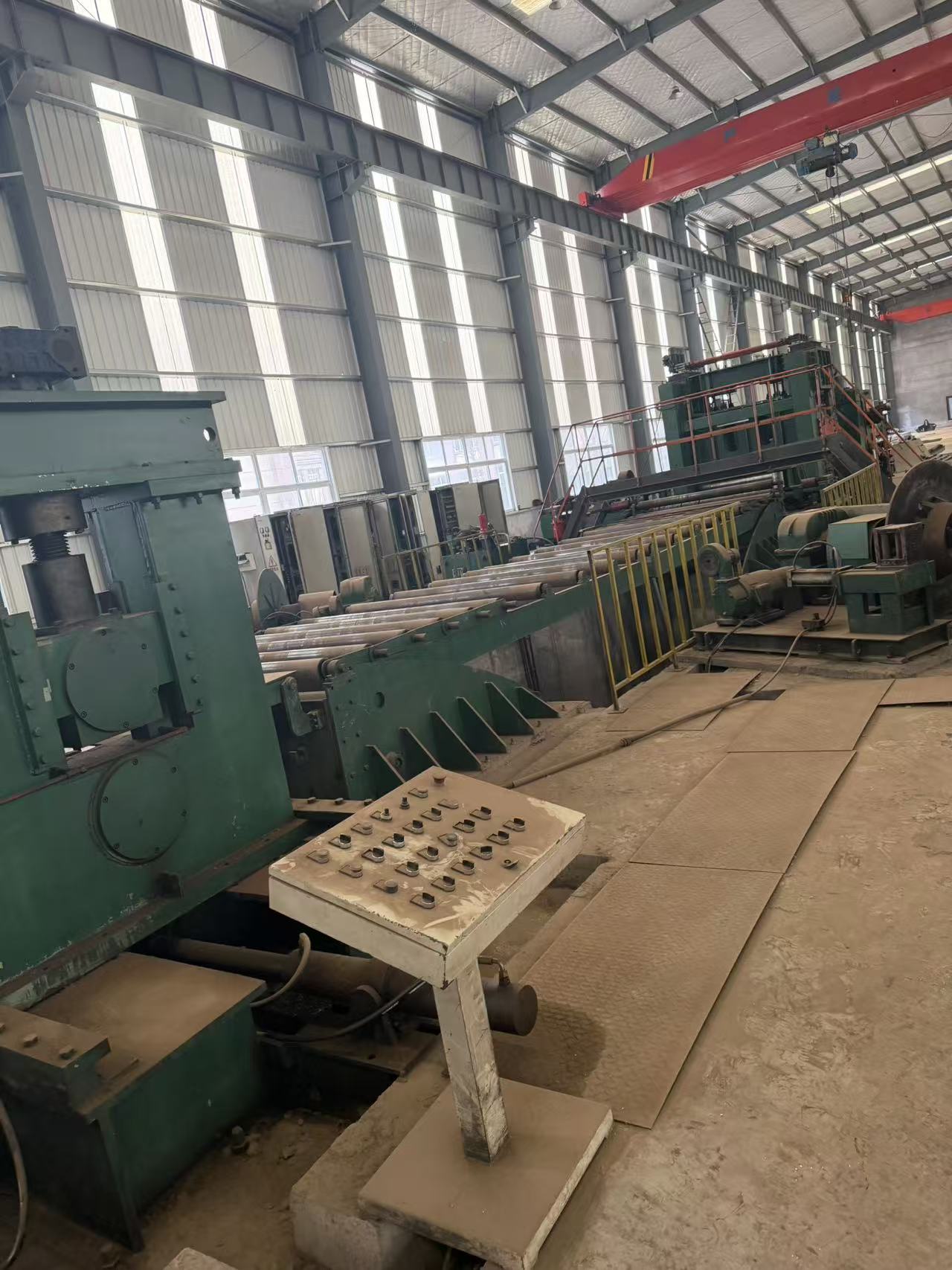

Stacking table (discharge table): 12-meter-long elevating drop stacking table
