Max coil width: 2000mm

Year of manufacture: 2010

Thickness range: 3–12mm

Max production speed: 80m/min

slitter balde diameter：345mm

Production direction: right to left

double con uncoiler coil  ID 508mm, 610mm，760mm

15kwx2 electric motor

Recoiler coil ID 610mm, 710mm，810mm

recoiler motor 315kW

slitter motor 250kw

edge trimmer motor:15kwx2

2+5rollers 4 hi leveler electric motor:75kw

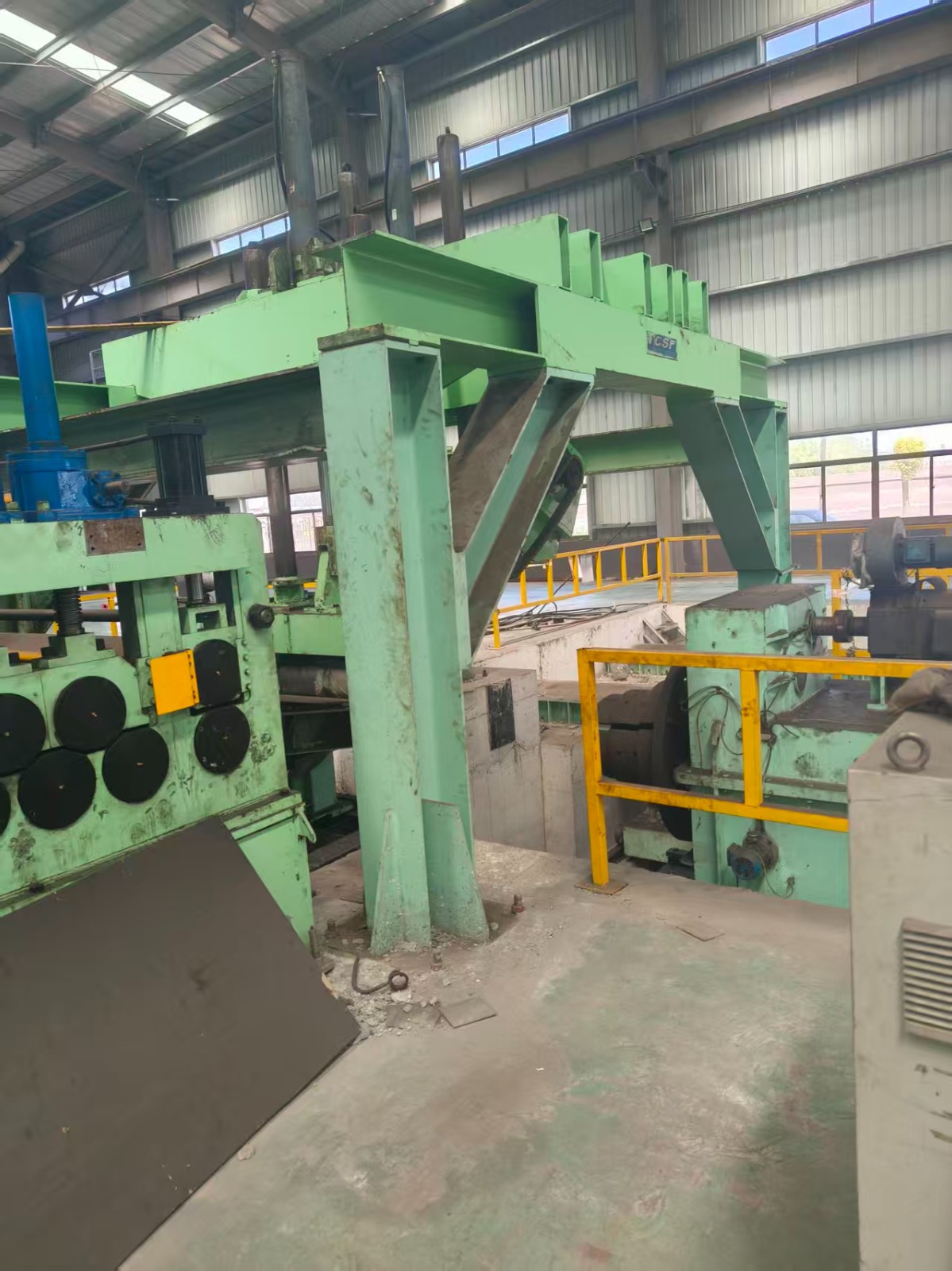

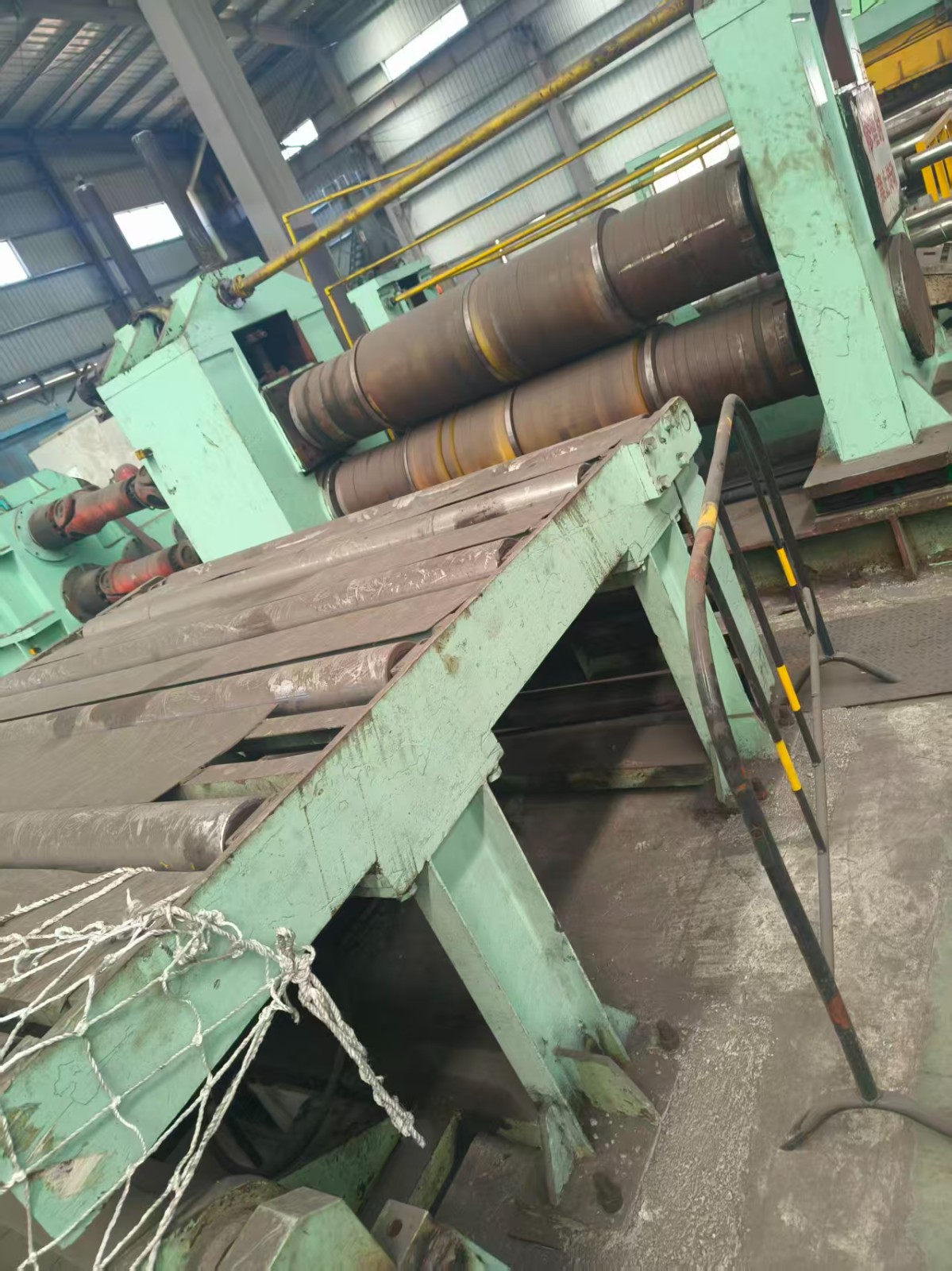

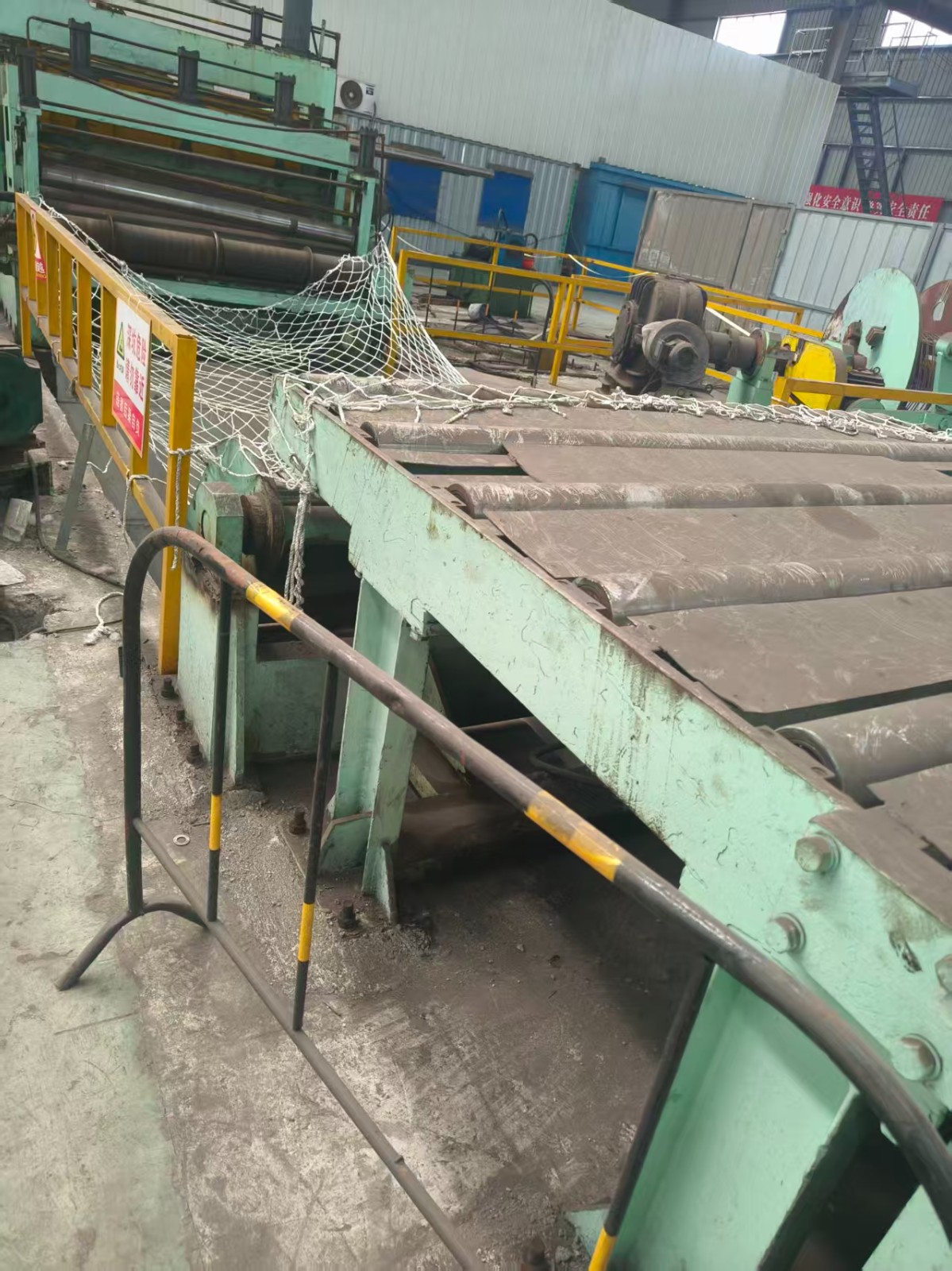

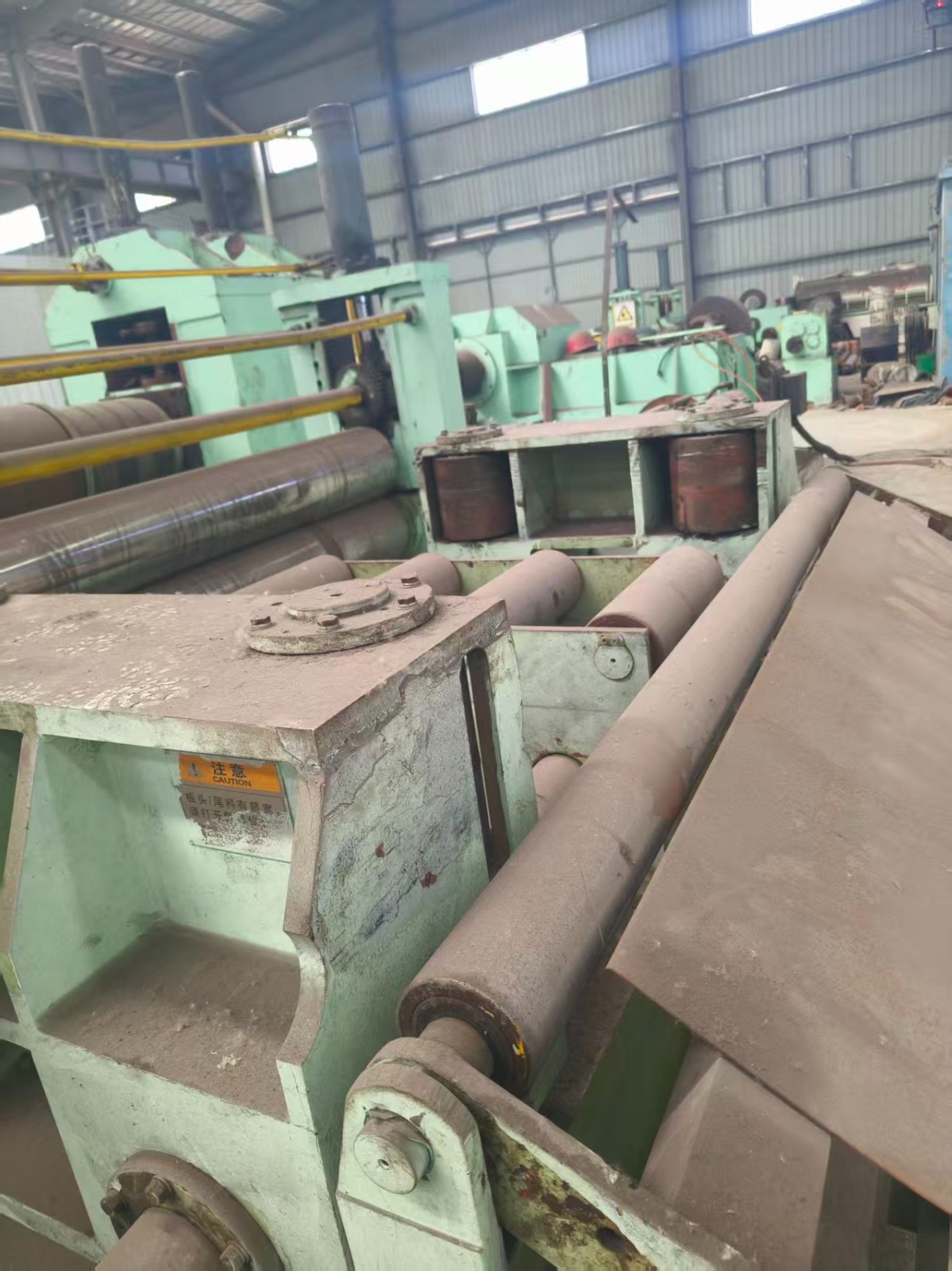

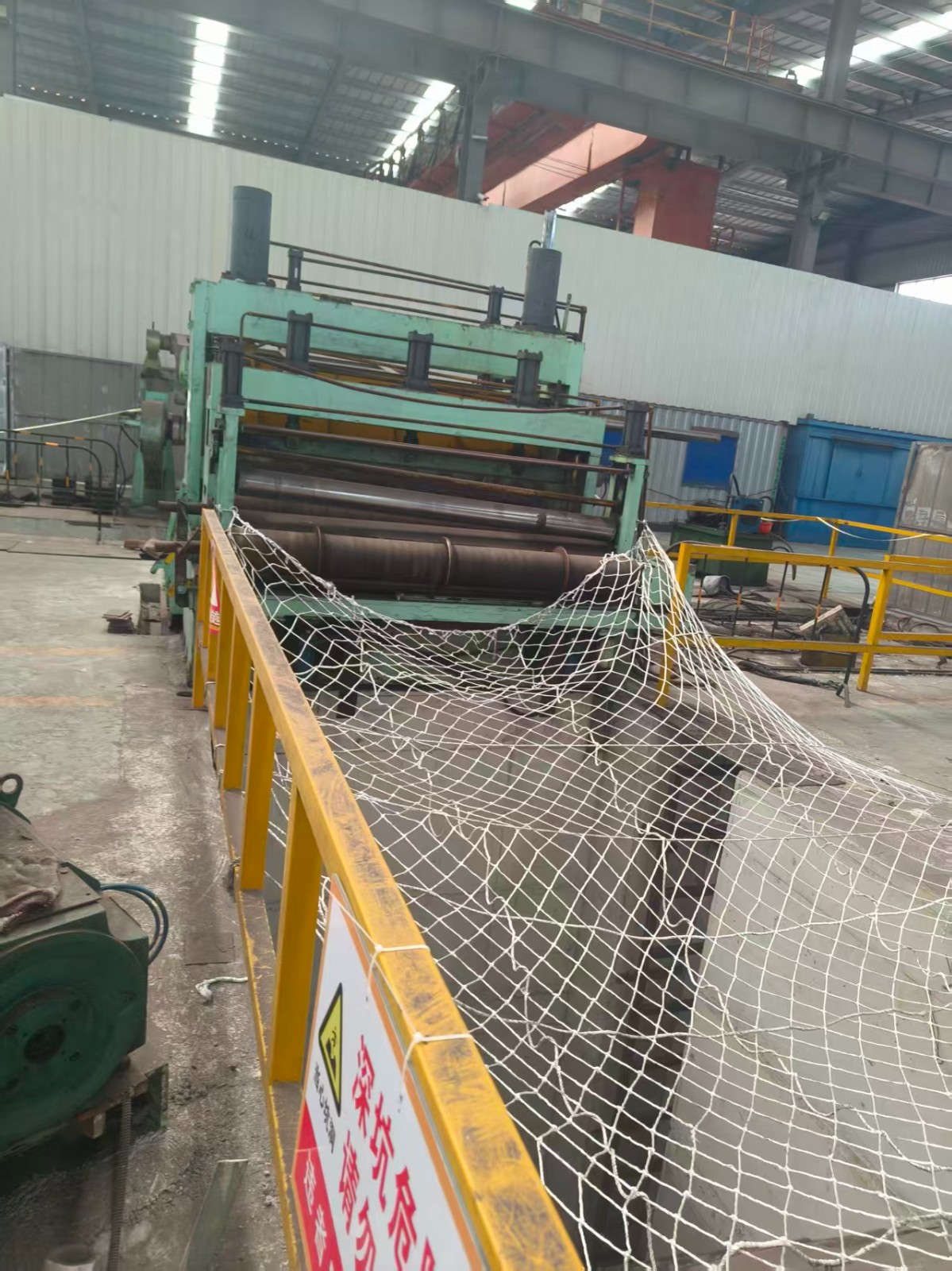

scope of supply:double con uncoiler with gantry, 2+5 rollers 4hi leveler,

 coil car, loop1, centering device,feeding machine, slitter, loop 2,  2 edge trimmers,

2nd feeding machine, shear, tension unit, recoiler,  electric system, hydraulic system, operation table
