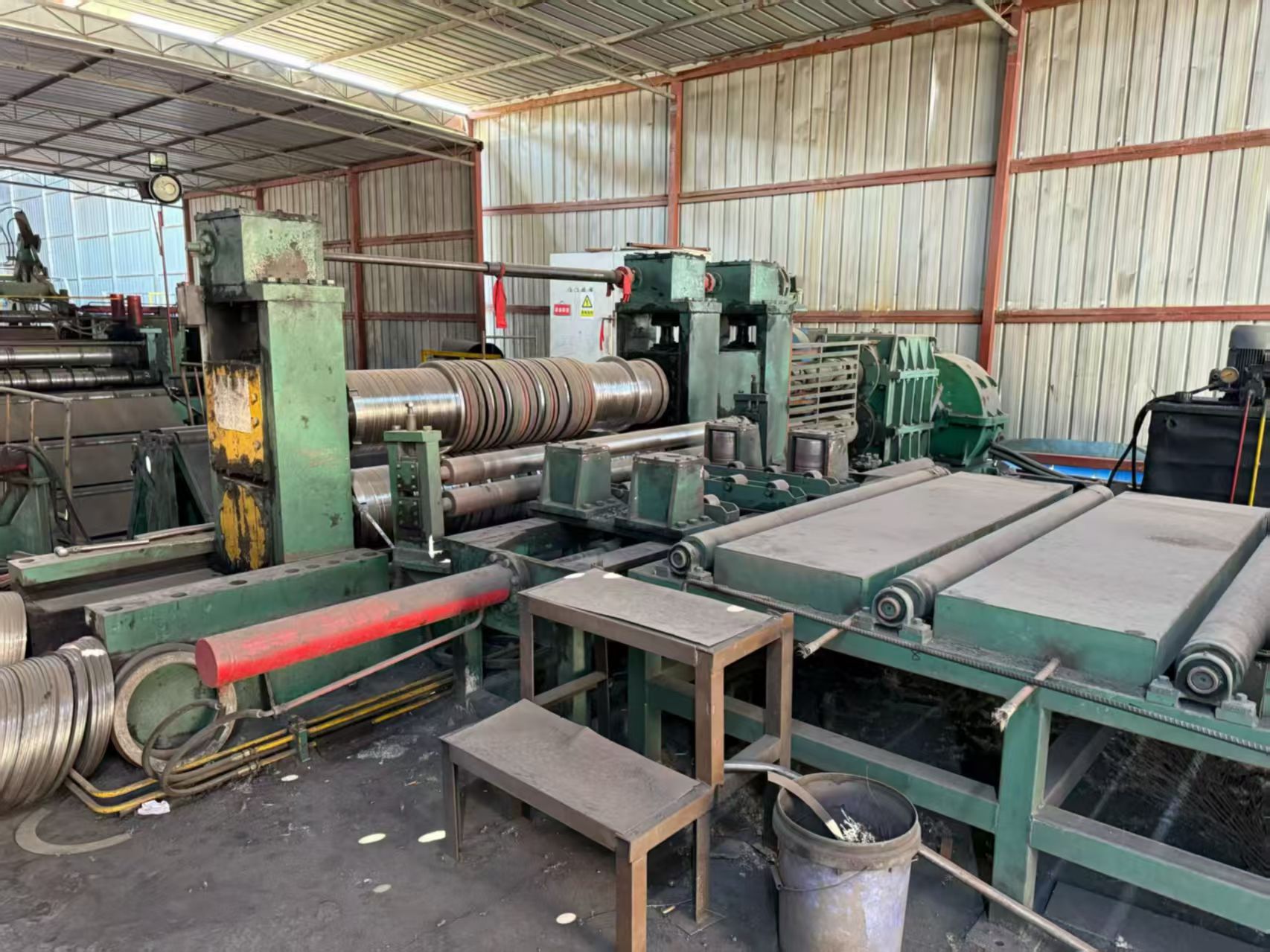

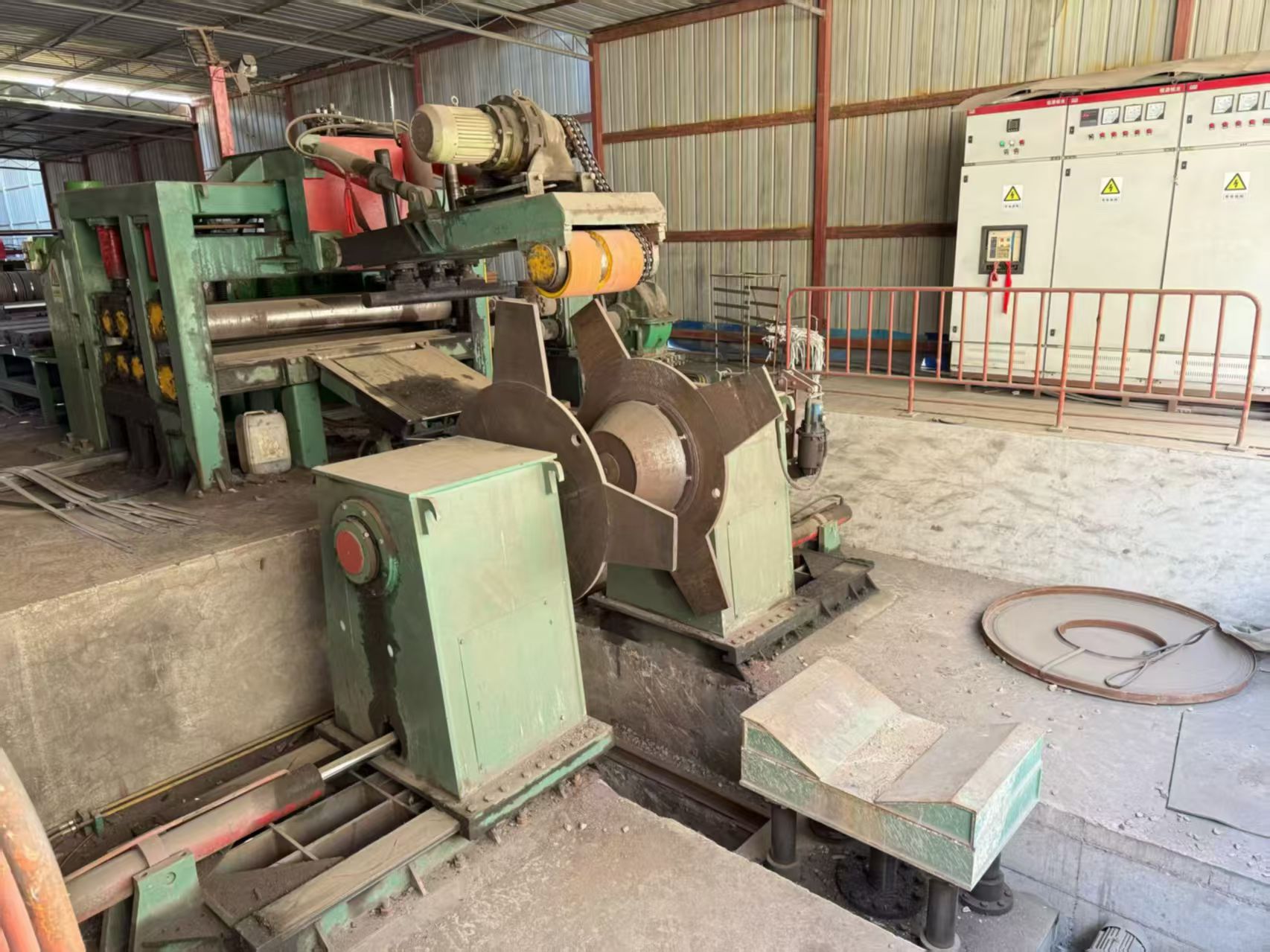

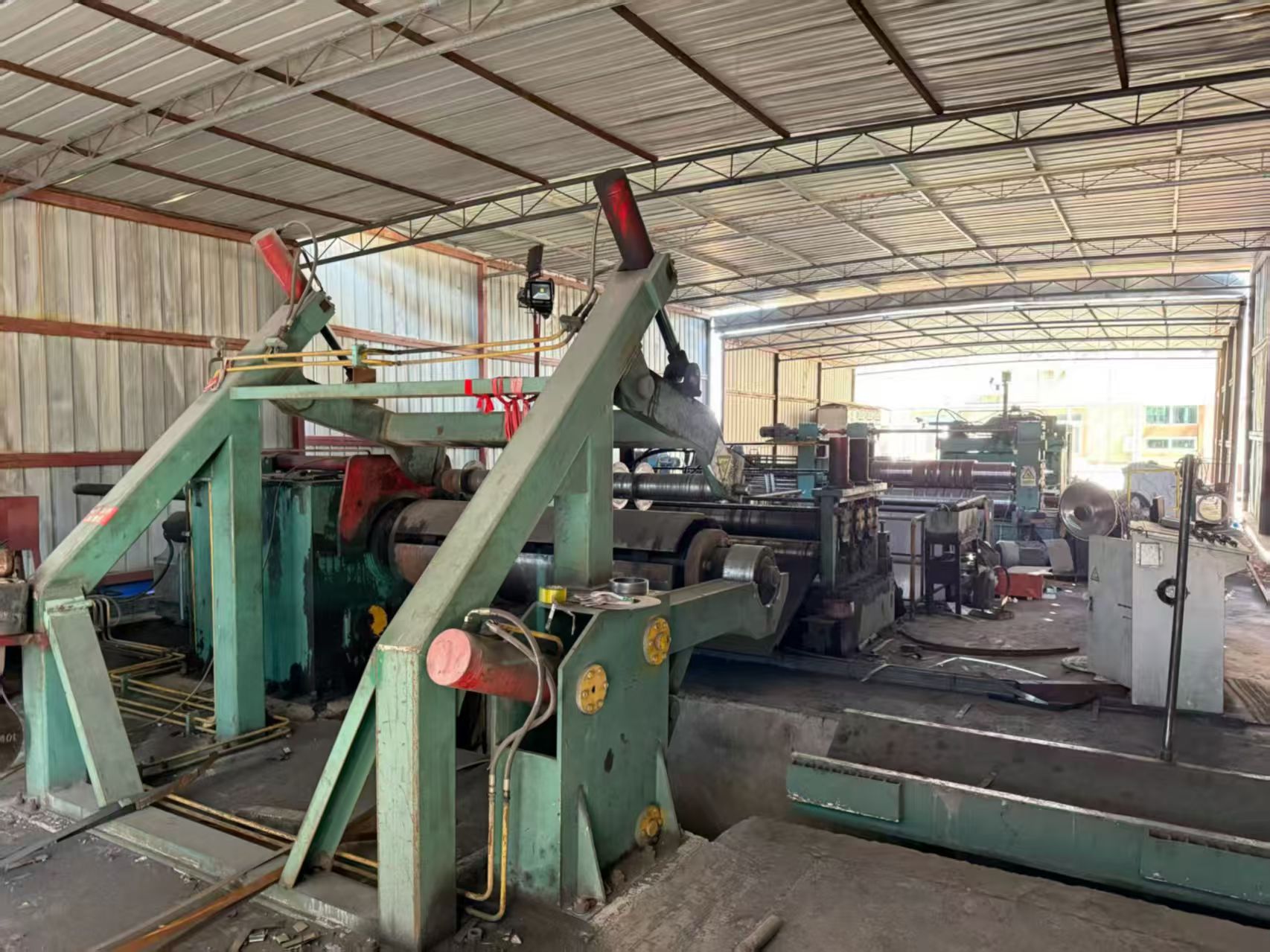

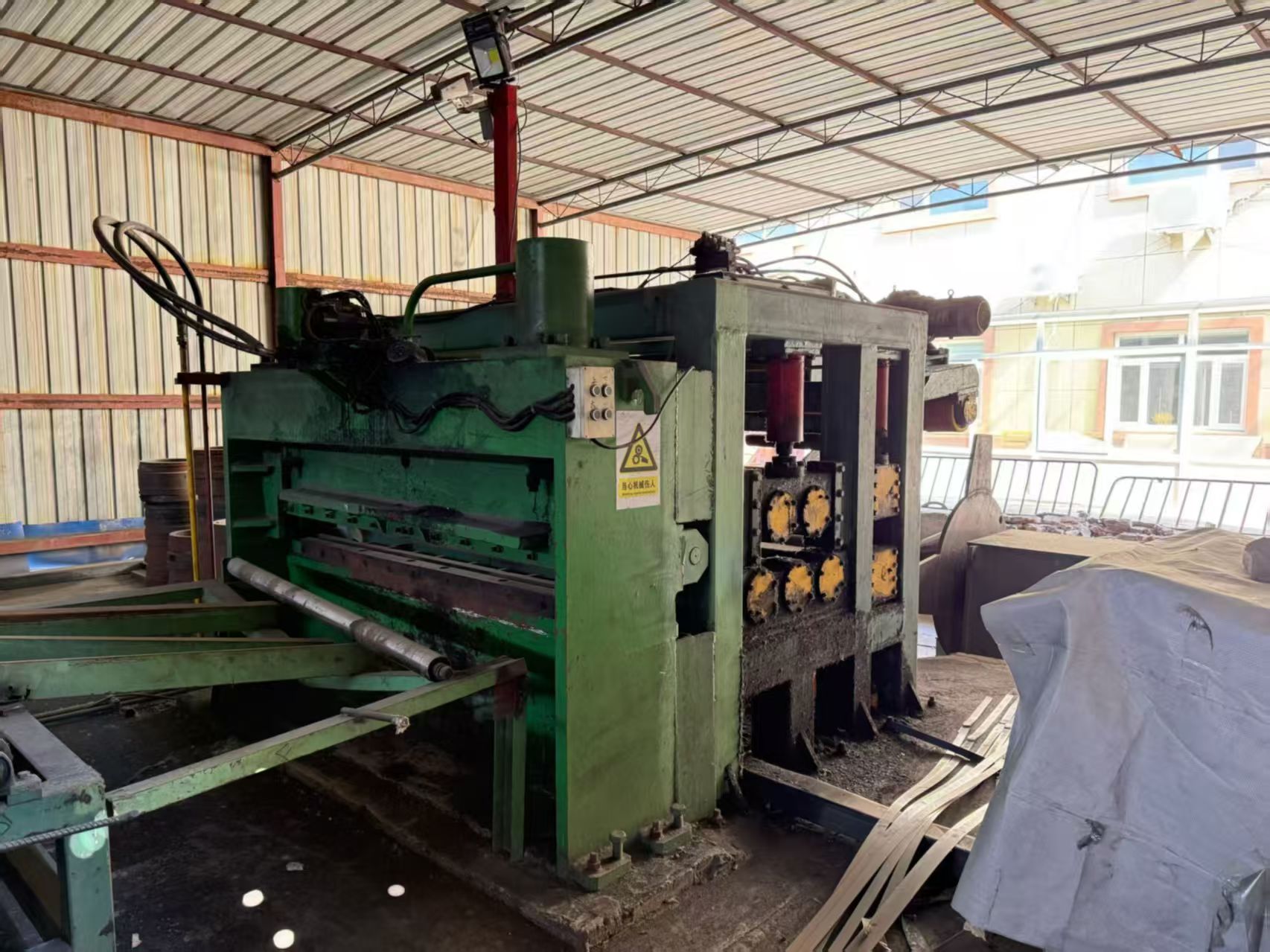

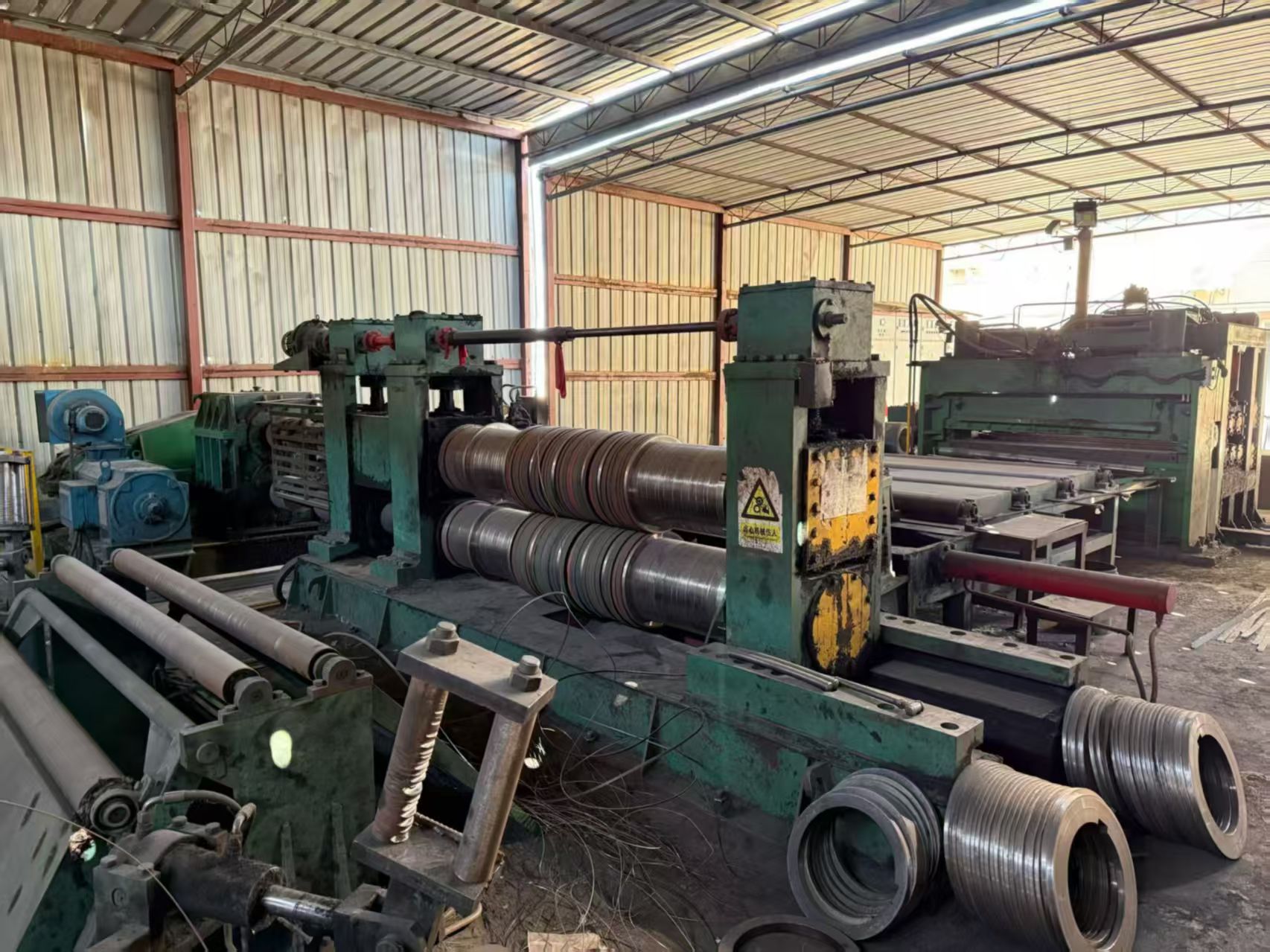

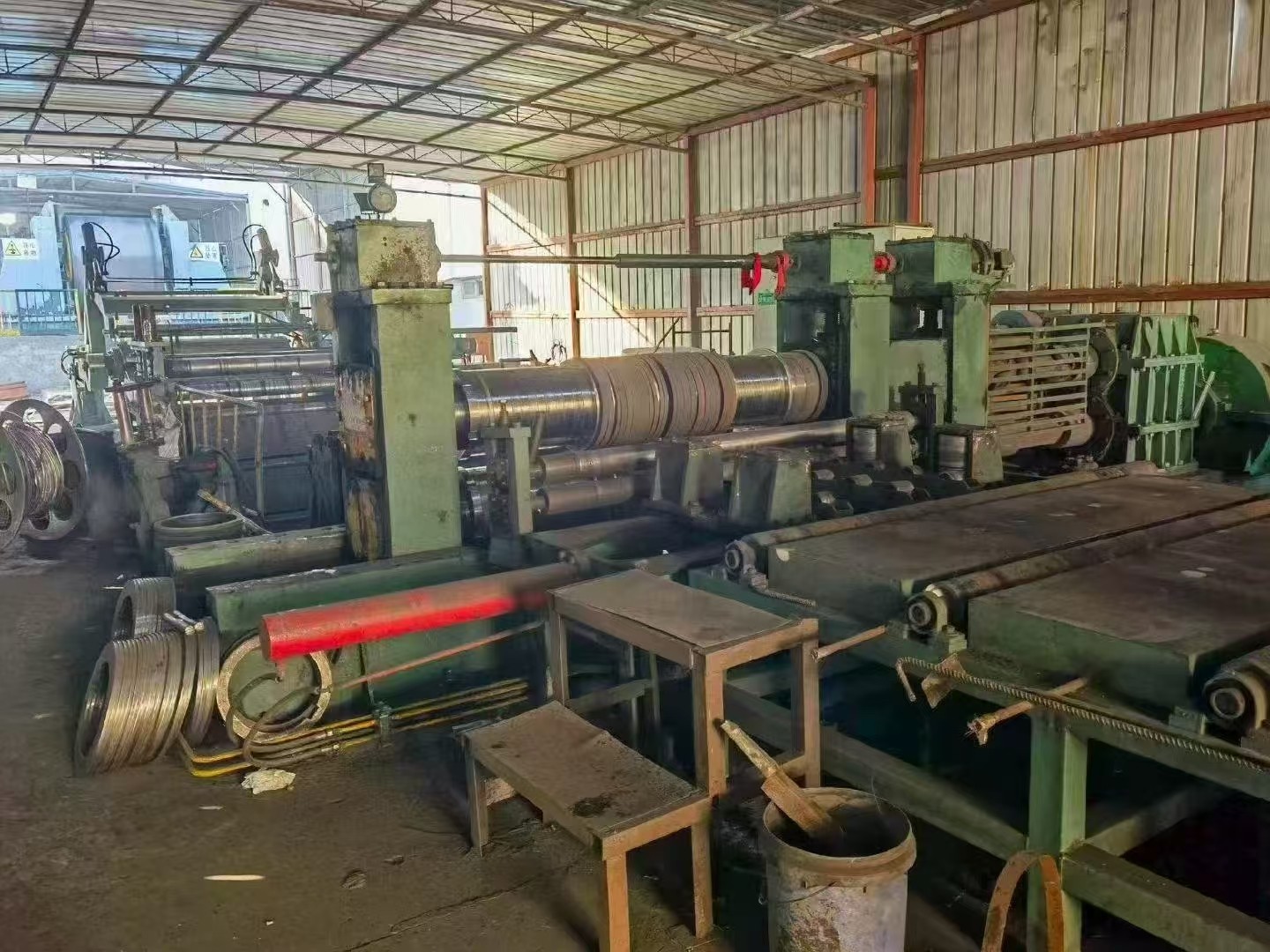

used Jinsanjiao 2-8mmx1800mm slitting line
No：670 Written date：May 7,2026
- product description
- Technical Parameters
thickness range:2-8mm
max width:1800mm
uncoiler roller width: 1950mm
tension unit roller width: 1970mm
slitting shaft width: 1950mm
shear width: 1900mm
leveling motor：30kw
slitting balde diameter：300mm
slitter motor：220kw
recoiler motor：280kw
scope of supply: gantry and double uncoiler, coil car, 2+5 rollers 4hi leveler, centering device, feeding machine, slitter,loop, tension unit, recoiler,operating table, electric system, hydraulic systemIf you want to quote or further information on this product, please fill out the form below.
