slitter aluminum kampf 450
slitter aluminum kampf 450 No:623 written in 2025/6/4- product description
- Technical Parameters
technical parameters:

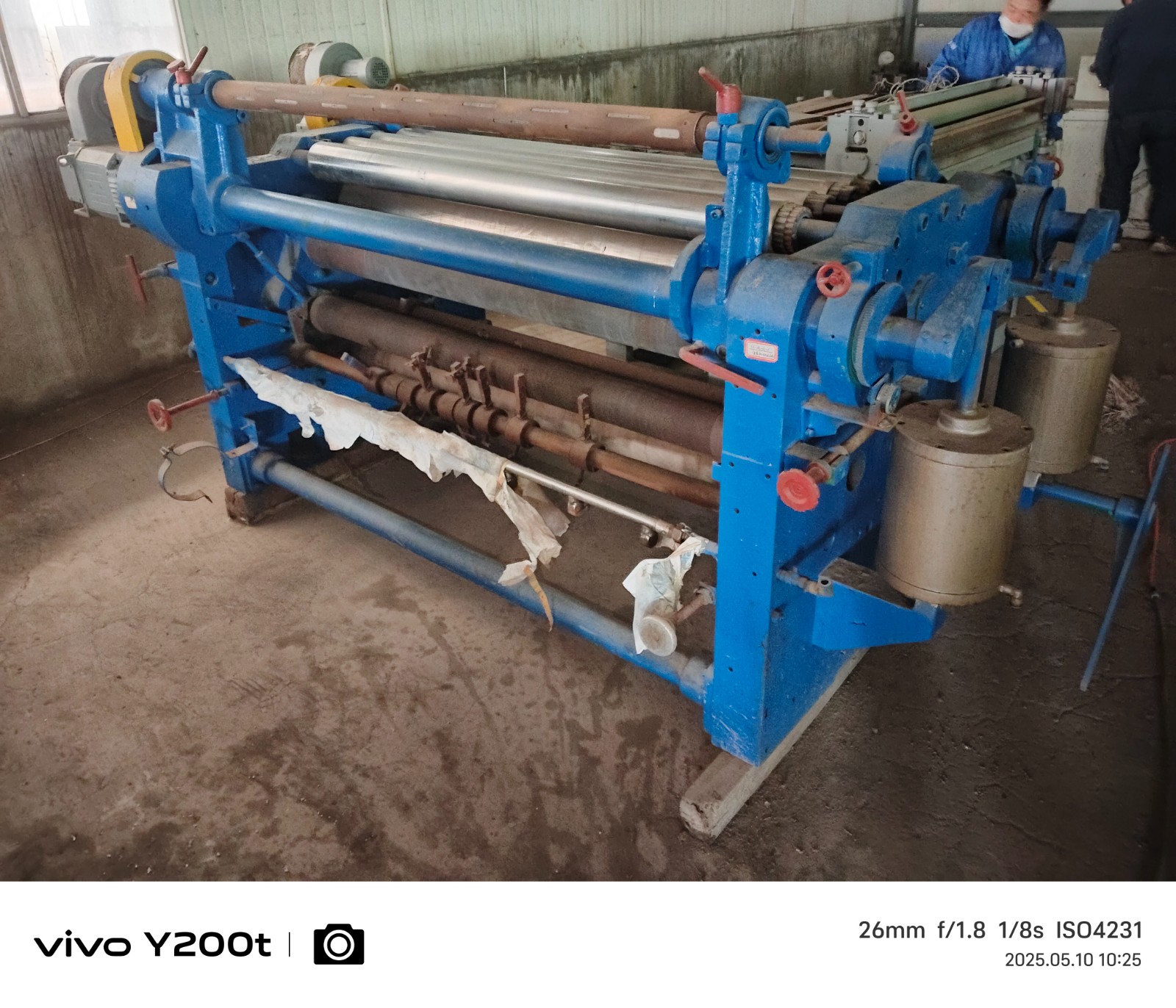

Kampf 450 Slitting Machine
1. Machine Data:Manufacturer: Kampf, Germany
Model: RKW450 (2-shaft core winding with intermediate drive and shear cutter)
Max. Width: 1,150mm
Speed: 250m/min
2. Aluminum Foil Specifications:Slitting Thickness: 0.011–0.018mm
Shearing Thickness: 0.030–0.100mm
3. Unwinder:Max. Outer Diameter: 1,100mm
Sleeve Outer Diameter: 305mm
Sleeve Length: 1,450mm
4. Winder:Max. Outer Diameter: 480mm
Mandrel Inner Diameter Options: 50/70/76/95mm
5. Power Supply:Main Power: 3×380V, 50Hz, 15kW
Control Power: 220V, 50Hz
6. Drive Motors:Main Motor: Schrage
3×380V, 12.5A, 6kW, 2,200rpm

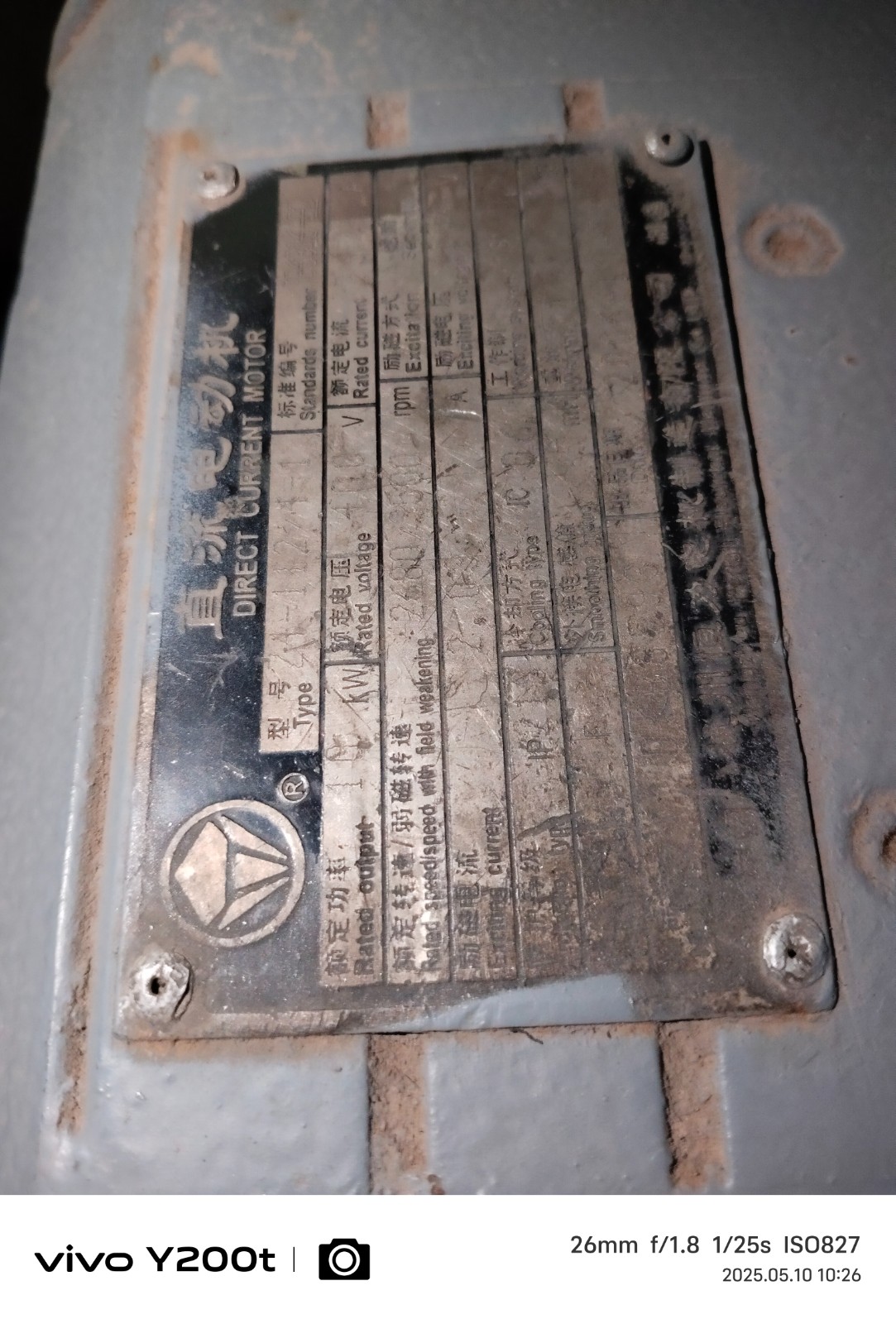

Winding Motor:
400VDC, 10A, 3.3kW, 3,000rpmIf you want to quote or further information on this product, please fill out the form below.
