Spiral Pipe Welding Machine
used 3PE coating machine
used 3PE coating machine, written in Sep 26th, 2025,NO;611- product description
- Technical Parameters
The equipment consists of the following:
OD range：820mm-3200mm
pipe length range:6-13m
speed range:350-450m²/hour
| Equipment Name | Model | Origin | Quantity | Main Performance Description | Operating Power |
|---|---|---|---|---|---|
| Conveyor Line | R3200 | Shandong | 1 | Max. Pipe Diameter: Φ3200mm, Max. Pipe Length: 13 meters | 54 Groups |

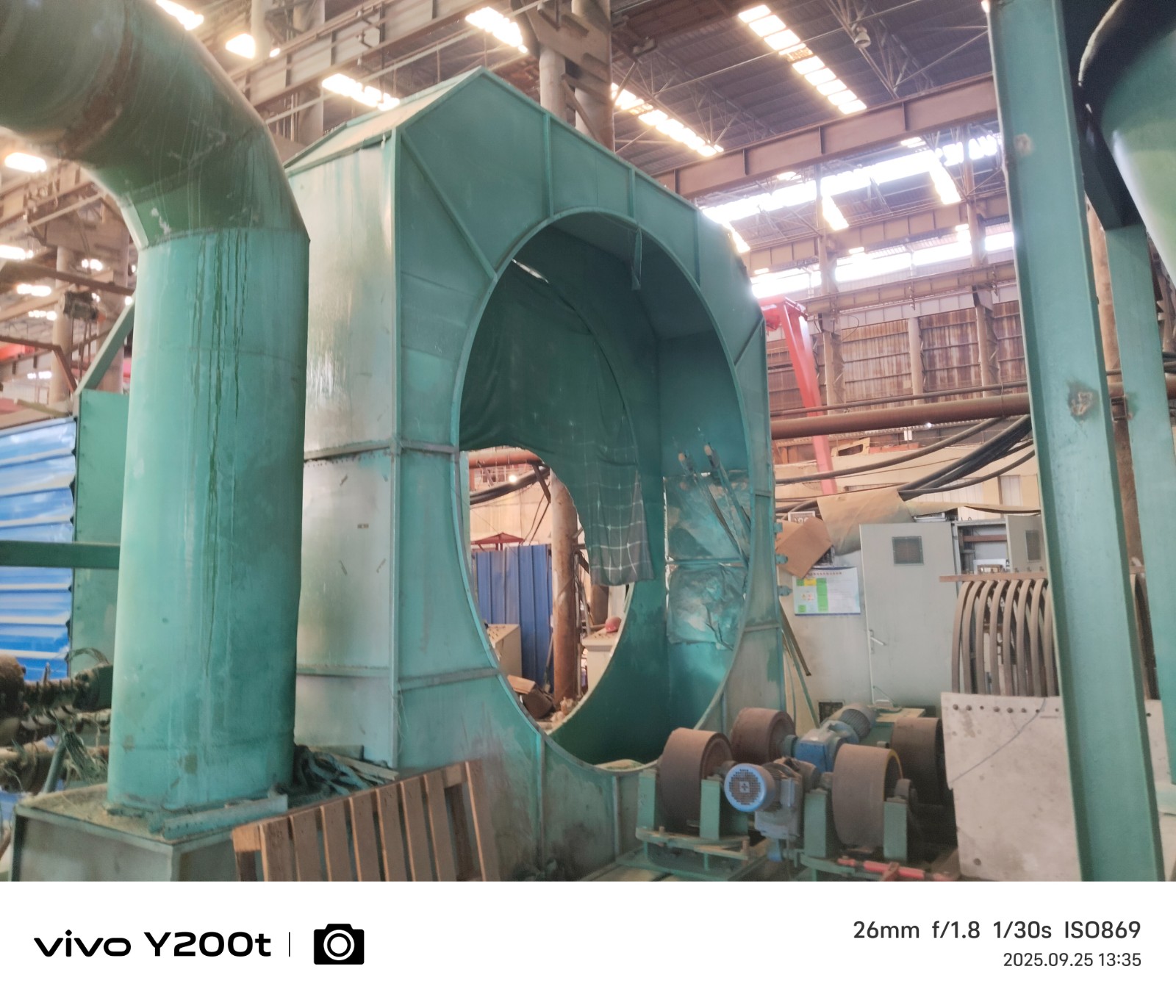

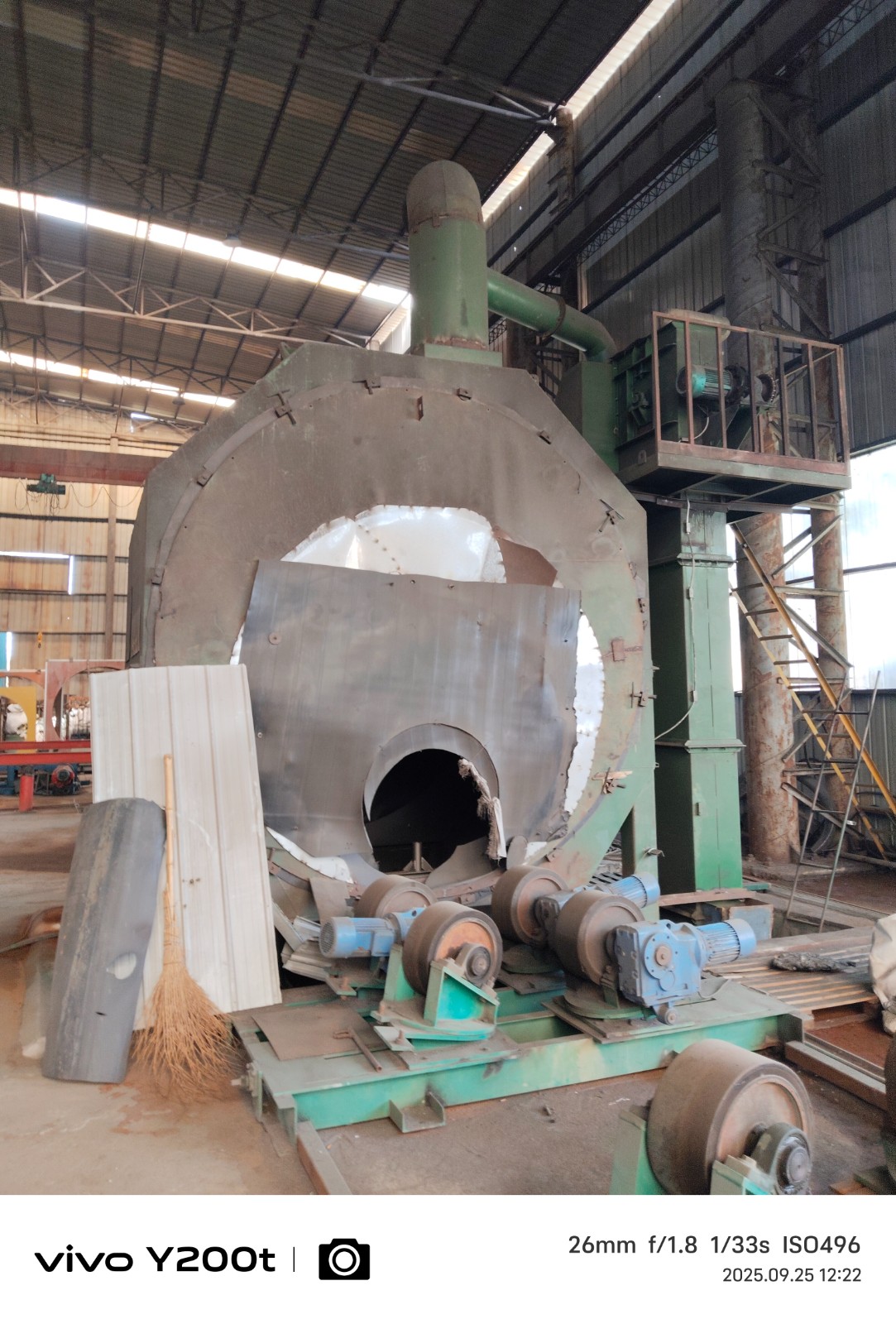

| Shot Blasting Machine | 3.2 Meter | Zhucheng | 1 | Max. Pipe Diameter: Φ3200mm, Capacity: 350-450 m²/hour | 165 KW |

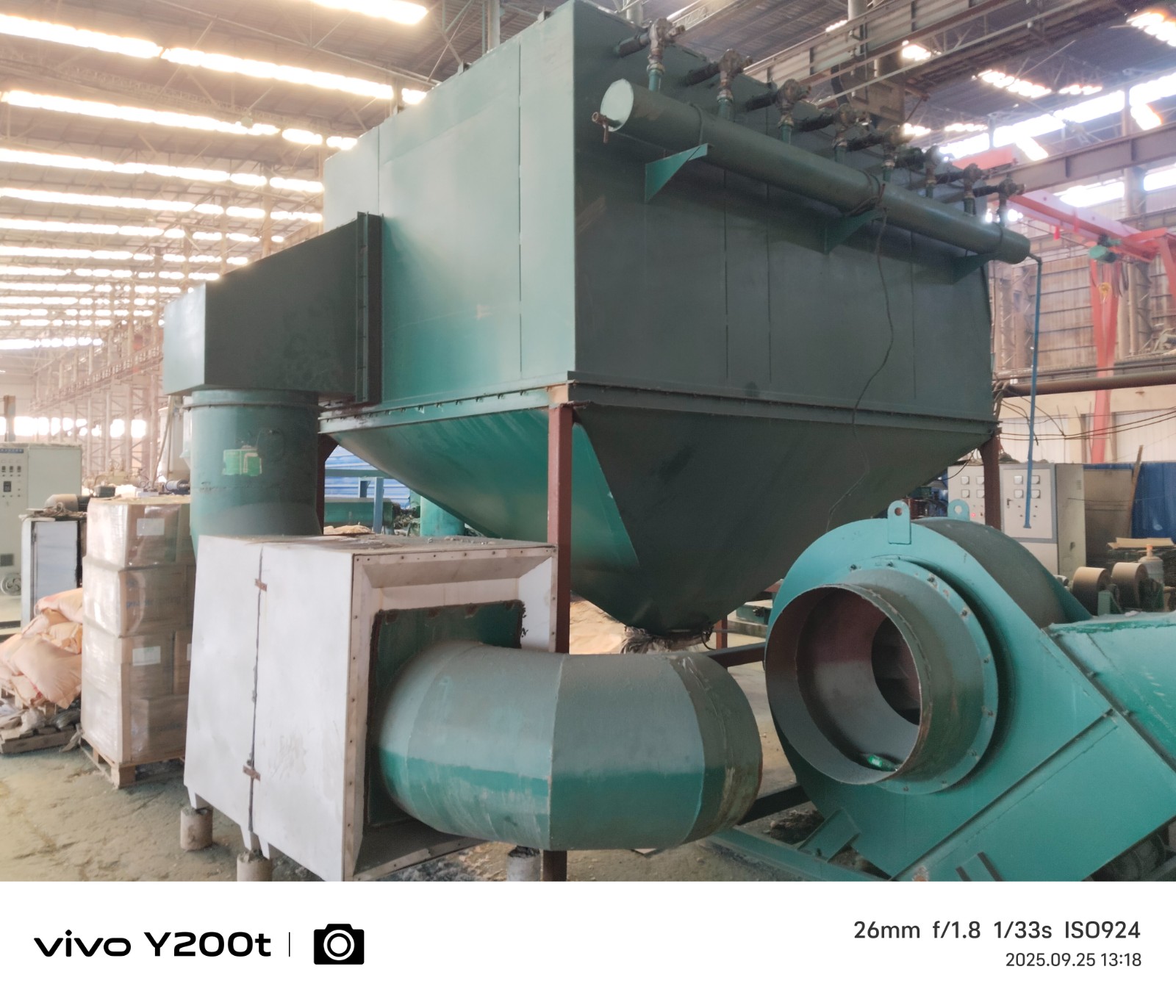

| Dust Removal System | 32-Cartridge Filter | Zhucheng | 1 | 30 KW | |
| Medium Frequency Heating System | 2 | KGPS-1000KW/1KHZ | 2 Coils | ||
| FBE Electrostatic Spray System | ZS-201 | Huanghua | 1 | 5-Gun Controller | No Spray Guns |

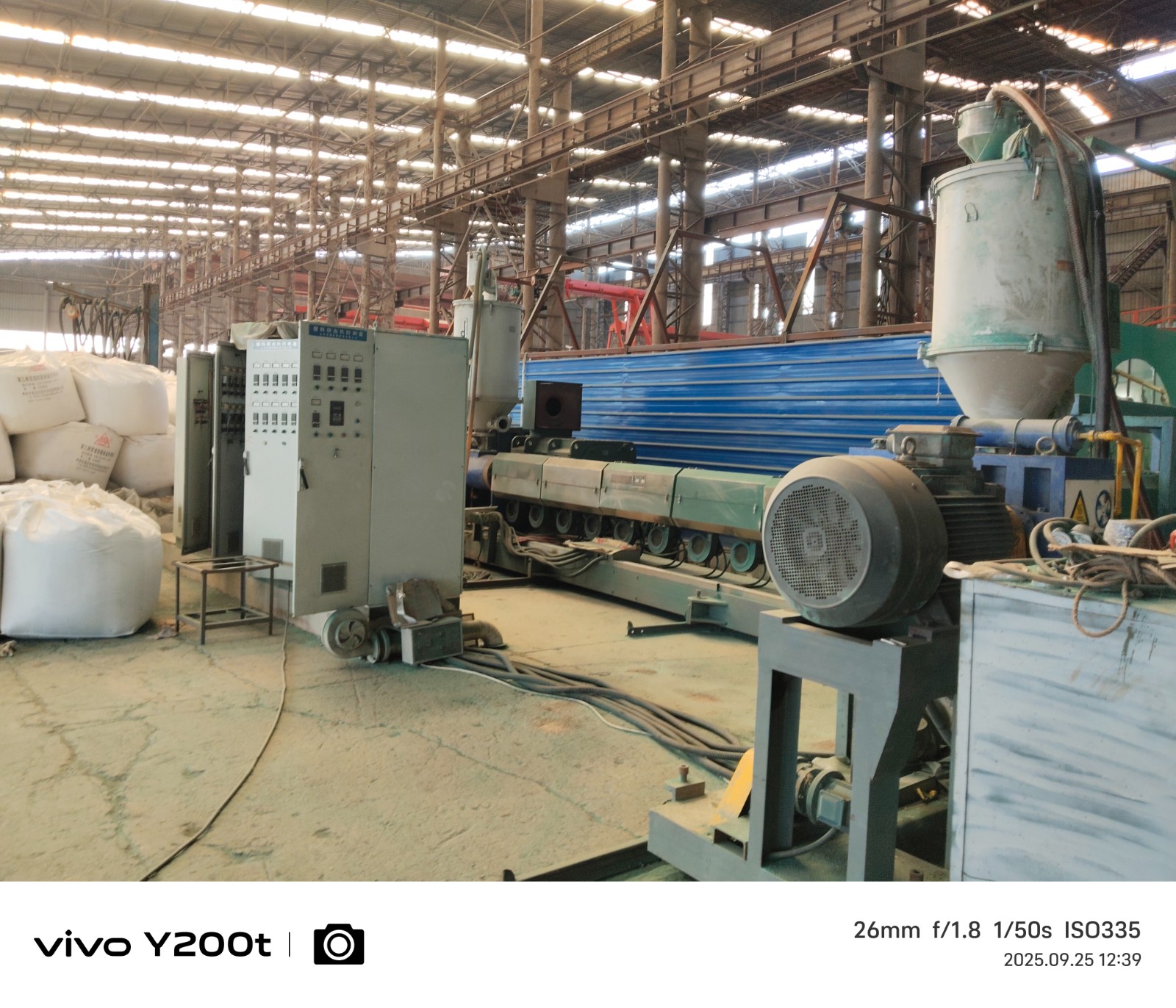

| Extruder | SJF-230/30 & SJF-90/30 | Laiwu | 1 each | Capacity: 2000 kg/h & 300 kg/h | 700 KW & 75 KW |
| Powder Recovery System | Cyclone + Cartridge Filter | Zhucheng | 1 | Airflow: 10000 m³/h | 30 KW |
| Control Cabinet & Operator Console | Tianjin | 1 | Electrical Control | 15 Units | |
| Cable | 2 Large Cable Reels | ||||
| Pipe End Grinding Machine | R3200 | Zhucheng | 1 set |
cooling tower is not inculded
