2010 used 700-1250mm CCL running machine

Used color coating line

Your current location：首页 > Products > Used color coating line > 2010 used 700-1250mm CCL running machine

stock number: 595, it is written on 27/08/2024

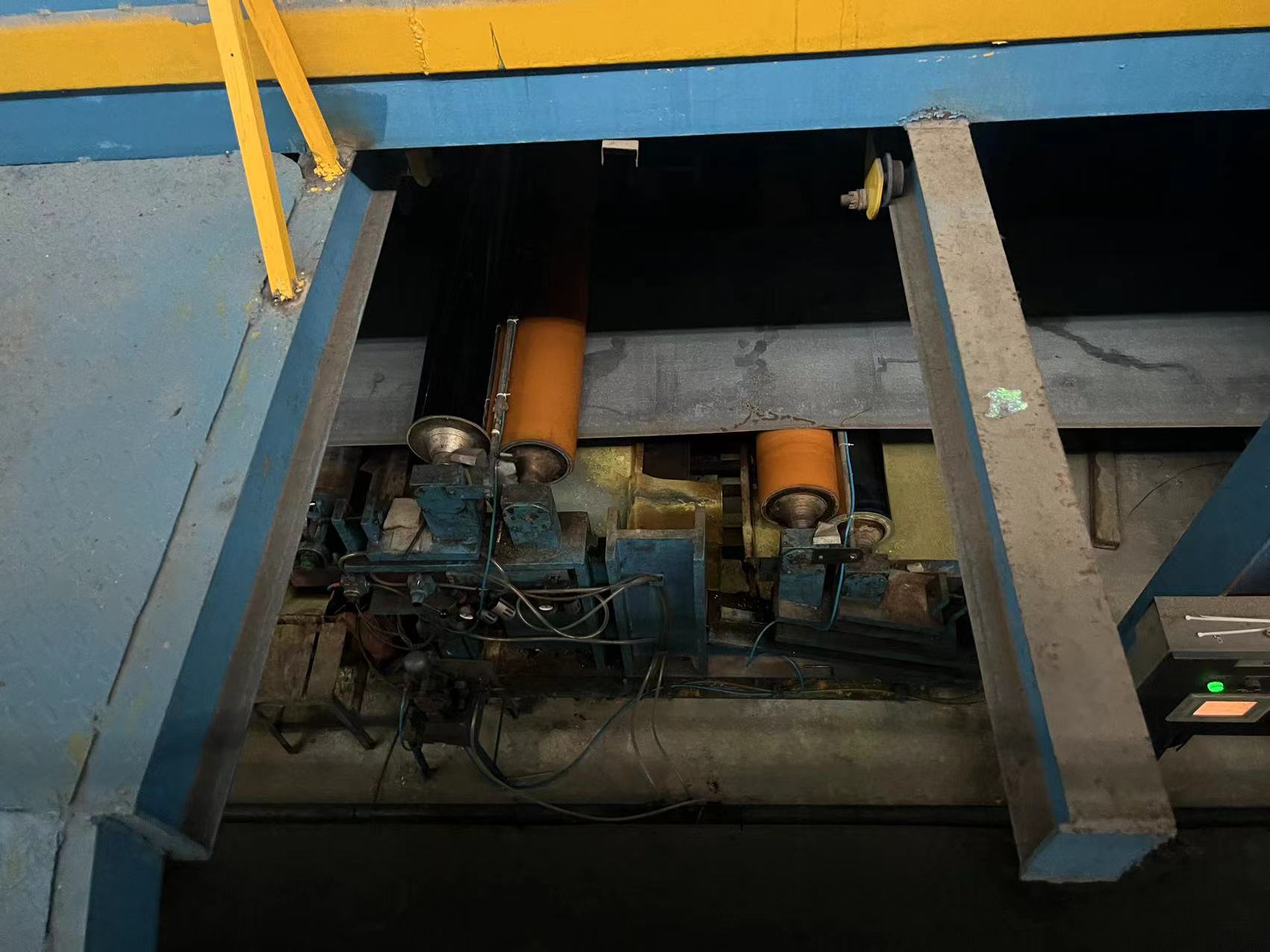

used 700-1250mm CCL

machine is made in 2010

coil width: 700-1250mm

coil thickness: 0.3-0.8mm Q235 mild steel

0.3-0.6mm stainless steel

uncoiler max. coil weight: 10 ton

recoiler max. coil weight: 5 ton

max. speed: 80m/min, this is the factory actual line speed, stainless steel 0.3-0.6mm

drying by 2 times, coating by 2 times

machine is still in running condition

it can be dismantled and sold in the beginning of Oct. 2024

scope of supply:

No	Name	Qty.	Remark motor list
1	uncoiler	2	22kw
2	Coil car	2
3	saddle	2
4	Supporting rack	1
5	conveyor	1
6	Pinching machine	2	3kw
7	Tension table	1
8	Seaming machine	1
9	S rolls	5	11kw.15kw.18.5kw, approximate10 PCS
10	Turning roll	2
11	loop	2
12	Cleaning and degreasing machine	3	3.5kw.5.5kw.
13	Small oeven	2	4kw
14	Passive	1	11kw 5.5k w
15	Prelimary coating	1	5.5kw
16	blower	1
17	Centering device	2	4kw.7.5kw
18	curing oven	2
19	Finishing coating machine	1	5.5,11kw
20	Pinching machine	2
21	shear	2	4kw
22	Conveyor	1
23	recoiler	1	45kw
24	Recoiler assistant	1
25	Coil car	1
26	saddle	2
27	Operation desk	5 to 6
28	Burning oven	2
29	Central fugal blower	3	11kw.55kw
30	Returning blower	2	4kw
31	Electric cabinets	14
32	Hydraulic station	3	11kw.4kw.7.5kw
33	Air compressor	1	4 pcs
34	lathe	1	5.5kw
35	Corner protection machine	1	5.5kw
36	Spare rolls	18
37	Bur pressing roll	1
