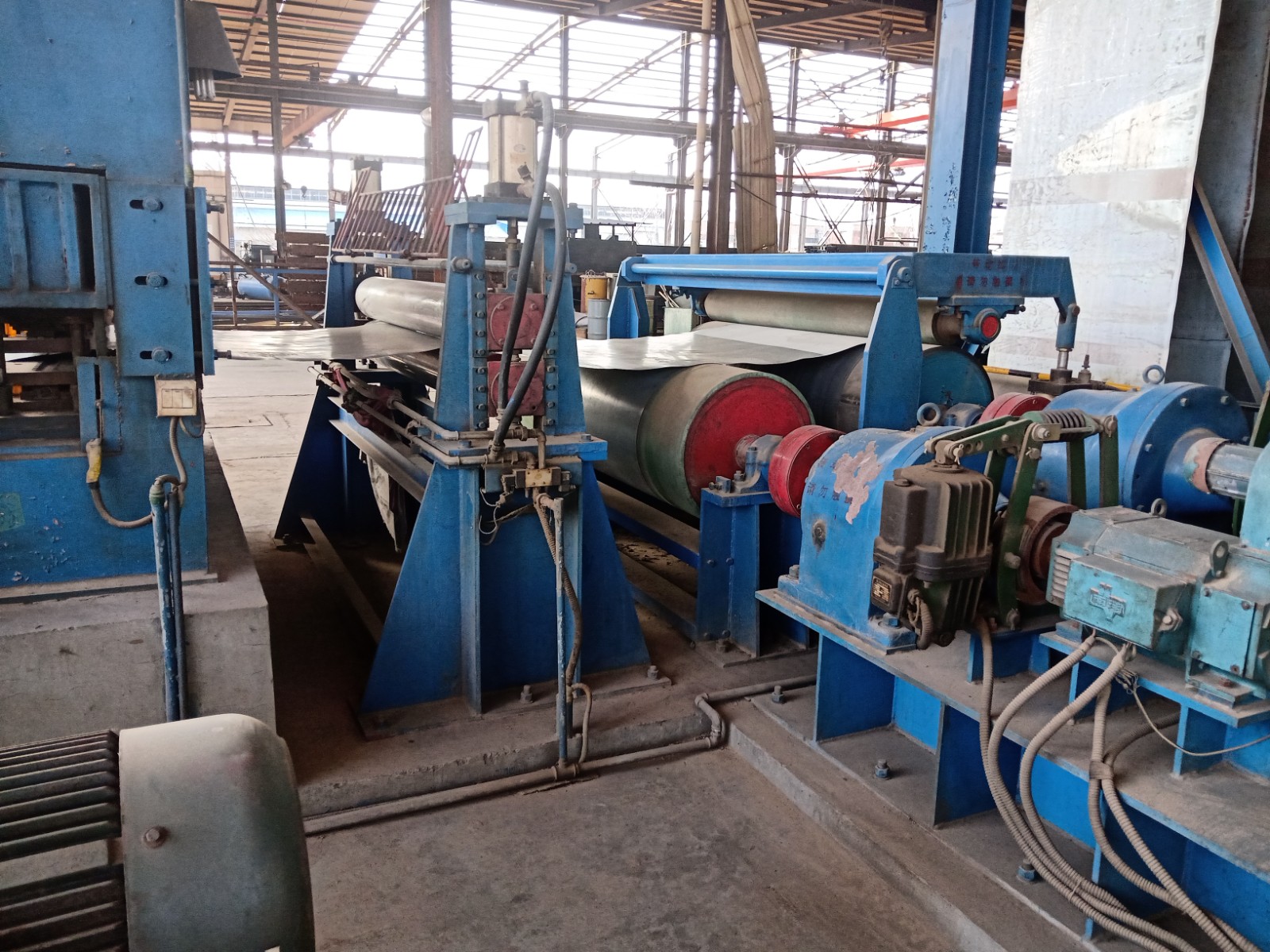

American Machine Tools Inc 1600mm CCL Aluminum

stock No.: 278, it is written on April 27, 2022
  • product description
  • Technical Parameters

 Application: 1600 mm color coating production line, mainly including inlet and outlet section,

pretreatment section and process section, which is used for color coating of steel and aluminum strip.

Ⅱ Technical specifications:
Total length of train line: 122m (two-layer elevated folding return)

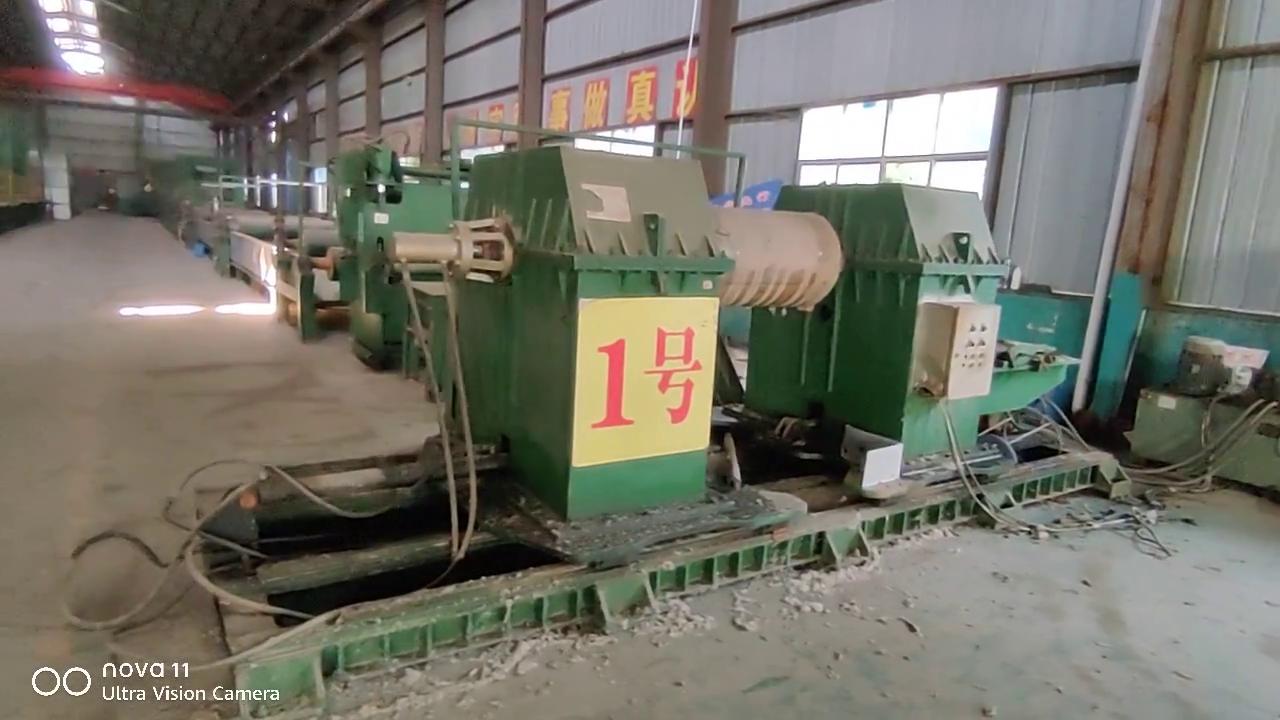

Main equipment: 2 decoilers
Sewing machine 1
Looper tower group 2
Pretreatment tank stage 5
3 coating machines
3 curing furnaces
3 sets of Air Quench devices
2 sets of water quench devices
1 coiler
1 waste heat boiler
7 hydraulic stations
5 sets of tensioning device
4 sets of correcting device
Auxiliary equipment: 1 set of pure water supply tank (including pure water production and regeneration system)
1 set of sewage treatment tank (including waste water, waste acid and waste alkali)
1 paint warehouse
Main technical parameters:
Strip thickness: 0.3-1.8mm (aluminum)
Strip width: 800-1600 mm
Treated coil: Aluminum 1000, 3000, 5000, 8000 Series
 speed: maximum 50 m / min
Threading 20 m / min
Over speed 70 m / min at inlet and outlet
Coil weight (maximum): 12t
Coil diameter: inner diameter ¢ 505mm (without sleeve)
505mm (with sleeve)
Maximum outer diameter steel ¢ 1200 mm aluminum ¢ 1600 mm
Maximum metal temperature: 260 ℃
Main products: can cover material, architectural coating plate, home appliance coating plate, color steel plate
Annual production capacity: 30,000 tons of aluminum coil
380V, 50hz, 3 ph
Machine is dismantled now.
