Piercing mill:

Main motors (02 NOs): 1250kW.

Diameter of blank: 100-210mm

Diameter of rough tube: 105--220mm

Wall thickness of rough tube: 8-27mm

Length of rough tube: 9500mm

Rolling mill:

Main motors (Nos 02) 1120kW

Roller diameter 750mm

Roller length 650mm

Feeding angle 8 degrees

Rolling angle 5 degrees

Raw pipe diameter 100--210mm

Wall thickness 6--25mm

Length 11500mm

Sizing machine:

14 racks 380 sizing machine

14 (Nos) 75KW DC motors

Finished product diameter 89-180mm (194mm)

Straightening machine:

8 columns, 6 rollers, straightening machine

Motor power 2 sets 160KW

Roller distance 900mm

Roller length 490mm

Roller throat diameter 380mm

Straightening speed 0.5-1.0m/s

The production rate is about 45s/ci, and the annual output is 80,000-100,000 tons

The AUCC-ROLL rolling mill can produce special steel grades (Wall thickness of 6-25).

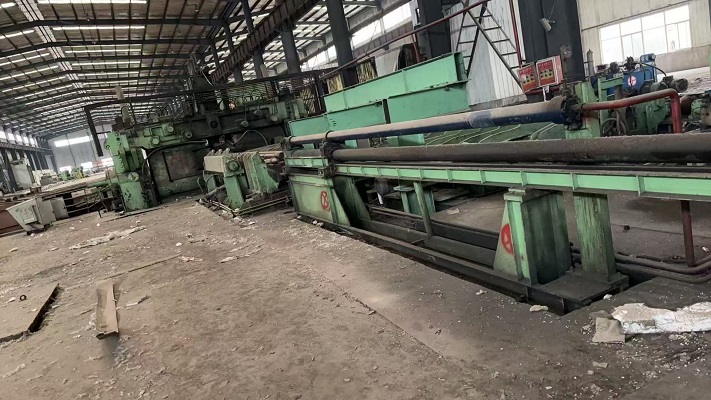

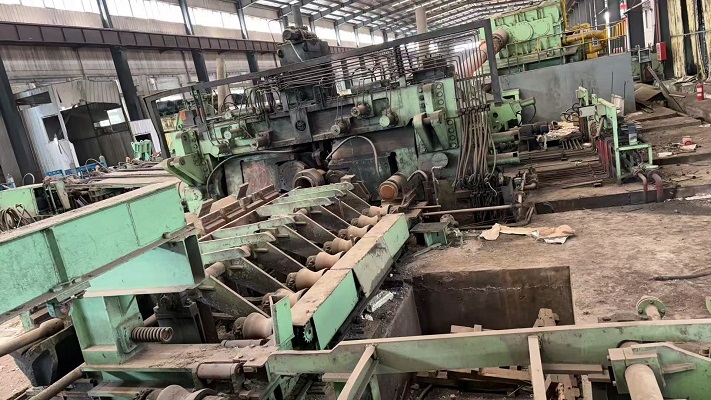

Punching machine + tube rolling machine + sizing machine and its mold + straightening machine

(Total weight: 500 tons approximately)
