used seamless tube mill

Your current location:首页 > Products > used seamless tube mill > used OD140-340mm seamless tubemill

used OD140-340mm seamless tubemill

stock number: 592, it is written on 04/June/2024
  • product description
  • Technical Parameters

Machine is made in 2008, made by China 2nd heavy industry

Machine stopped running 2016

Put into production in 2010

Material: API 5CT, alloy 37Mn5, Q345n, Q345B

Raw material tube OD: 180-310mm, tube length: 9-12m

Output product tube OD: 140-340mm, tube length: 6-25m, wall thickness: 6-30mm

Capacity: 300,000 ton/year

Head specifications: (total 31 pcs)

156/170/152/160/144/174/178/194/200/204/212/216/220/228/232/236/240/242/244/248/252/260/266/270/276/256/280/288/190/186/182.

scope of supply:

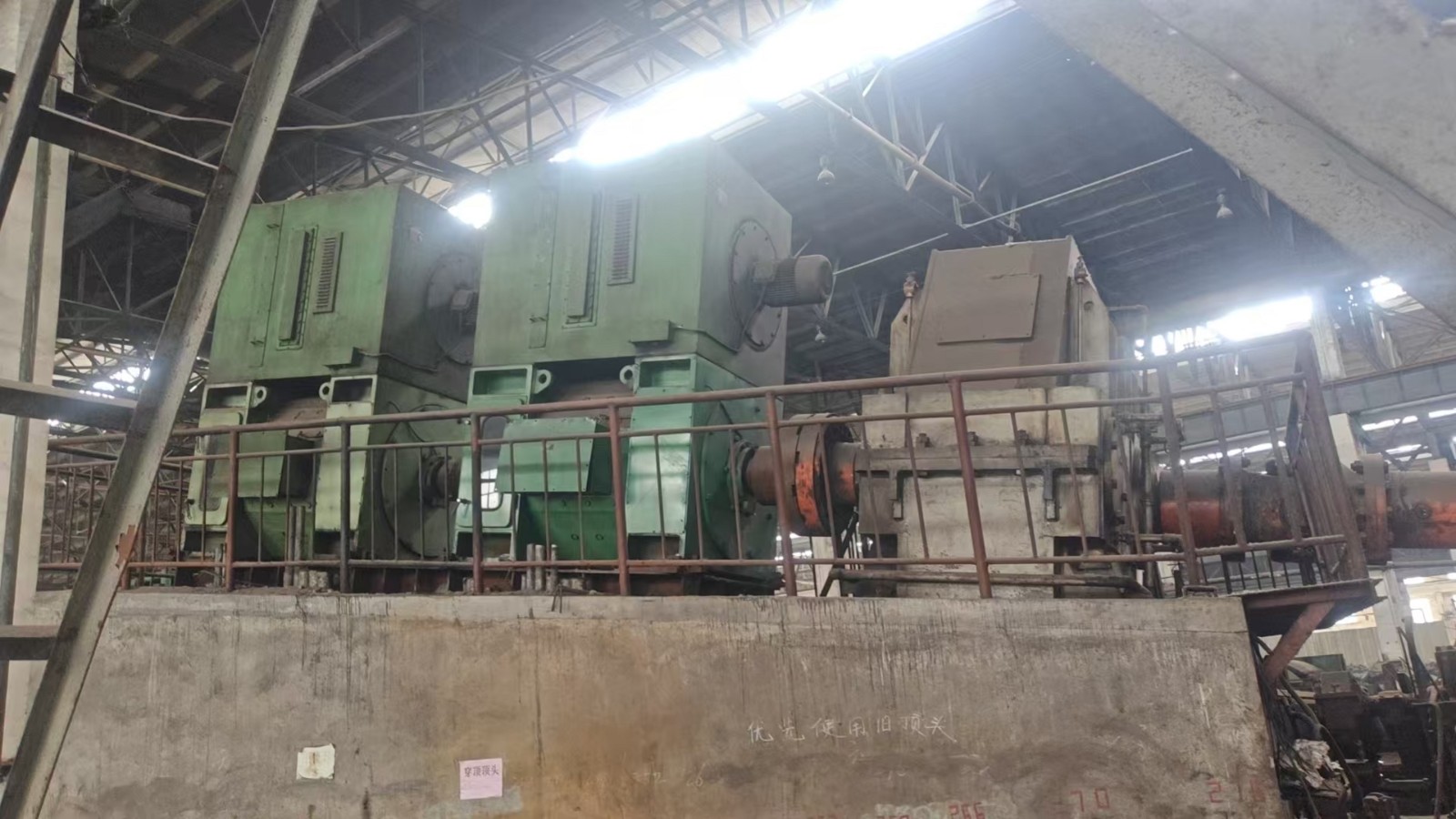

rotary furnace, piecing machine (4 x 1400kw DC motor),  accu rolling machine (2 rolls) (4x1400 dc motors), sizing and reducing machine (12x250kw DC motor),

 conveyor, cooling bed,cutting machines (QTY: 6), end facing/chamfering machine (QTY:2), 6 roll striaghtening machine,  UST, hydro tester, spare parts, electric system, hydraulic system.
