Used polishing machine

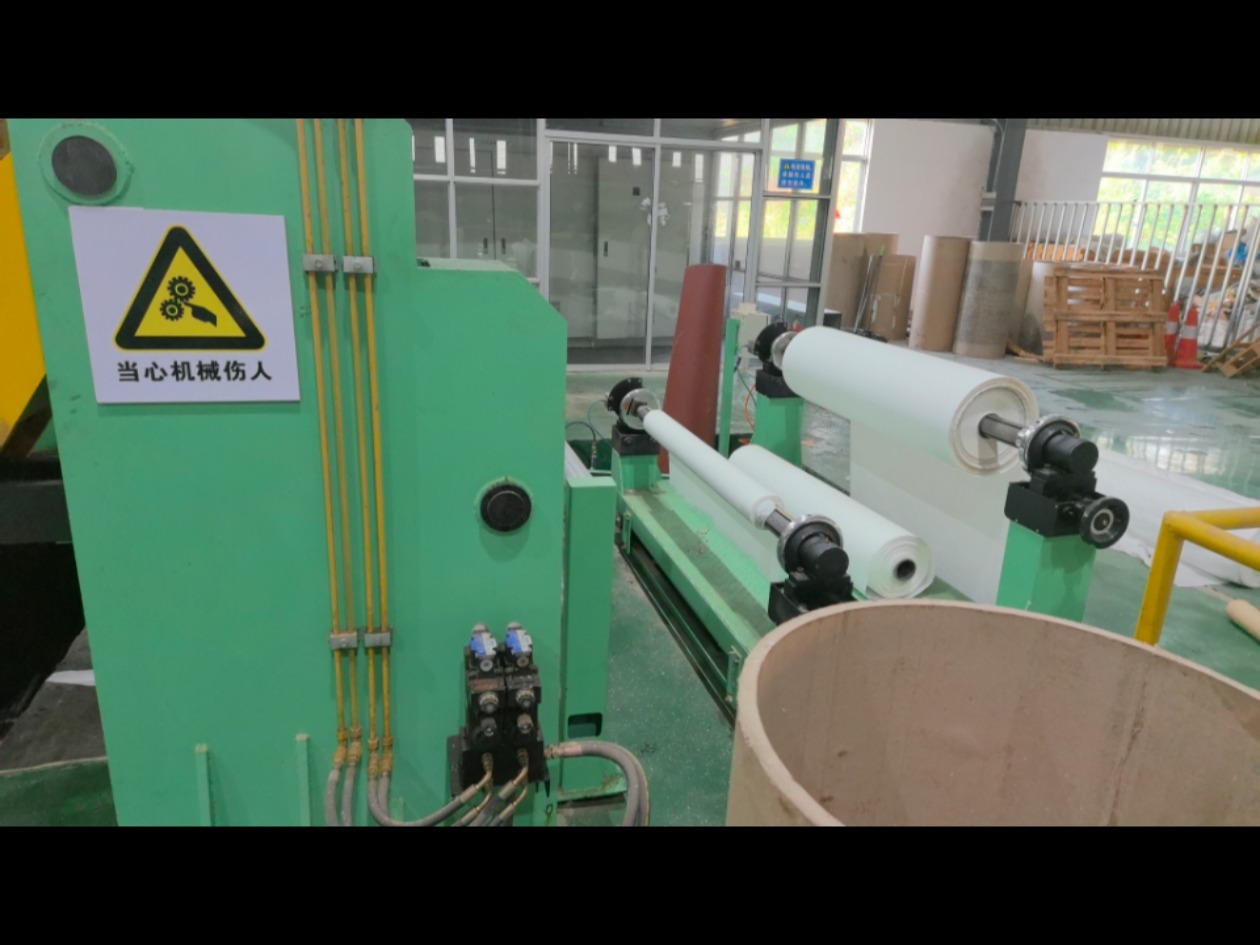

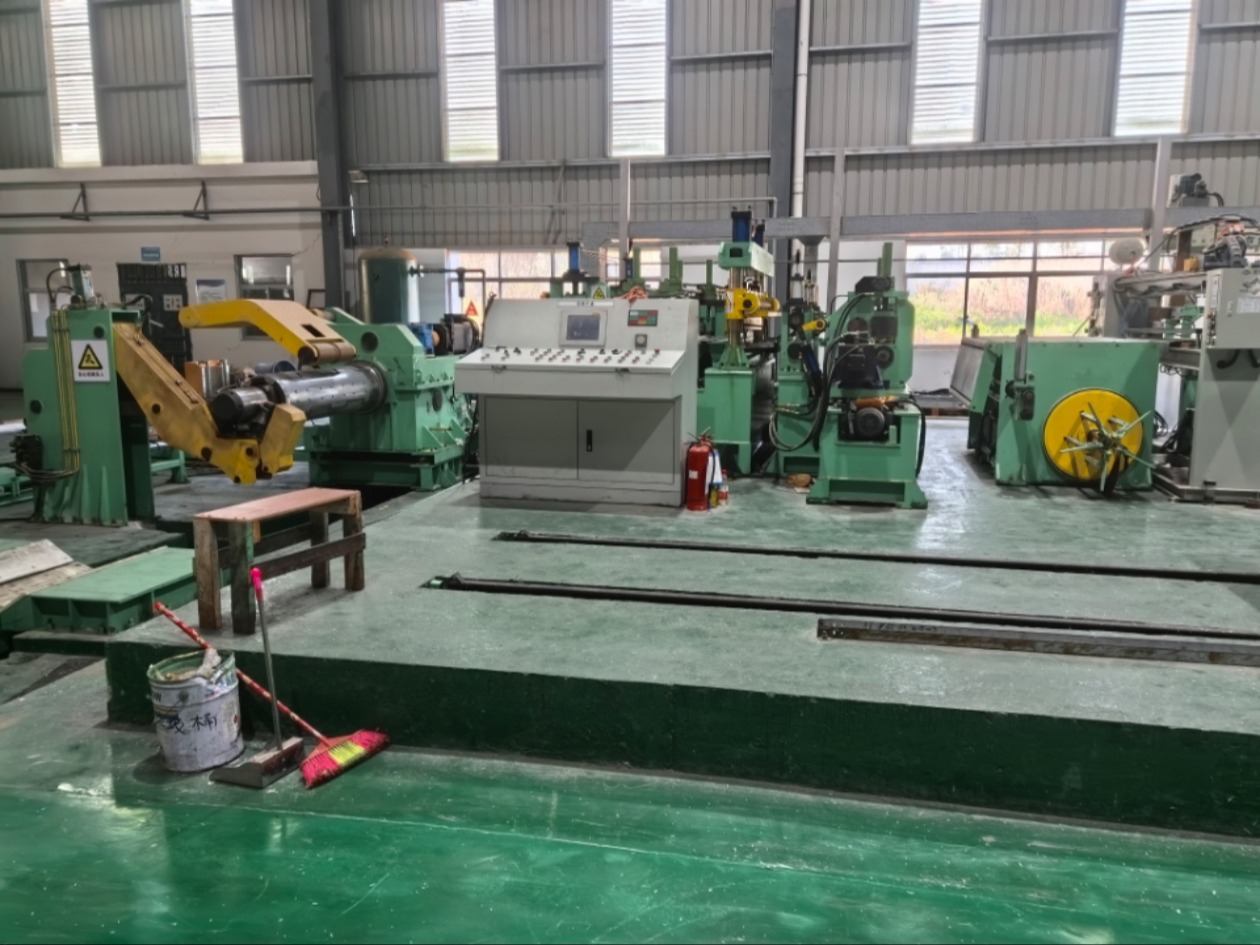

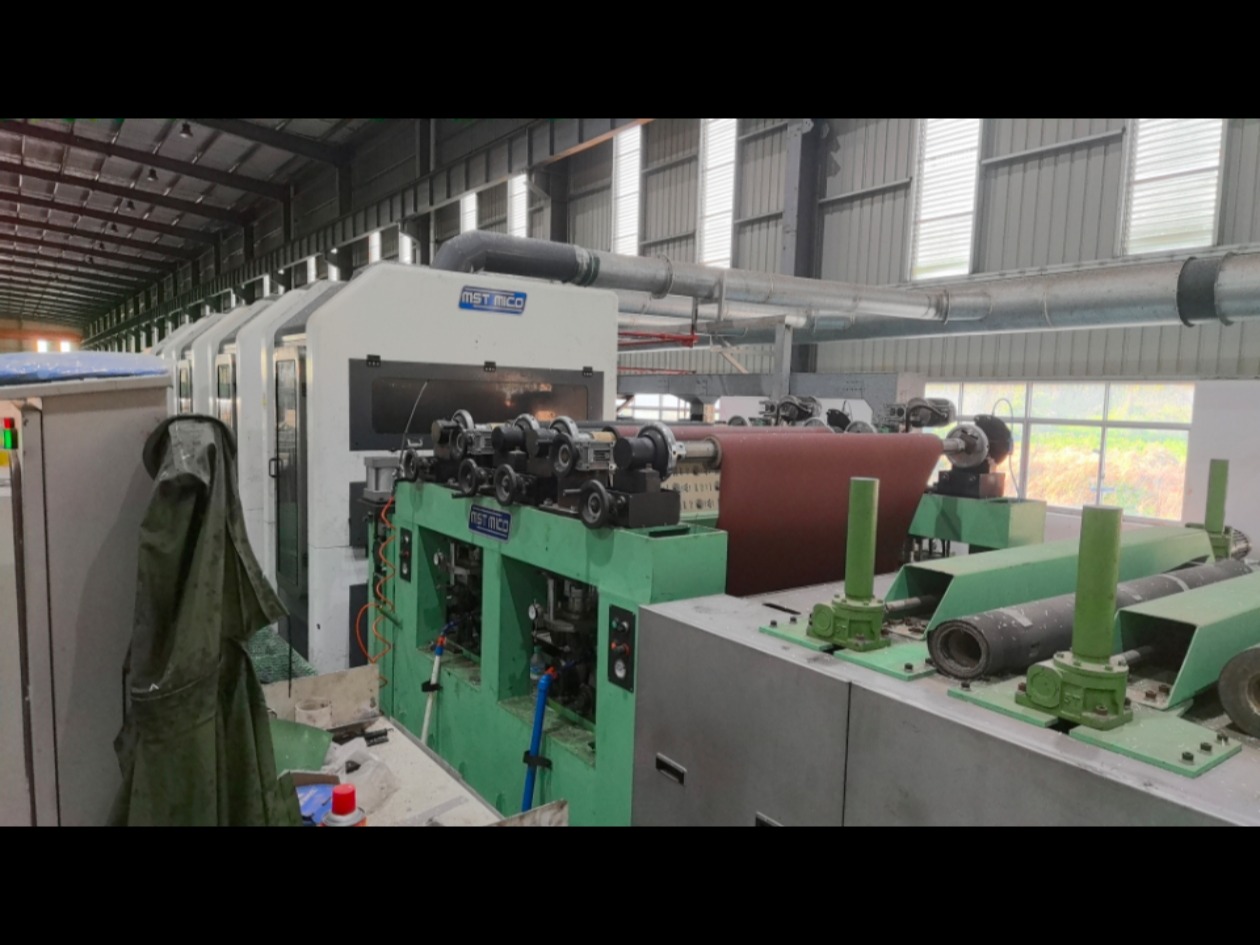

used 1500mm ss polishing machine
used 1500mm ss polishing machine, written on 1/4/2025, stock number 618- product description
- Technical Parameters
Specifications：
1) materials:SUS200,SUS300,SUS400 series stainless steel coil, Cold-rolled stainless steel after Nol surface or bright annealing after annealing and pickling, Volume (2B, BA, and 2D tables)
2) Steel plate thickness:
Steel coil:1.220/1525mm(w)x0.4~3.0(t)mm;
Steel plate: 1.220/1525mm(w)x0.7~3.0(t)mm;
3) Steel plate width: 1220~1520 mm;
4) Steel coil inner diamete: Ф508mm、Ф610mm;
5) Steel coil outer diameter: max Фl,800mm
6) Coil weight: 25,000kG
7) Production line direction:
Steel coil: 0~30 m/min.
Steel plate: 0~15 m/min.
8) Production line direction: left to right
9) Equipment footprint: length 66.211m, width 14.3m, height 4m
10) Power source: AC 380V x 50HZ x 3Ф
11) Total power of the equipment: 850 KW
If you want to quote or further information on this product, please fill out the form below.
