Complete JCO Pipe Mill Technical Specifications

1. Main Equipment Configuration & Capacity:

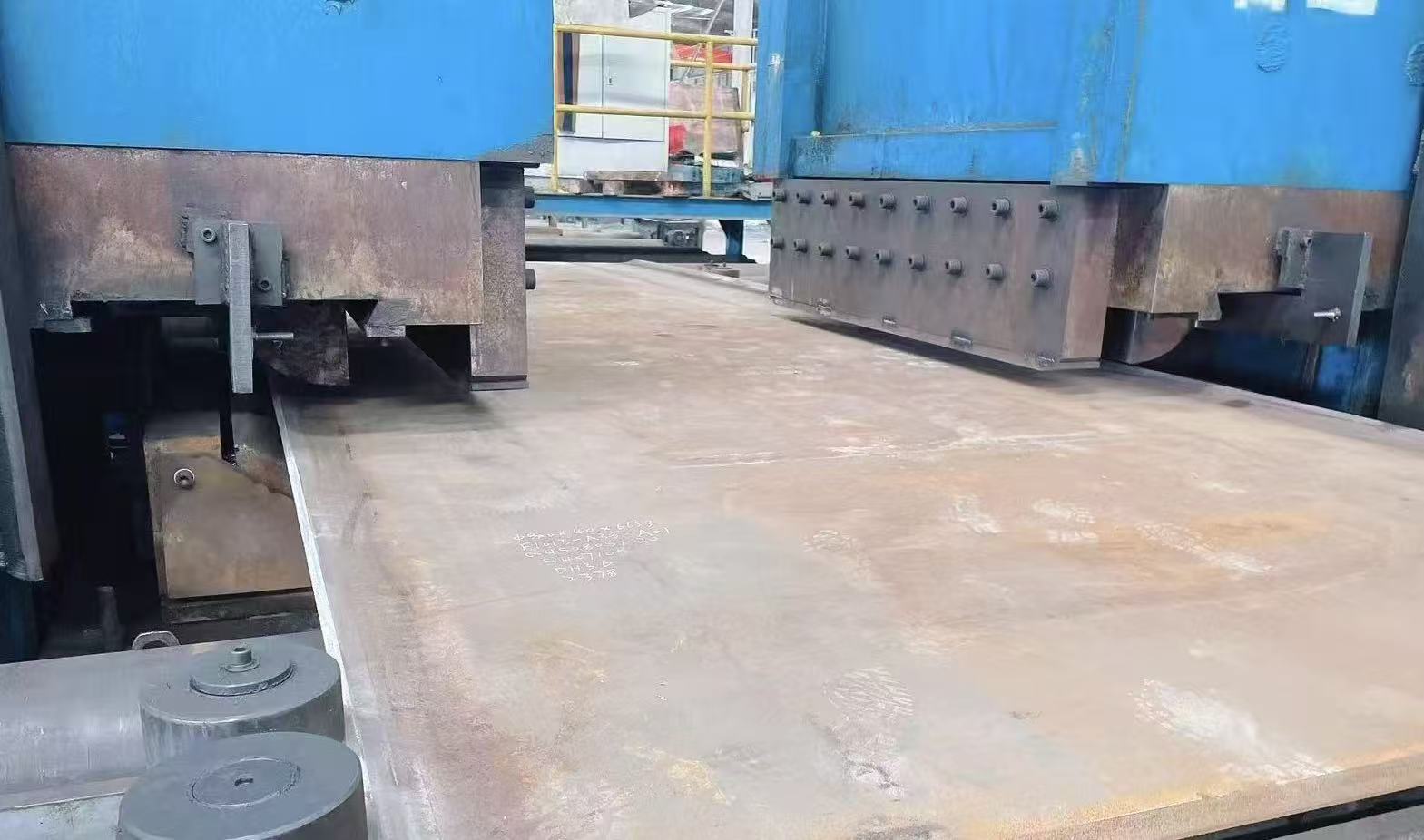

3000-ton Pre-bending Machine

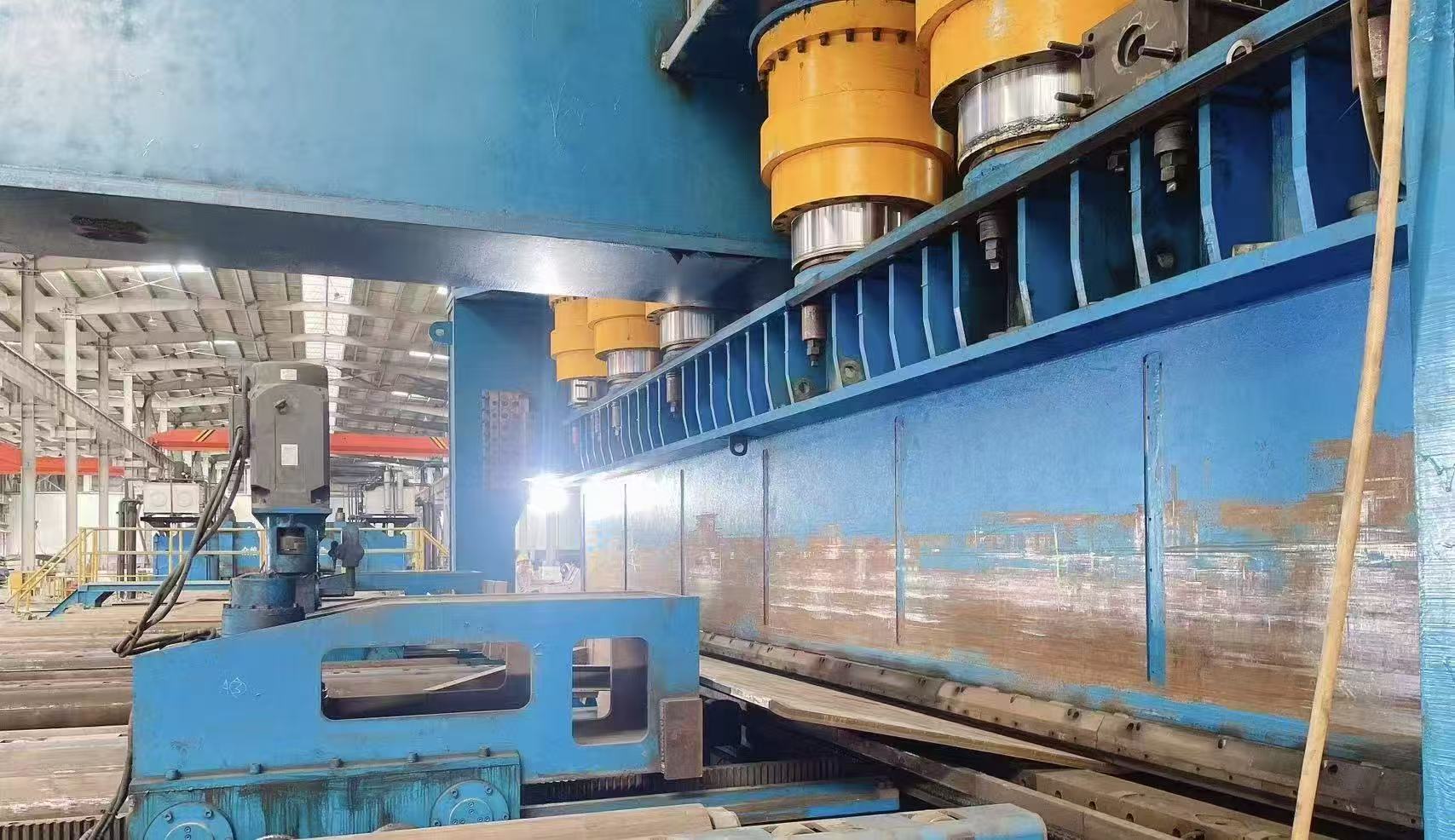

8000-ton (JCO) Forming Press

Closing / Seaming Machine

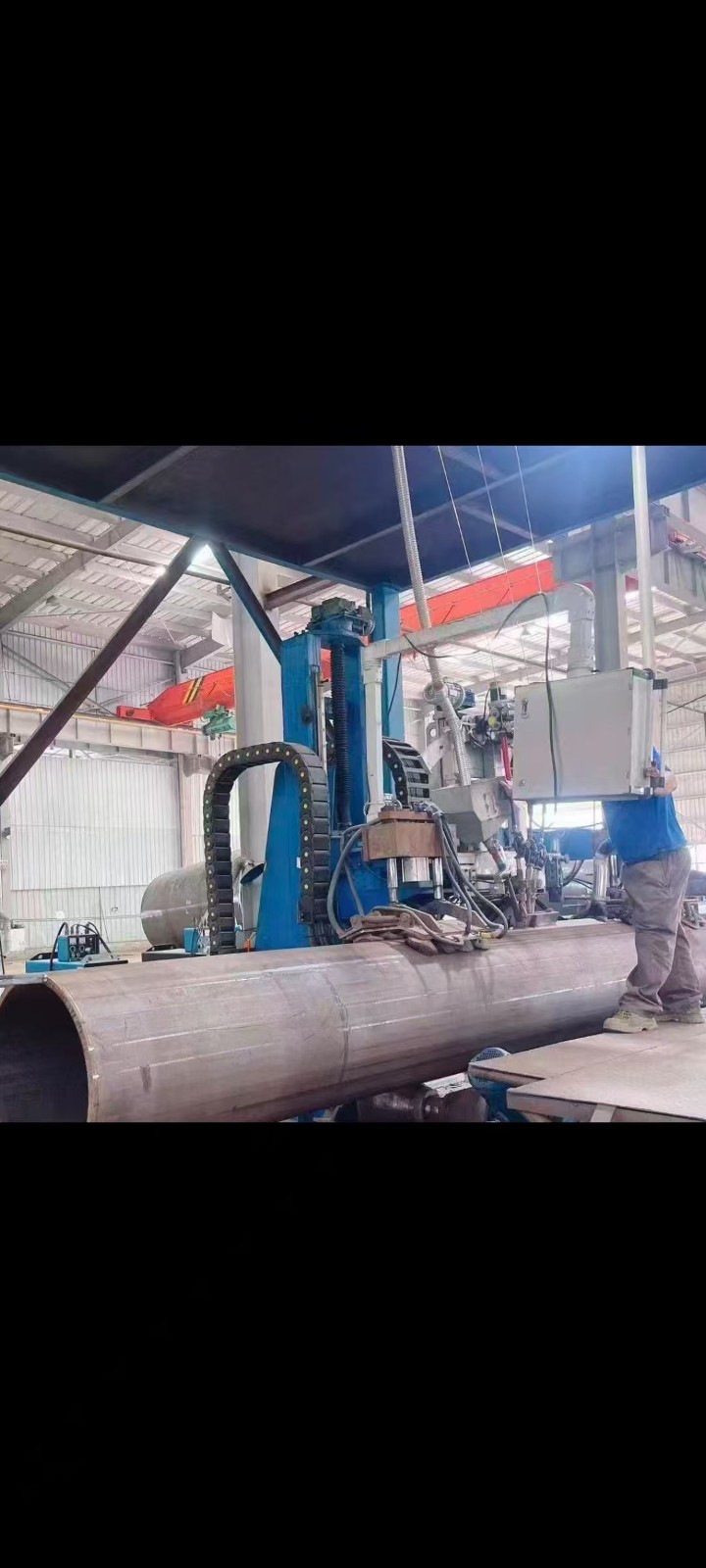

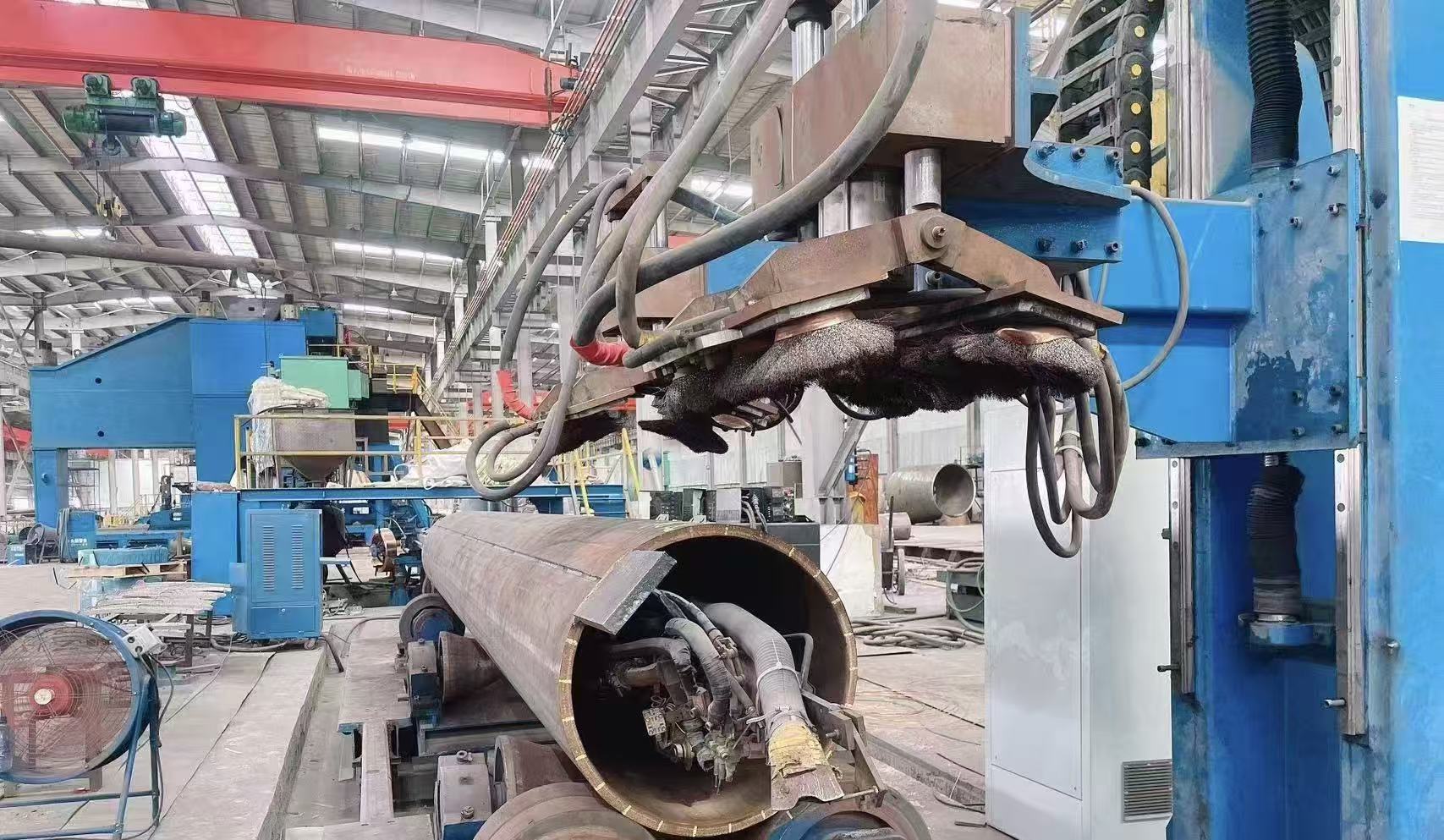

Internal & External Submerged Arc Welding System

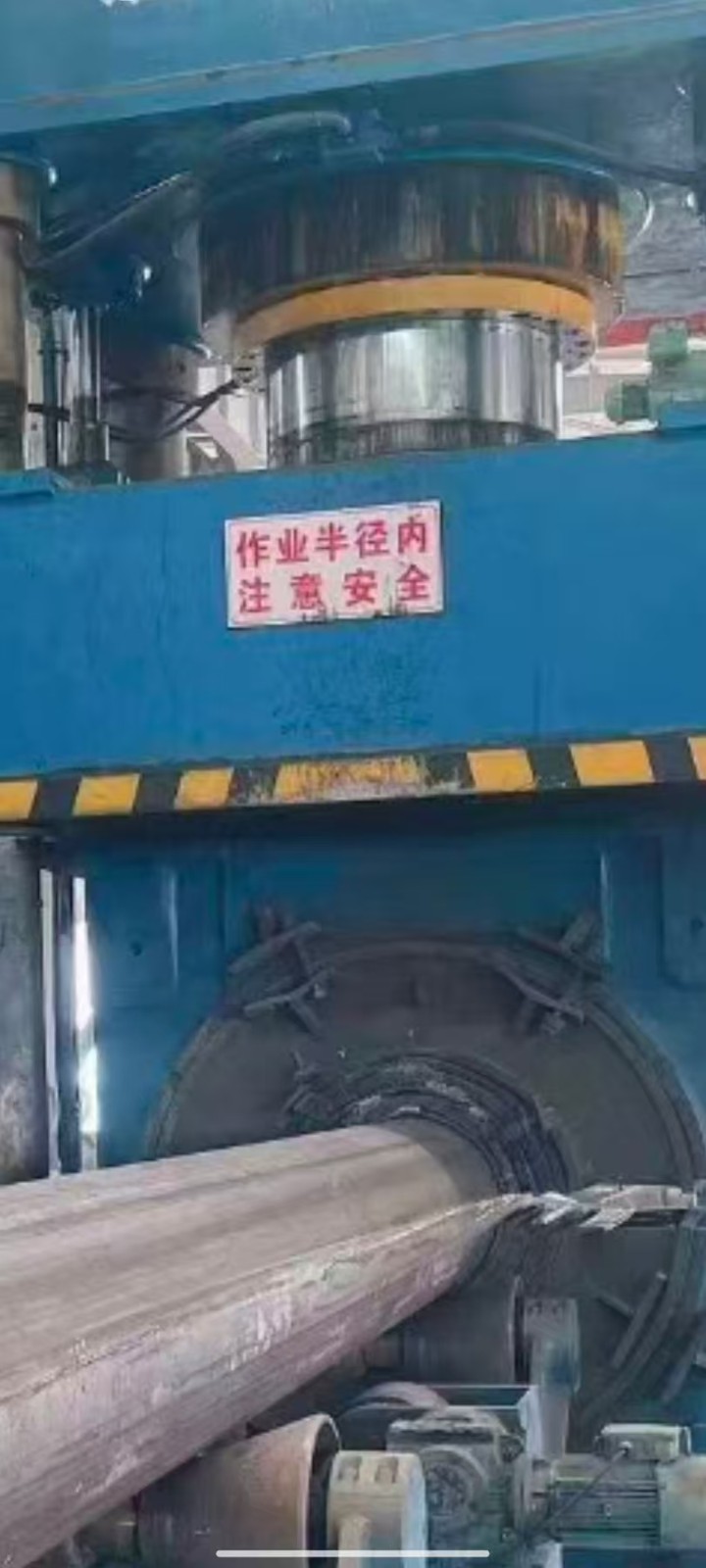

2000-ton Sizing / Calibrating Press

Total Line Weight: Approx. 1,900 tons

2. Current Operational Status:

The line is currently in occasional, intermittent operation. It is not in continuous production but is maintained in a functional state.

3. Product Capability:

Pipe Diameter Range: 450 mm to 1,700 mm

Max Wall Thickness: 65 mm

Standard Pipe Length: 12 meters
