Coil width max 1250mm

Thickness: 0.3-1.0mm

Max speed: 130m/min

Uncoiler max coil weight: 10 t

Recoiler max coil weight: 15t

Coil ID: 508mm

Facing to operation panel, from left to right.

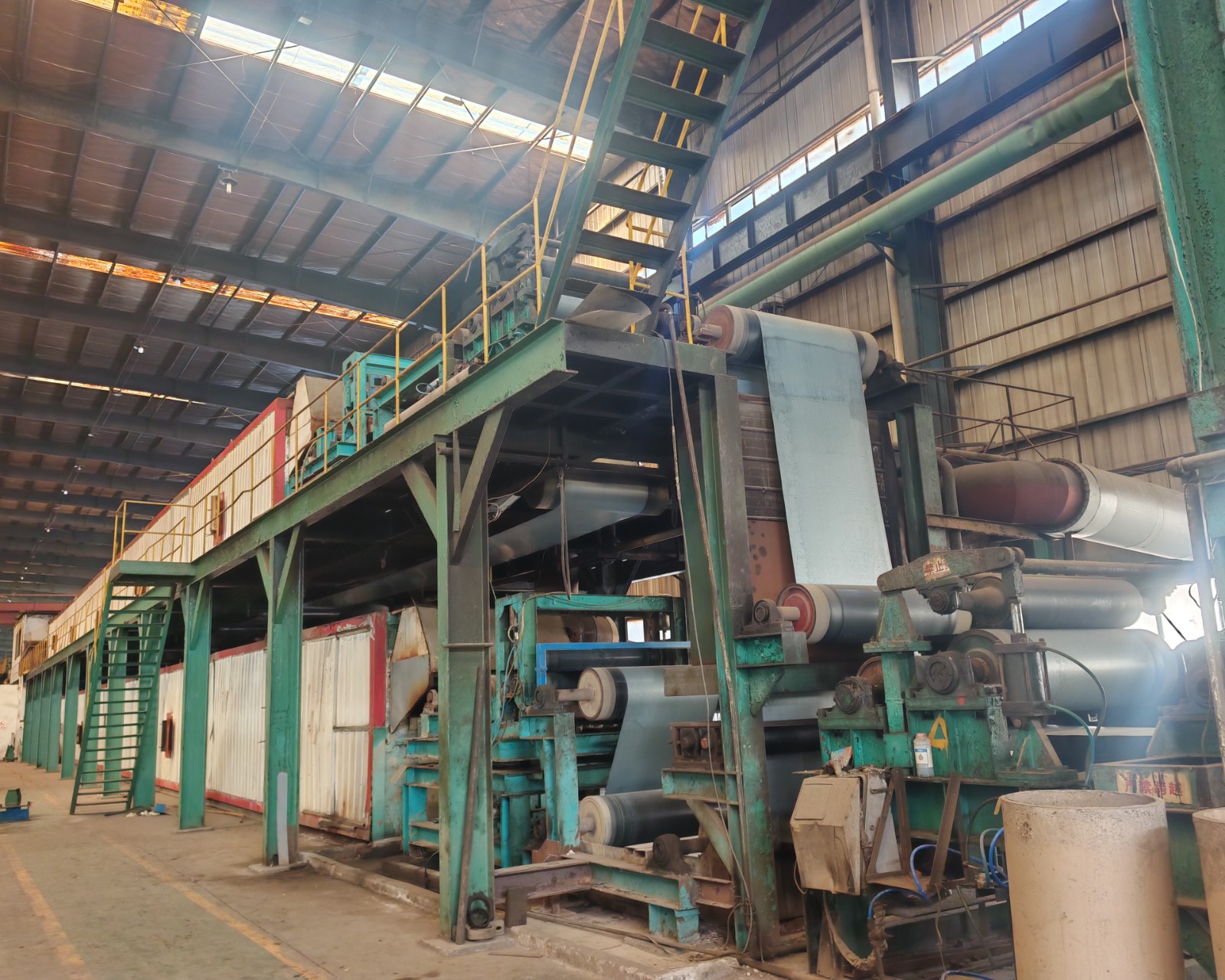

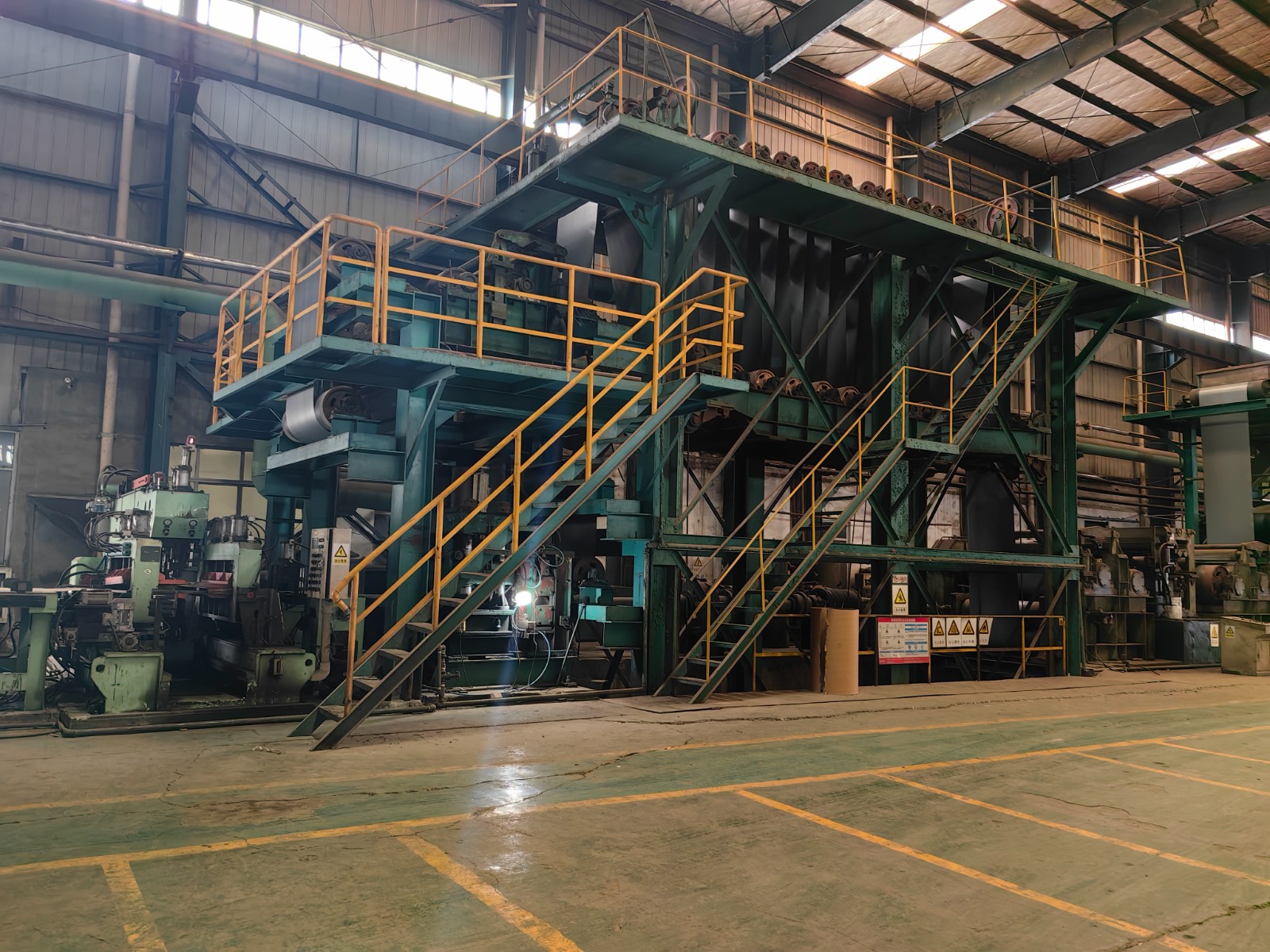

Double uncoiler, shear, stitch welder, shear, vertical accumulator, tension leveler,

3rd floor, cleaning tank, 2nd floor cleaning tank, 1st floor, S rolls, 2nd floor, 1st coating ,

1st curing oven (with 5 centrifugal blowers), S rolls, 1st floor , roof roll feeding from right to left,

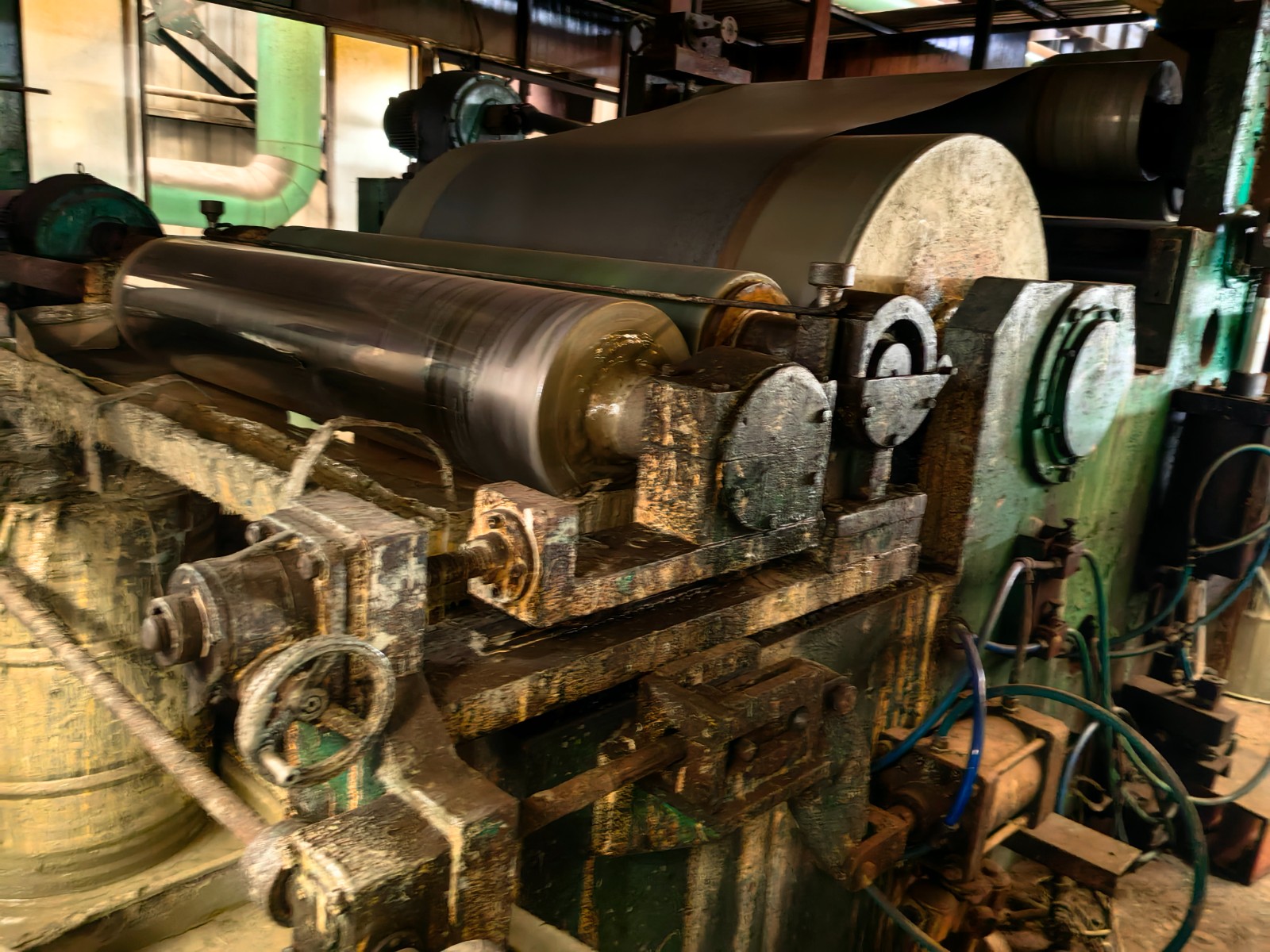

1st floor 2nd coating, 2nd curing oven (with 5 centrifugal blowers), S rolls,

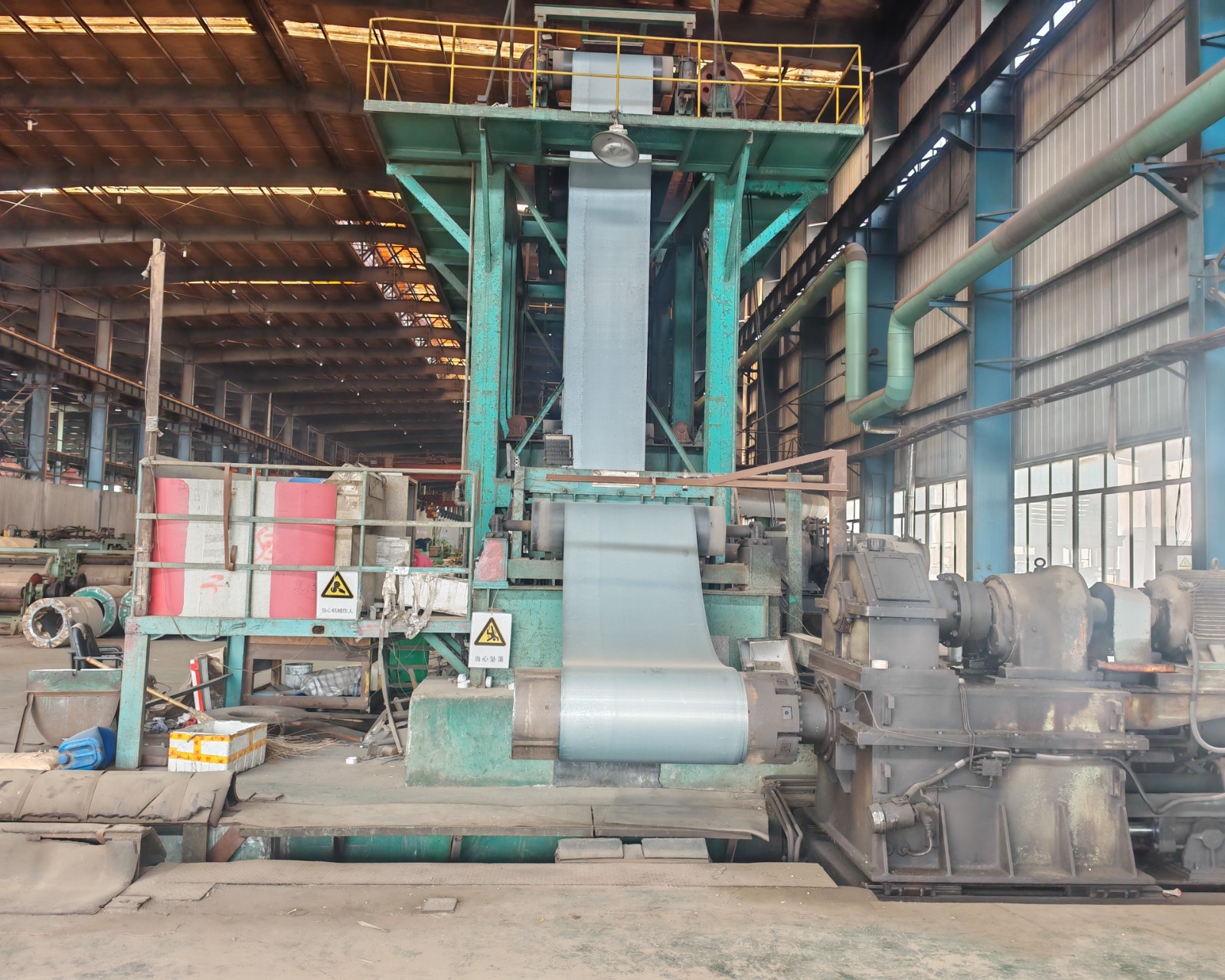

2nd vertical accumulator, shear, one recoiler, coil car, incinerator.

Curing ovens and stitch welder were made in 2016. other machine making date is unknown
